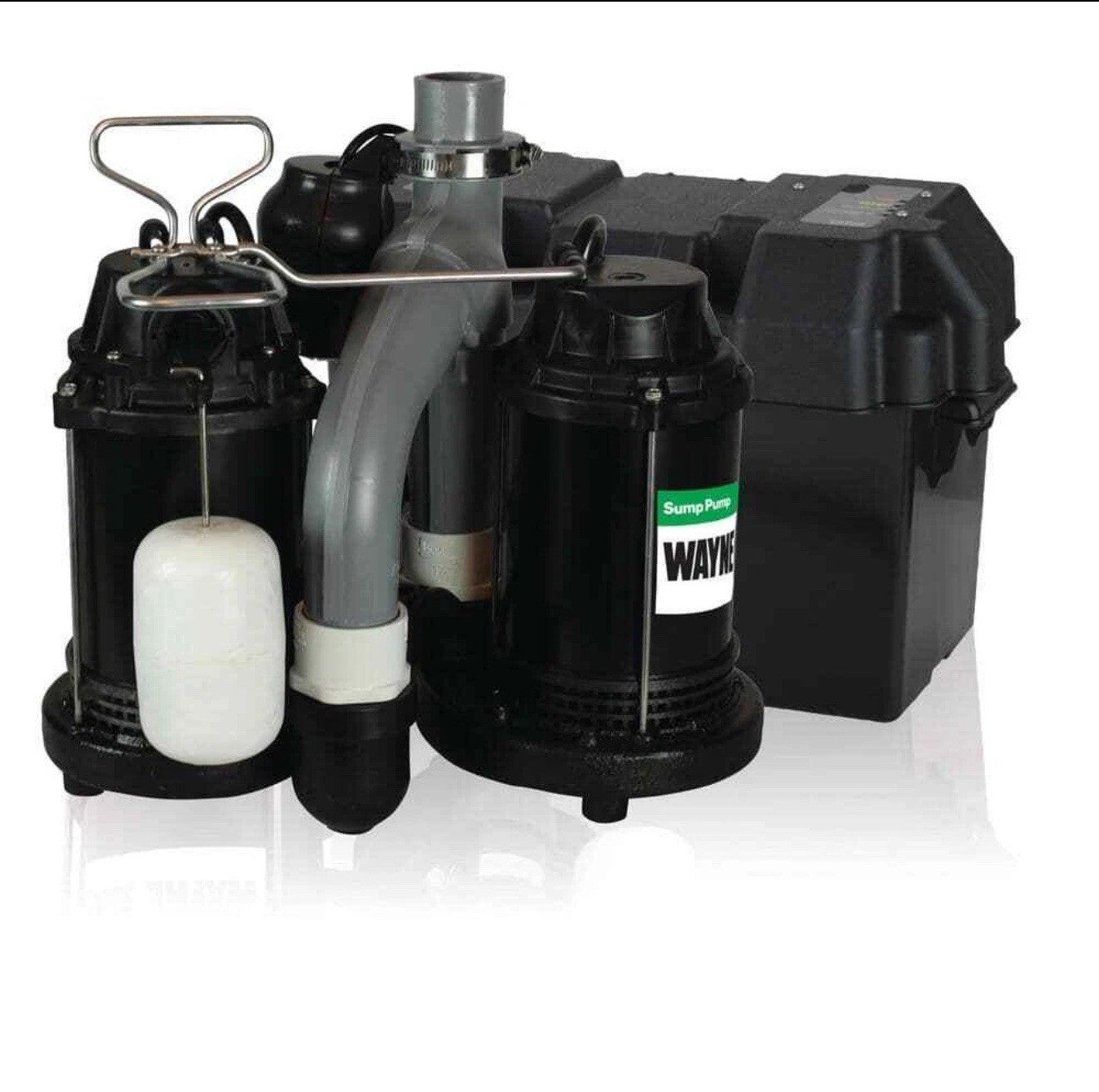

Wayne WSS30Vn - 1/2 HP Combination Primary and Backup Sump Pump System

Opened the box to verify contents. Complete kit, inner boxes hadn’t even been opened.

Wayne Upgraded 1/2 HP Combination Battery Backup System

About This Product

The Wayne 1/2 HP and 12-Volt Upgraded WSS30V includes an all new back-up pump with an even more rugged construction. Drop in ready and easy install within about 15 minutes. The WSS30V provides additional protection and peace of mind when the power is out. Including an audible alarm, rest assured that you'll be notified as soon as the back up pump on the WSS30V turns on. Battery Sold Separately.

Highlights

New Wayne WSS30V combination system includes an upgraded epoxy-steel body and cast iron base back up pump, no more plastic

1/2 HP primary pump moves up to 5100 GPH at 0 in. of head

Upgraded 12V DC back up pump moves up to 2700 GPH at 0 feet of head

Protects your basement with hours of pump power when the electricity goes out

Primary pump delivers unsurpassed protection, the switch is tested 1 million times, up to 10x more than competitors

Assembled in the USA, performance that lasts for years

Easy install in about 15 minutes

Wayne WSB1275 75 AMP hour battery recommended

Minimum recommendations: 15 in. tapered pit, or 16 in. with no taper or draft, base of pump measures 14.875 in. from the widest point across

Battery Sold Separately

Dimensions

Product Depth (in.)

23.5 in

Product Height (in.)

14 in

Product Width (in.)

18.25 in

Specifications

Amperage (A)

75 A

Battery Life (hours)

6 hr

Battery Type Required

12-volt,Battery Not Included

Discharge Flow @ 0 ft. (gallons/hour)

5100

Discharge Flow @ 0 ft. (gallons/min)

85

Discharge Flow @ 10 ft. (gallons/hour)

3840

Discharge Flow @ 10 ft. (gallons/min)

64

Housing Material

Steel

Impeller Material

Thermoplastic

Included

Control Box

Number of Batteries Required

1

Pack Size

1

Product Weight (lb.)

30 lb

Voltage

120v,12v
