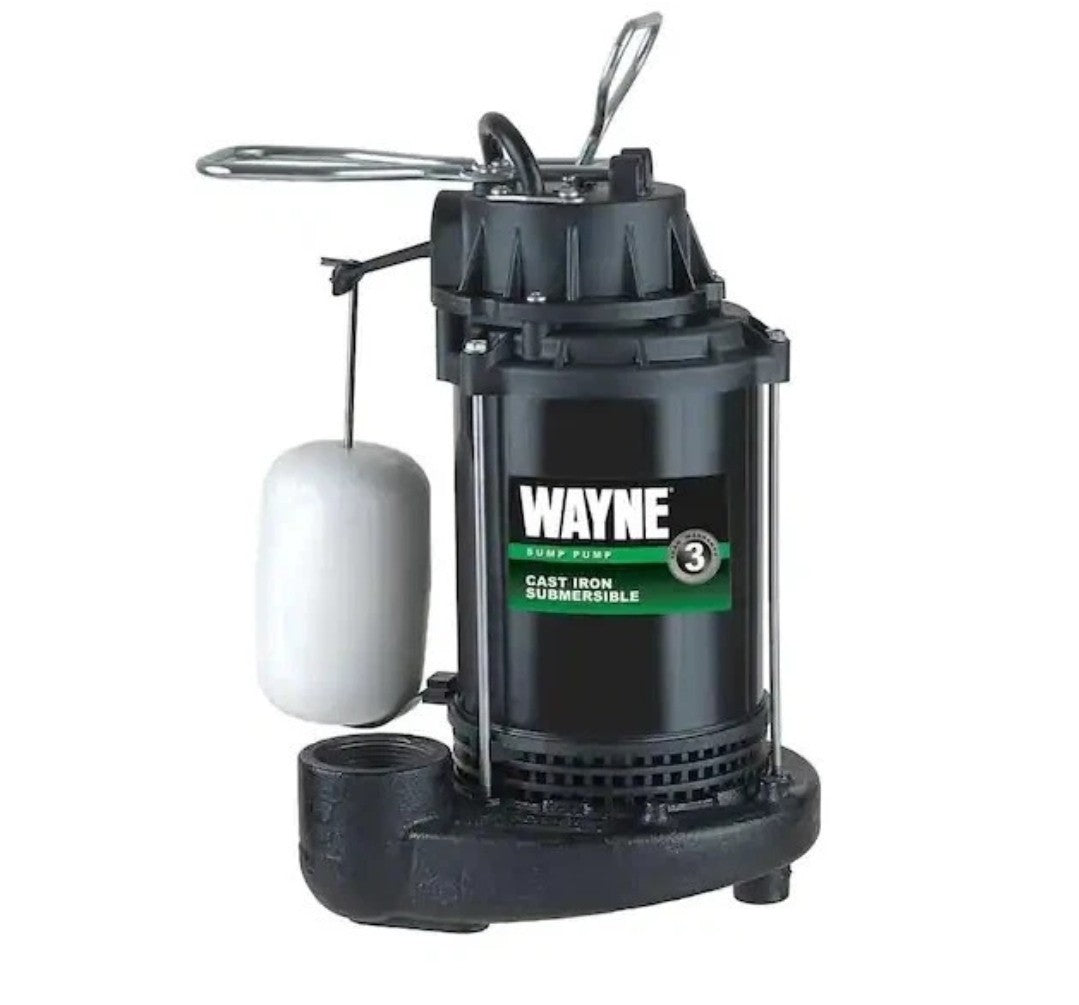

Wayne 1/2 HP Cast Iron Submersible Sump Pump with Vertical Float Switch NEW OPEN

Wayne 1/2 HP Cast Iron Submersible Sump Pump with Vertical Float Switch NEW OPEN BOX

About This Product

Wayne's CDU800 features a durable cast iron base and epoxy-coated housing for long life and quiet operation. This submersible pump is designed for small sump pits, as small as 11 in. , the CDU series is one of the most popular replacement sump pumps in America. The ceramic mechanical seal assures long life in the most demanding applications and the 1-1/2 in. discharge allows easy installation. This powerful 1/2 HP sump, pumps up to 5100 GPH.

Highlights

• Submersible cast iron and coated steel sump pump with vertical float switch

• Top suction pump design eliminates air locks and clogging from debris in bottom of sump pit

• Epoxy-coated steel motor housing and rugged, cast iron pump base

• Fully submersible

• 1/2 HP; max. flow rate is 5100 GPH; 3840 GPH at 10 ft. of discharge lift

• 1-1/2 in. NPT discharge

• For use in 11 in. Dia or larger sump basins; 9 in. on level and 4 in. off level

• Assembled in the U.S.A.

Dimensions

Product Depth (in.)10 inProduct Height (in.)14 inProduct Width (in.)10 inSwitch-Off Height (in.)4Switch-On Height (in.)9

Specifications

Amperage (A)3.8 ACord Length (ft.)8Discharge Flow @ 0 ft. (gallons/hour)5100Discharge Flow @ 0 ft. (gallons/min)85Discharge Flow @ 10 ft. (gallons/hour)3840Discharge Flow @ 10 ft. (gallons/min)64Discharge Flow @ 15 ft. (gallons/min)51Housing MaterialSteelImpeller MaterialPlasticMaximum Horsepower (hp)1/2Maximum Pressure (PSI)11.03896104Maximum Working Temperature (F)120Minimum Sump Basin Diameter11 to 14Minimum working temperature (F)40Outlet Diameter Connection (in.)1-1/2 FPTPack Size1Product Weight (lb.)18.5 lbPump Switch TypeVerticalVertical Lift (ft.)10Voltage120v
