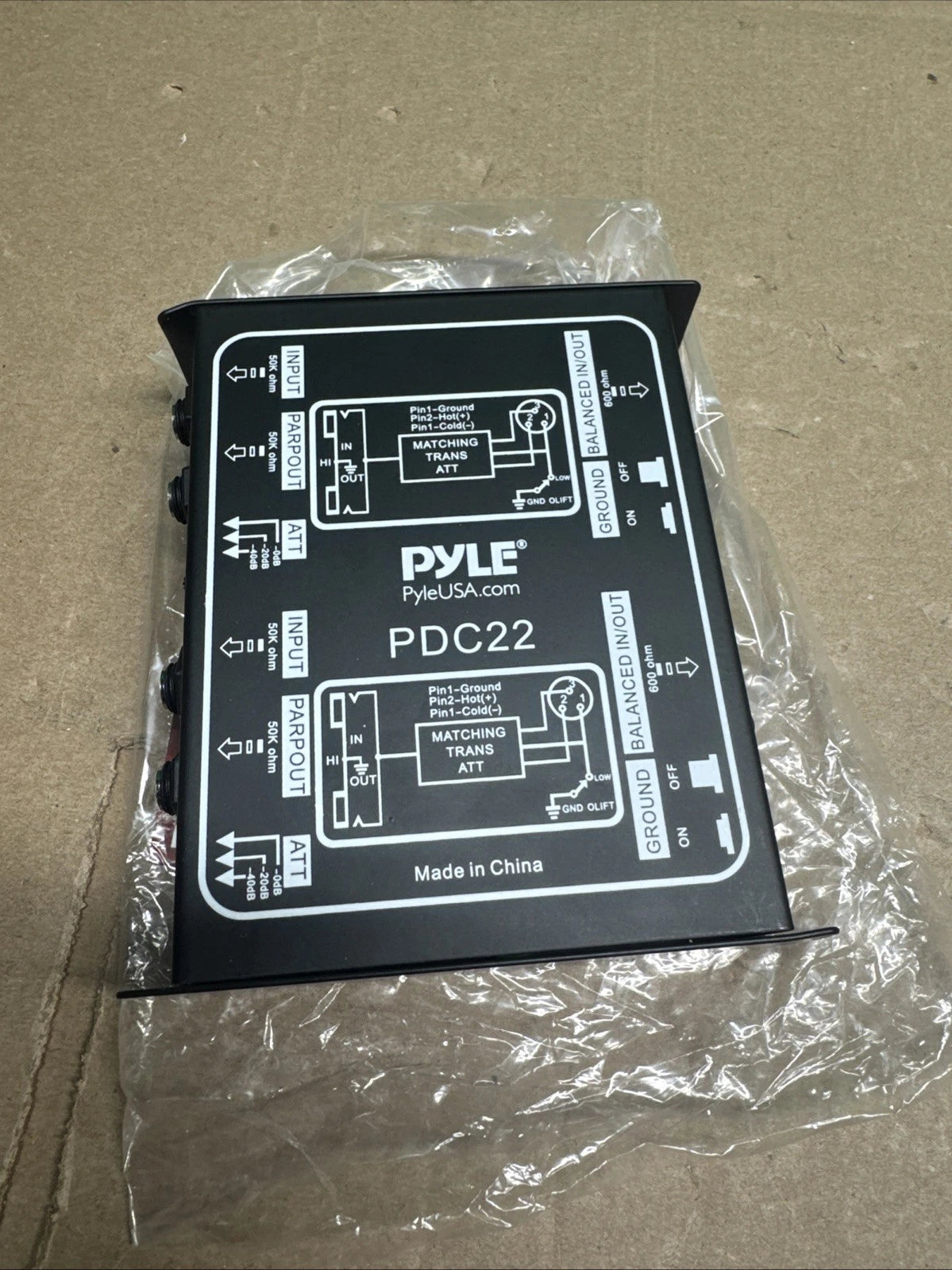

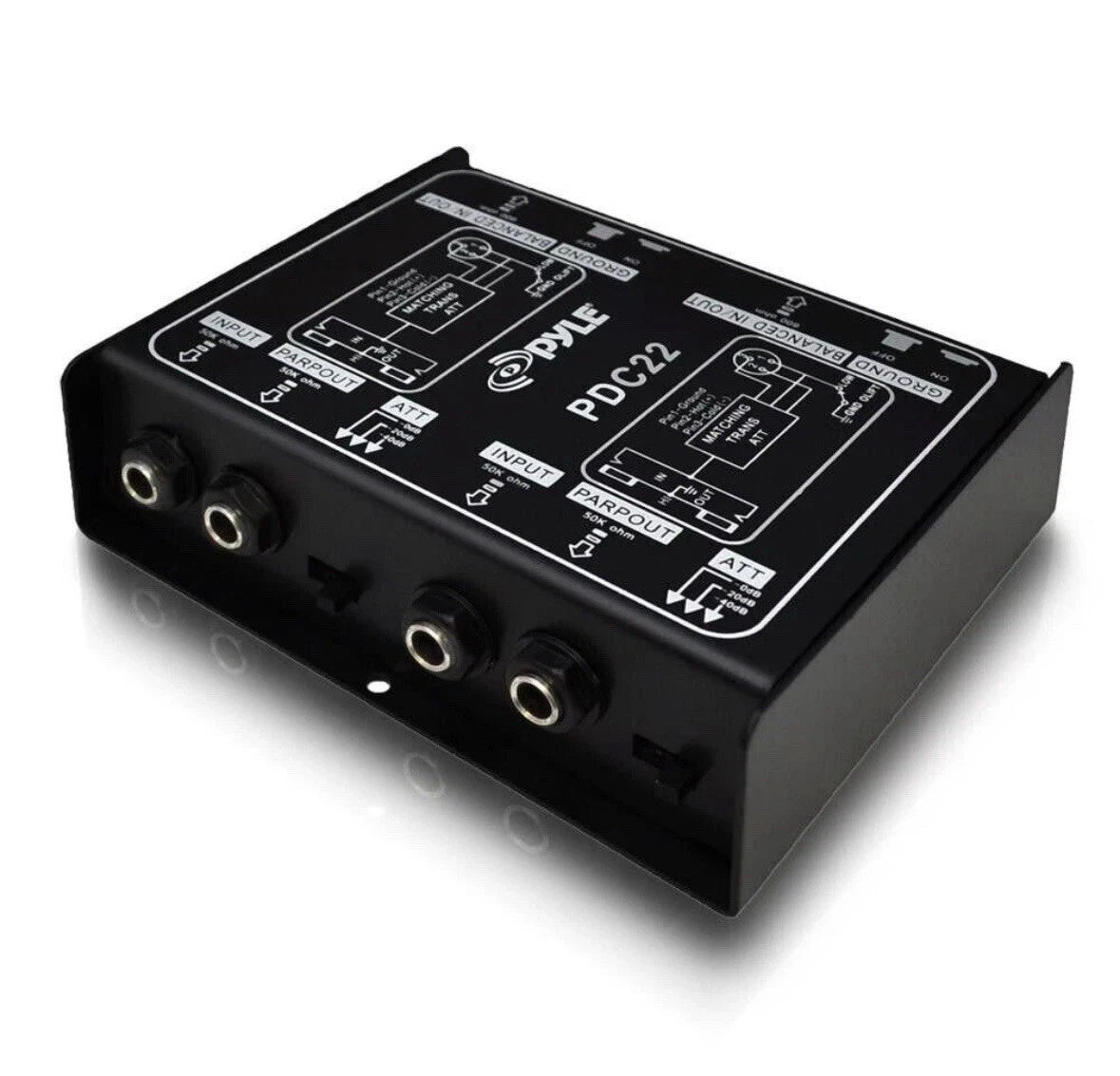

Pyle-Pro Easy to Use 1/4'' Instrument To Balanced Unbalanced (1/4''/XLR) Direct

Pyle-Pro Easy to Use 1/4'' Instrument To Balanced Unbalanced (1/4''/XLR) Direct


Features:


Two High-Quality Direct Boxes In One Convenient Enclosure

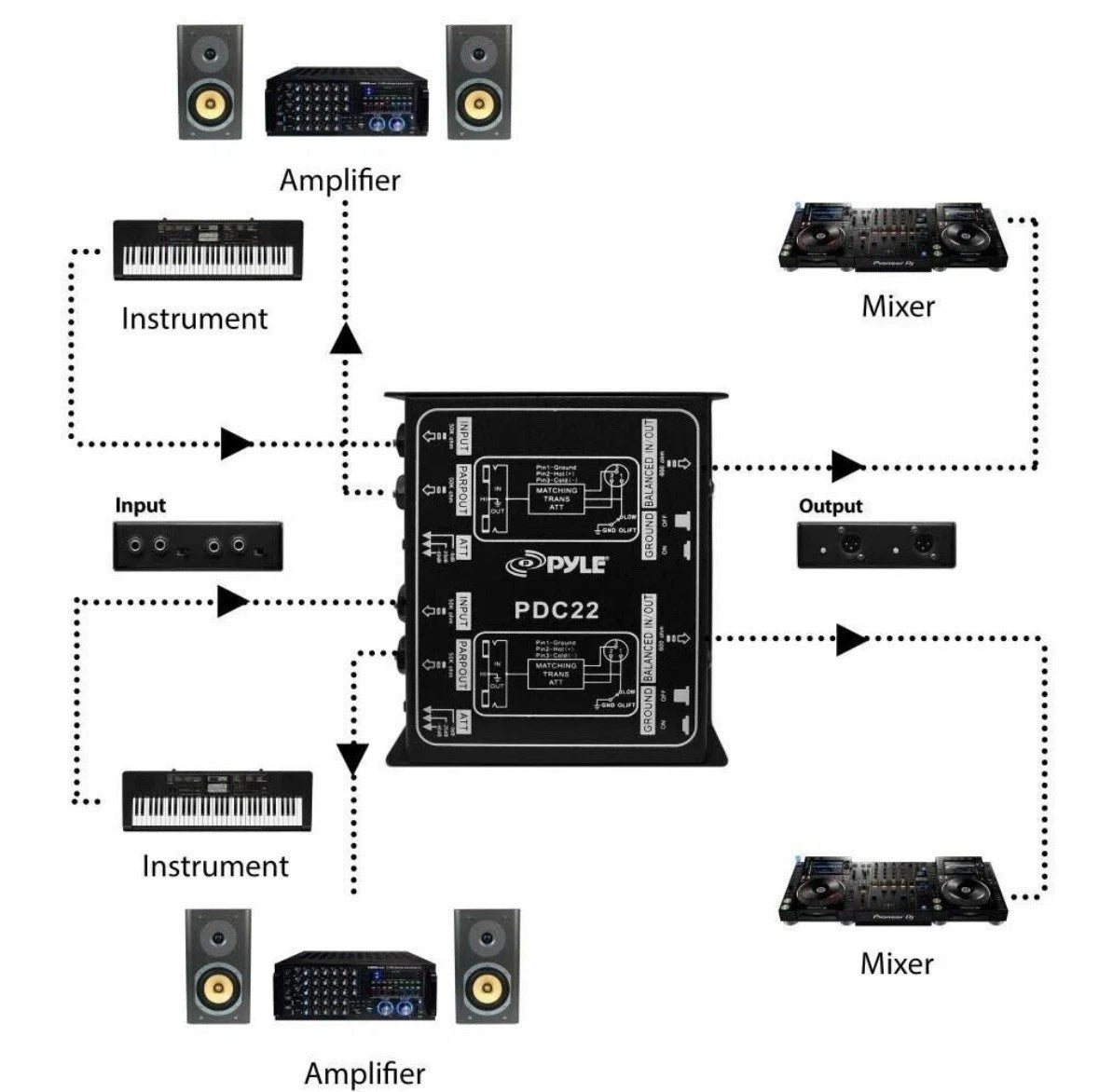

Enables to Tap Off the Signals from Amplifiers such as Guitar or Power Amplifier


Provides the Facility for the Direct Insertion of an Audio Signal into Mixer or Recorder


1/4 Device Connector


Ultra-low Noise and Distortion


Connects All Kinds of Audio Signals like Guitars, Keyboards, etc.


Suitable for Outboard Signal Processors & High-Powered Speaker


Enables to Tap Off the Signals w/out Affecting the Original Sounds


Useful for Connecting Unbalanced Signals from Sources like Signals DJ and Sub Mixers


Provides a Clean Signal at a Low Level


Plug-in Guitar Directly into the PA System


Easy to Use Passive Electronic Device


Controls Hum and Buzz from Stage with the Ground Lift


Heavy Duty 14 Gauge Steel Construction


Bi-Directional Impedance Matching




What's In The Box:


Premium Direct Injection Audio Box




Technical Specs:


Frequency Response: 5-35 KHz, -3dB


Noise Level: -104dBu


THD: 0.013%


Input Impedance: 50K Ohm


Max.Input Level: +8.1 dBu (9V Batt), +11.3 dBu (48V Phantom)

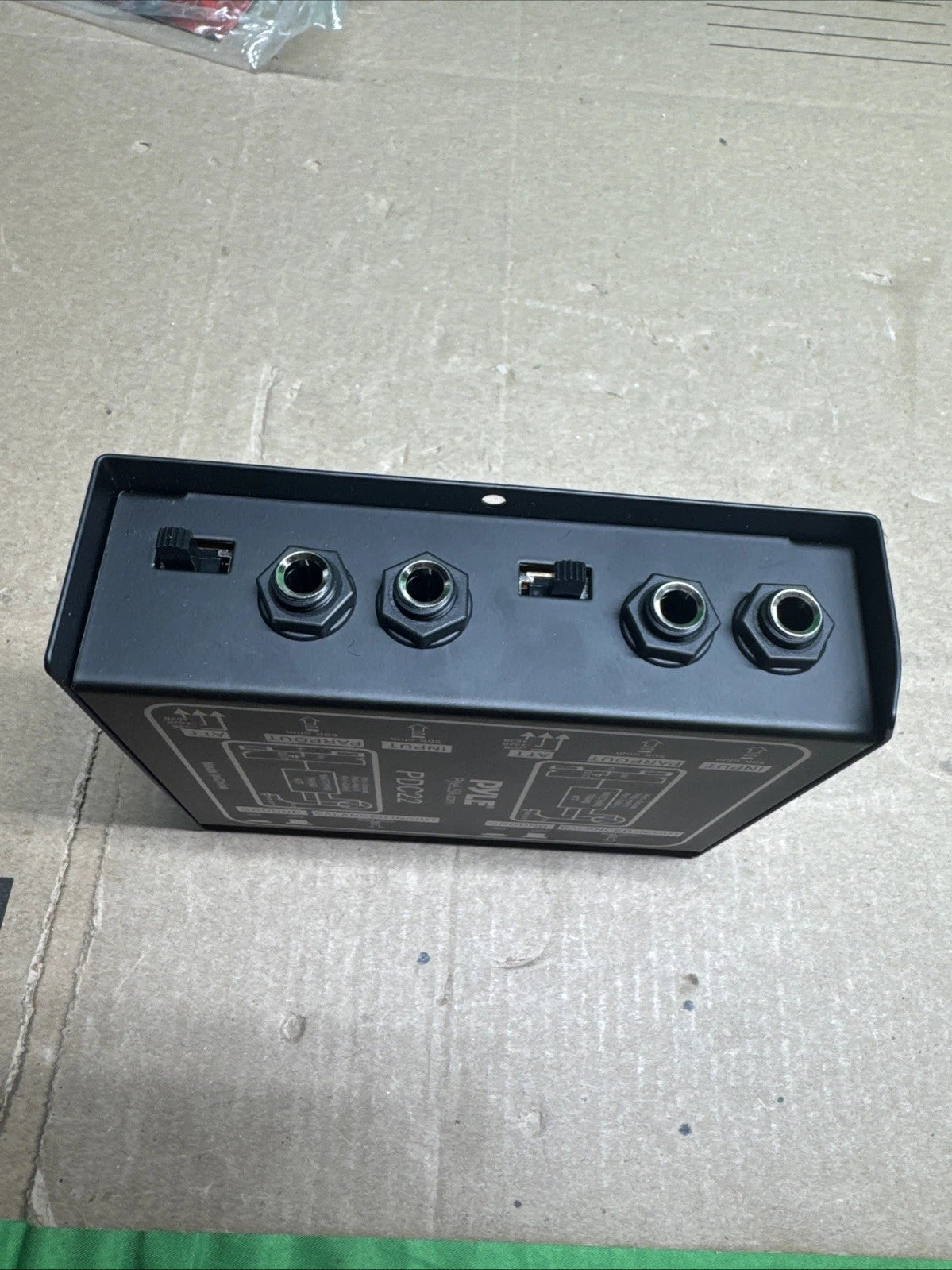

Instrument Input: 1/4'' Phone Jack, unbalanced


Parallel (link) Out: 1/4'' Phone Jack, unbalanced

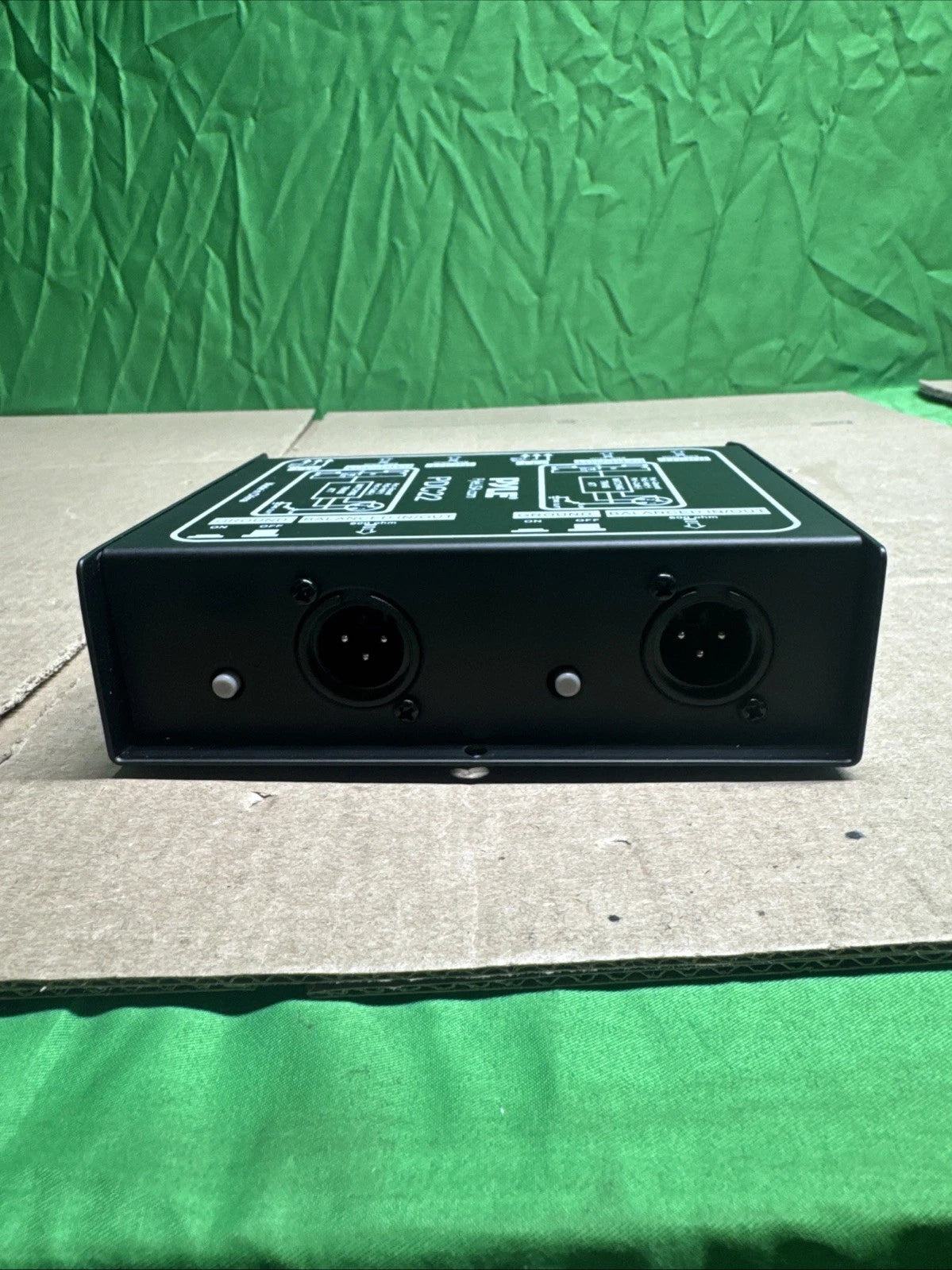

Balanced Output: XLR Connector, balanced


Ground Lift: Switch-Able Ground Lift


Input Attenuation: Switch-Able (0db, -20db,-40db)


Construction Material: All Steel Chassis


Product Dimensions: 5.51'' x 4.72'' x 1.57'' -inches


Sold as: Unit


Weight: 1.26 lbs.
