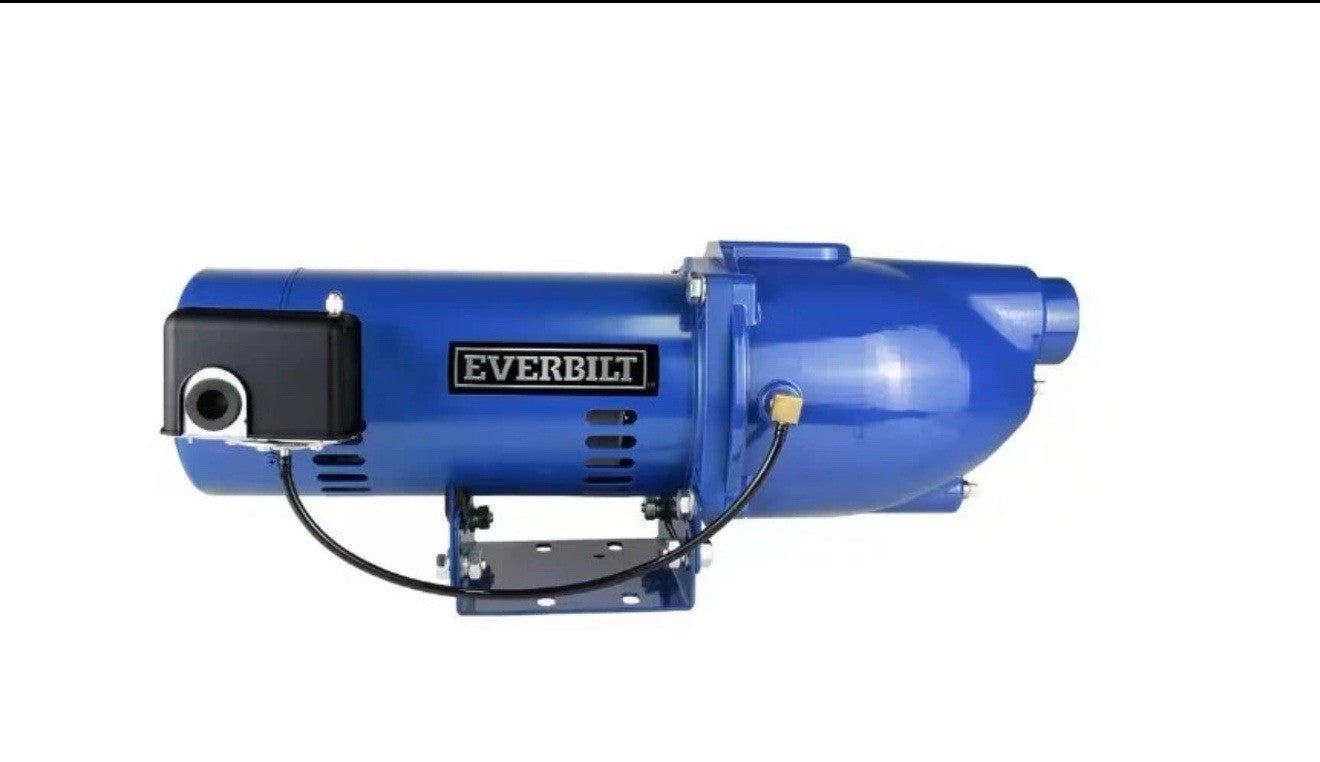

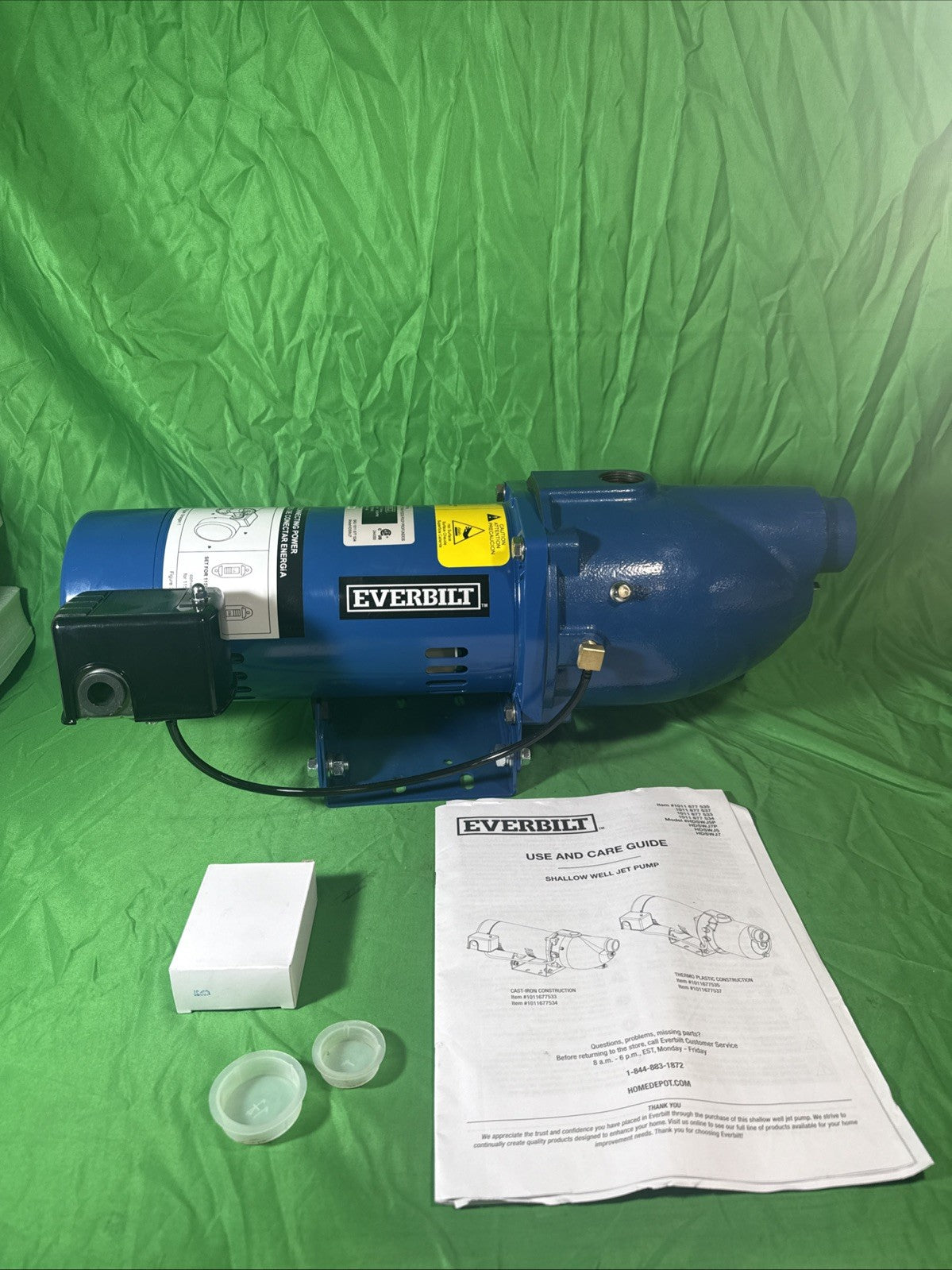

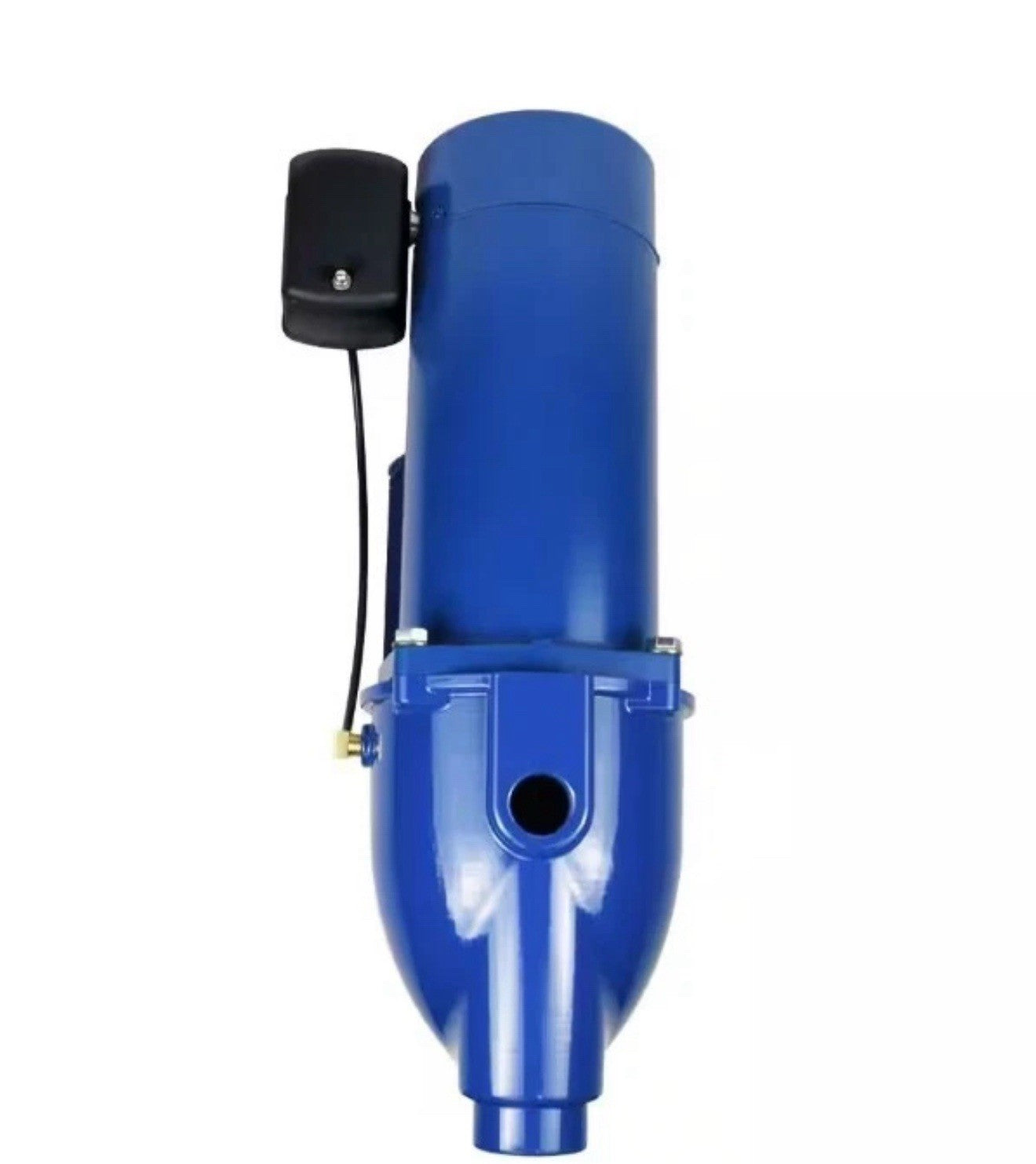

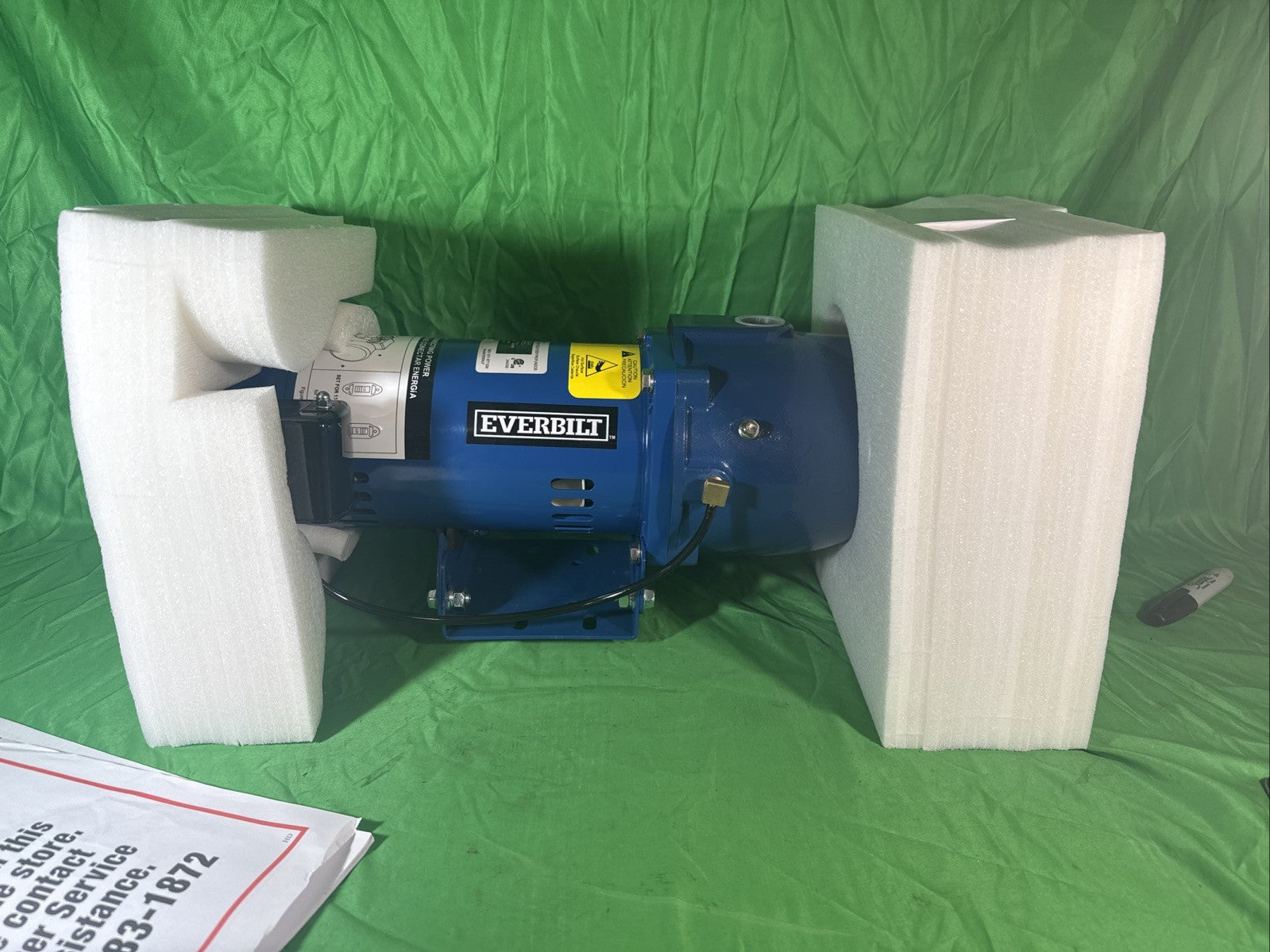

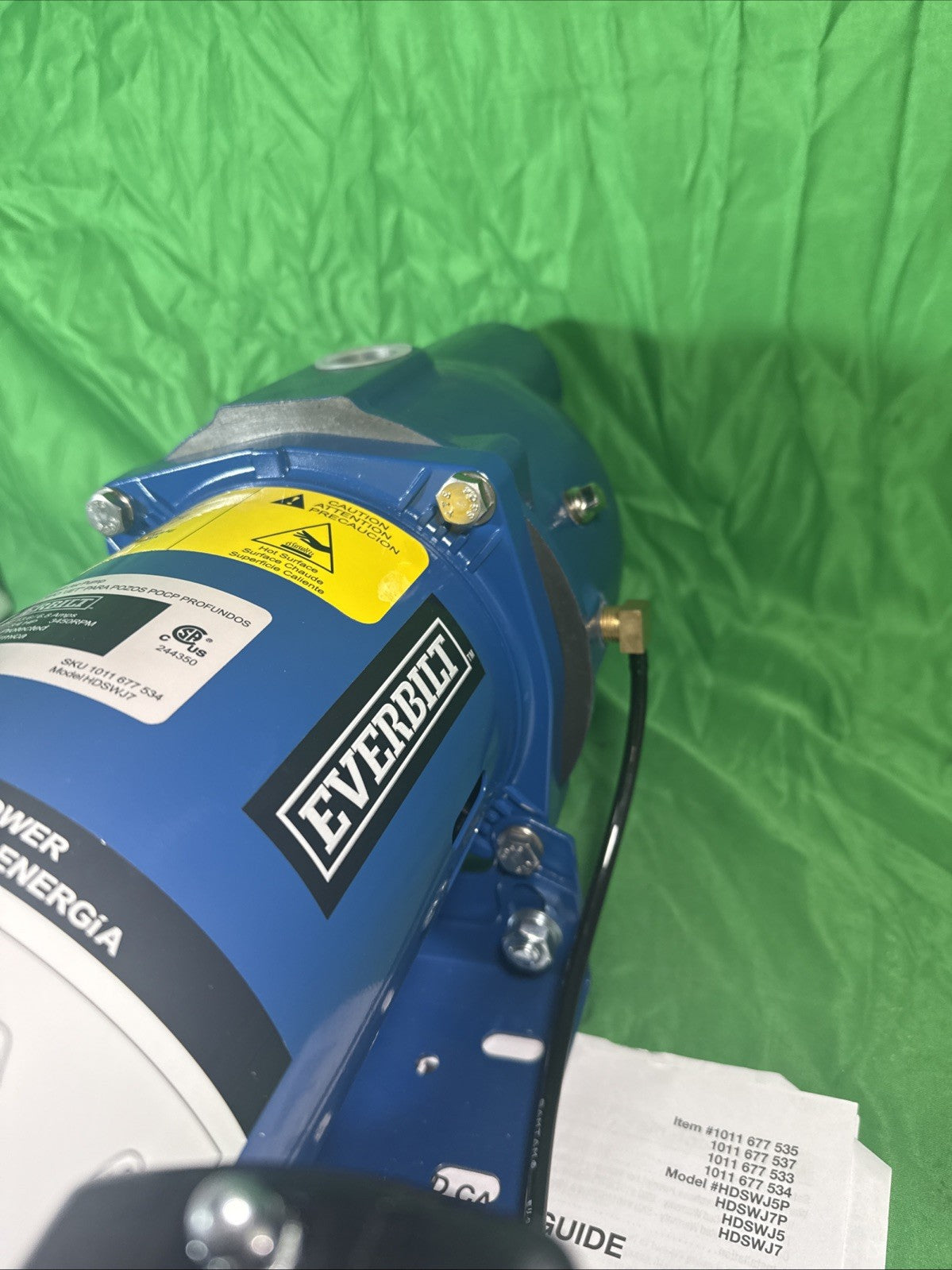

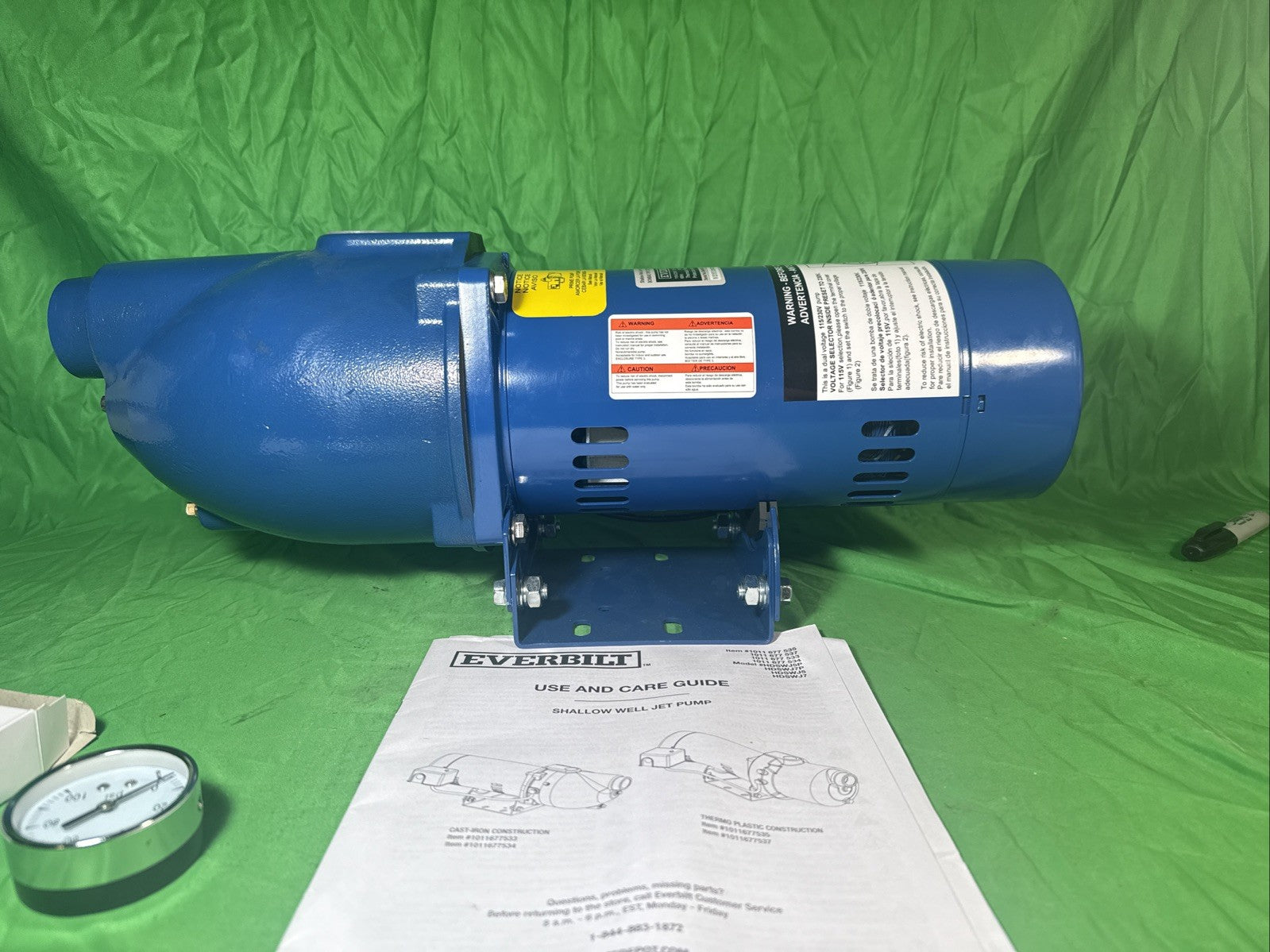

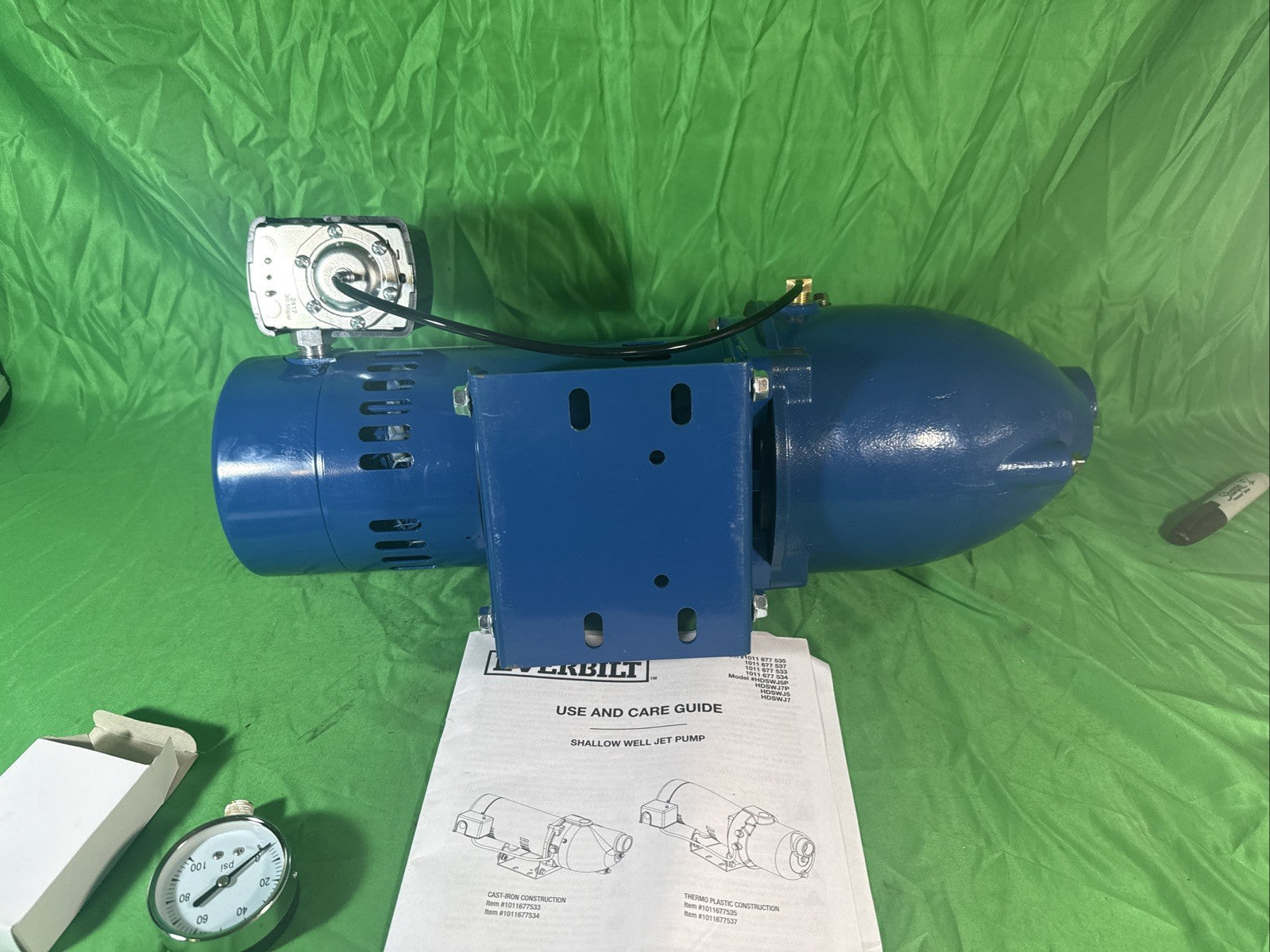

Everbilt 3/4 HP Cast Iron Shallow Well Jet Pump
HDSWJ7

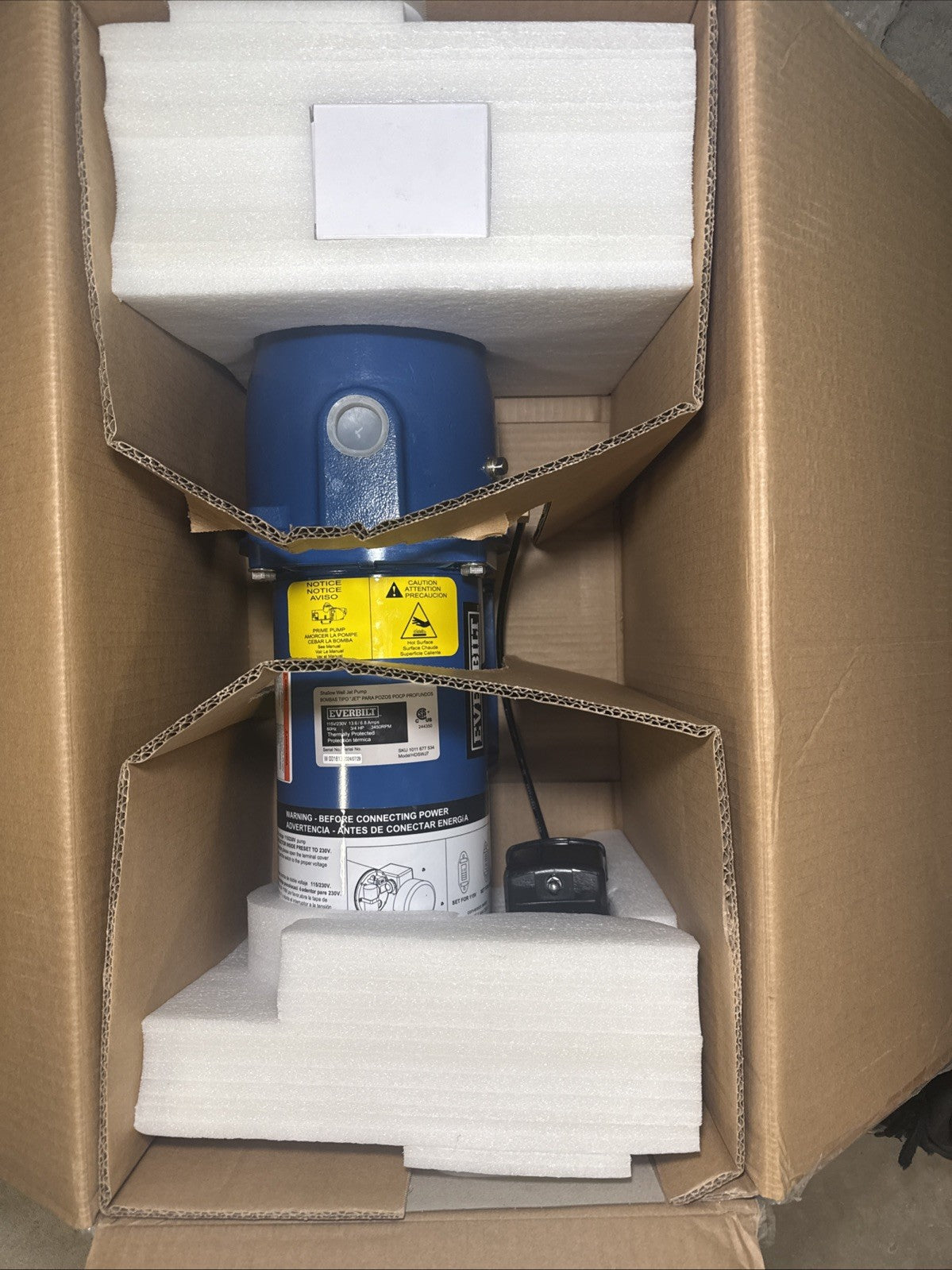

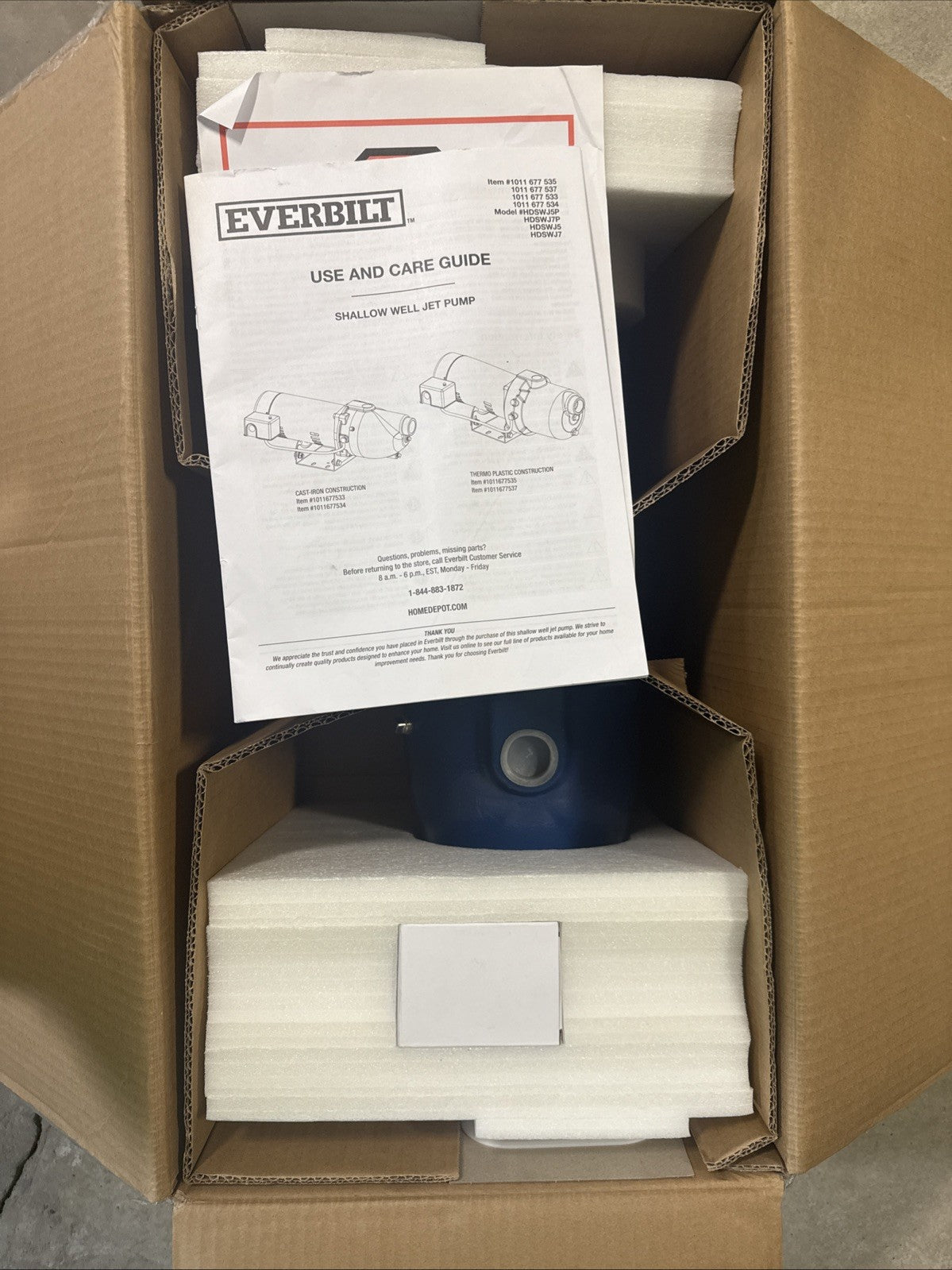

Brand New, open box.
The Everbilt 3/4 HP Shallow Well Jet Pump is ideal for water well depths of 25 ft. or less. The pump is made of rugged cast iron construction for durability and long life. The unit has a dual voltage 115/230-Volt motor and is an open drip proof design, keeping it easy to maintain.

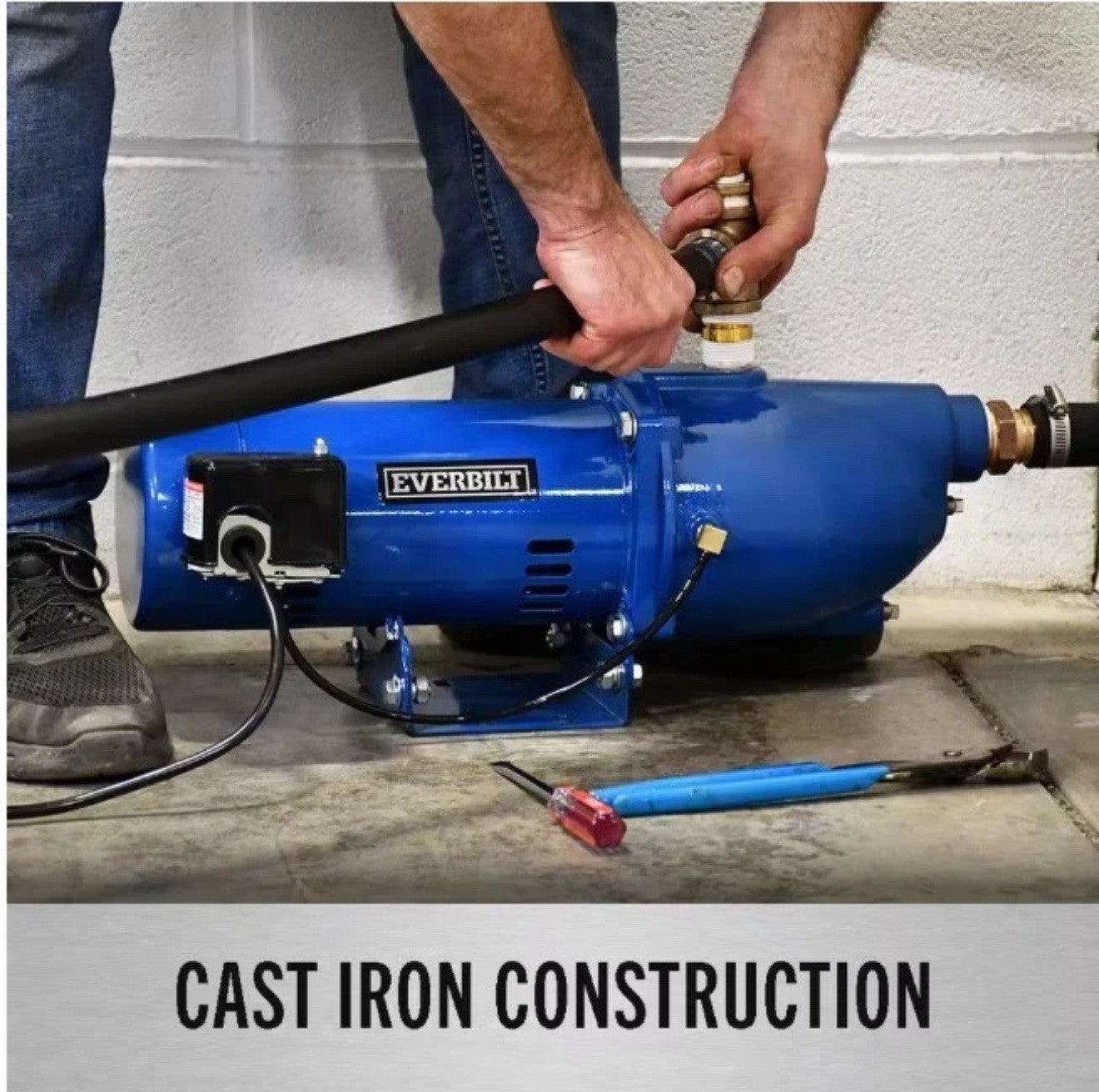

Rugged cast iron construction

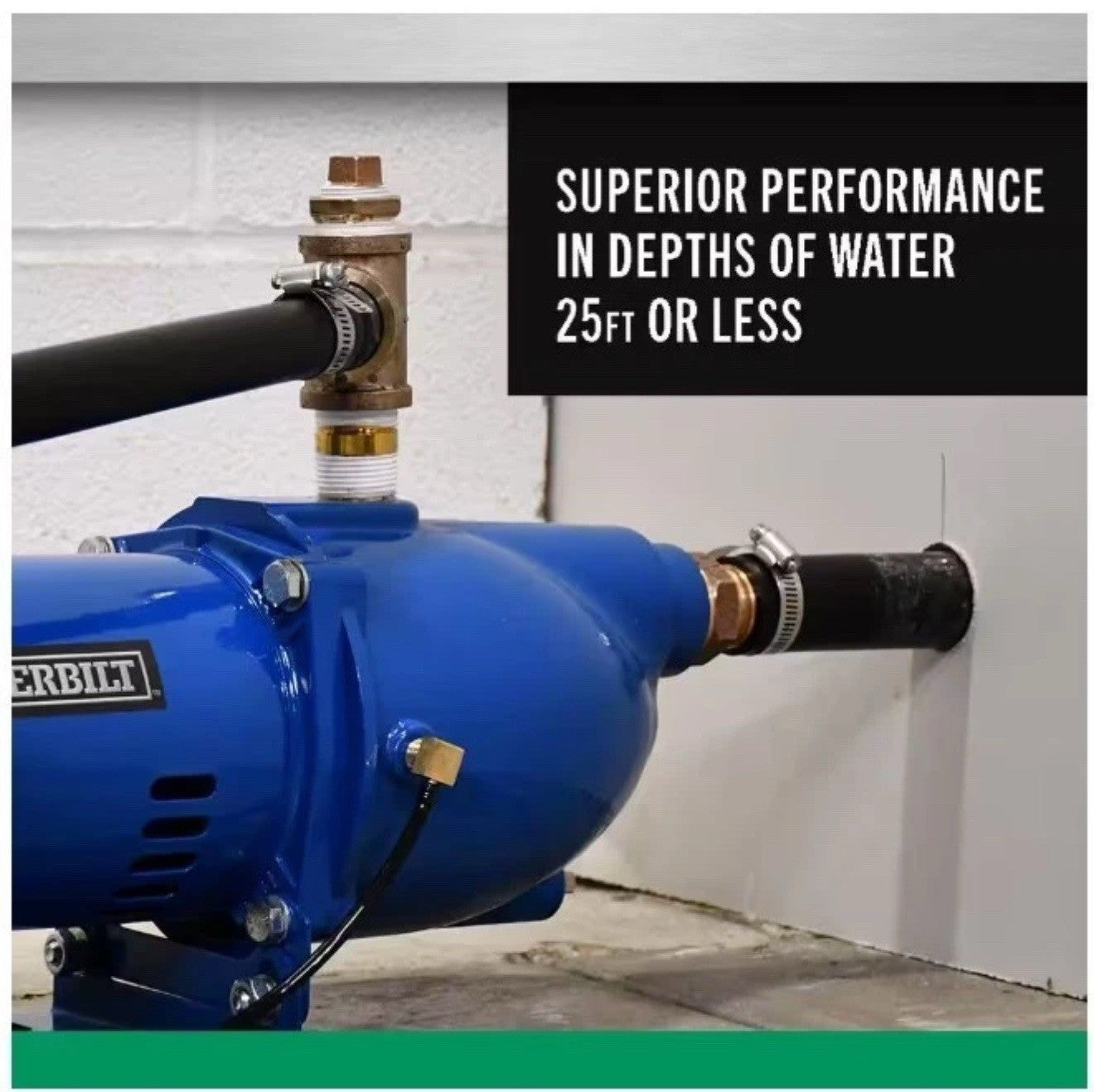

Superior performance to depths of water of 25 ft. or less

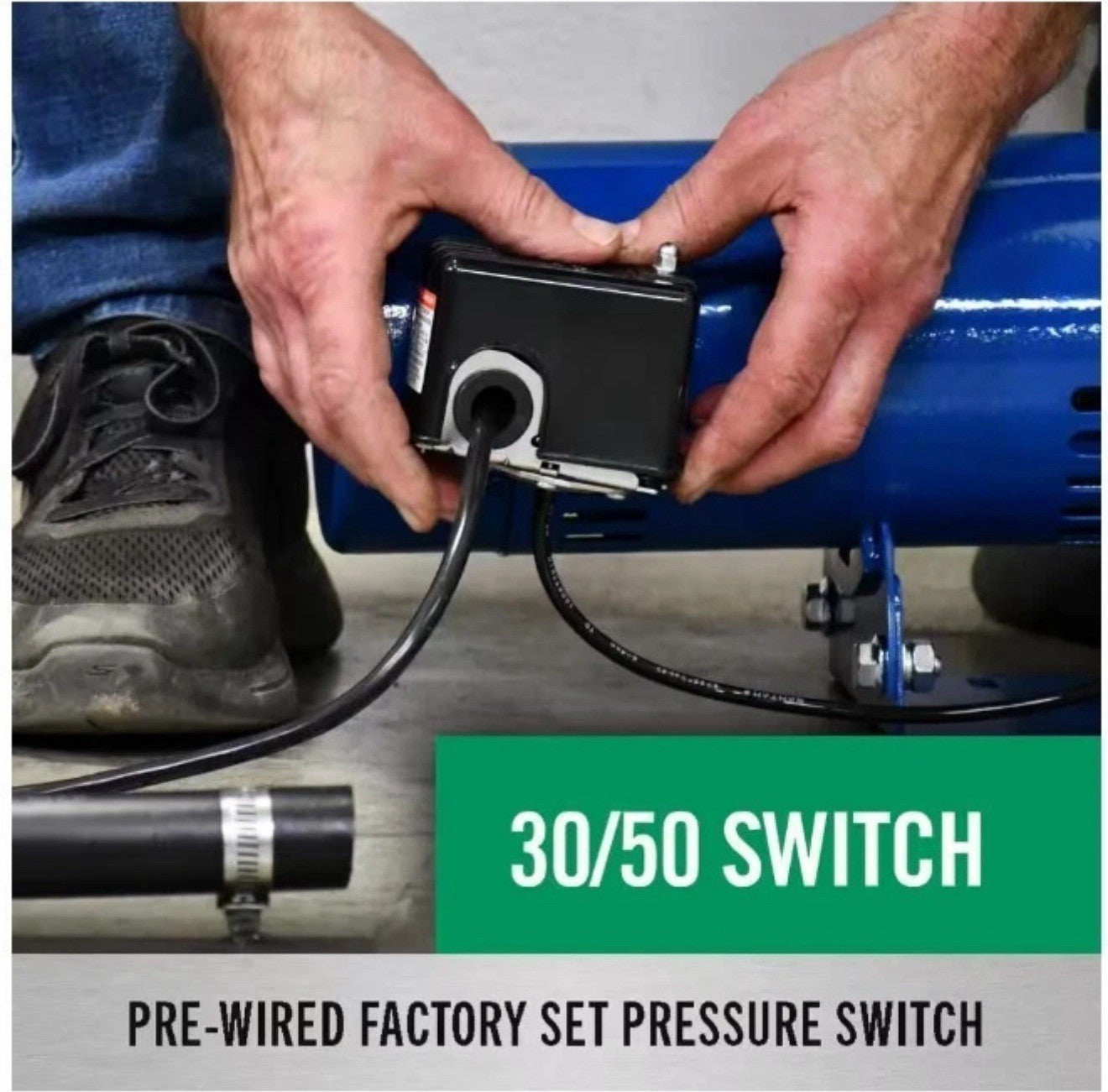

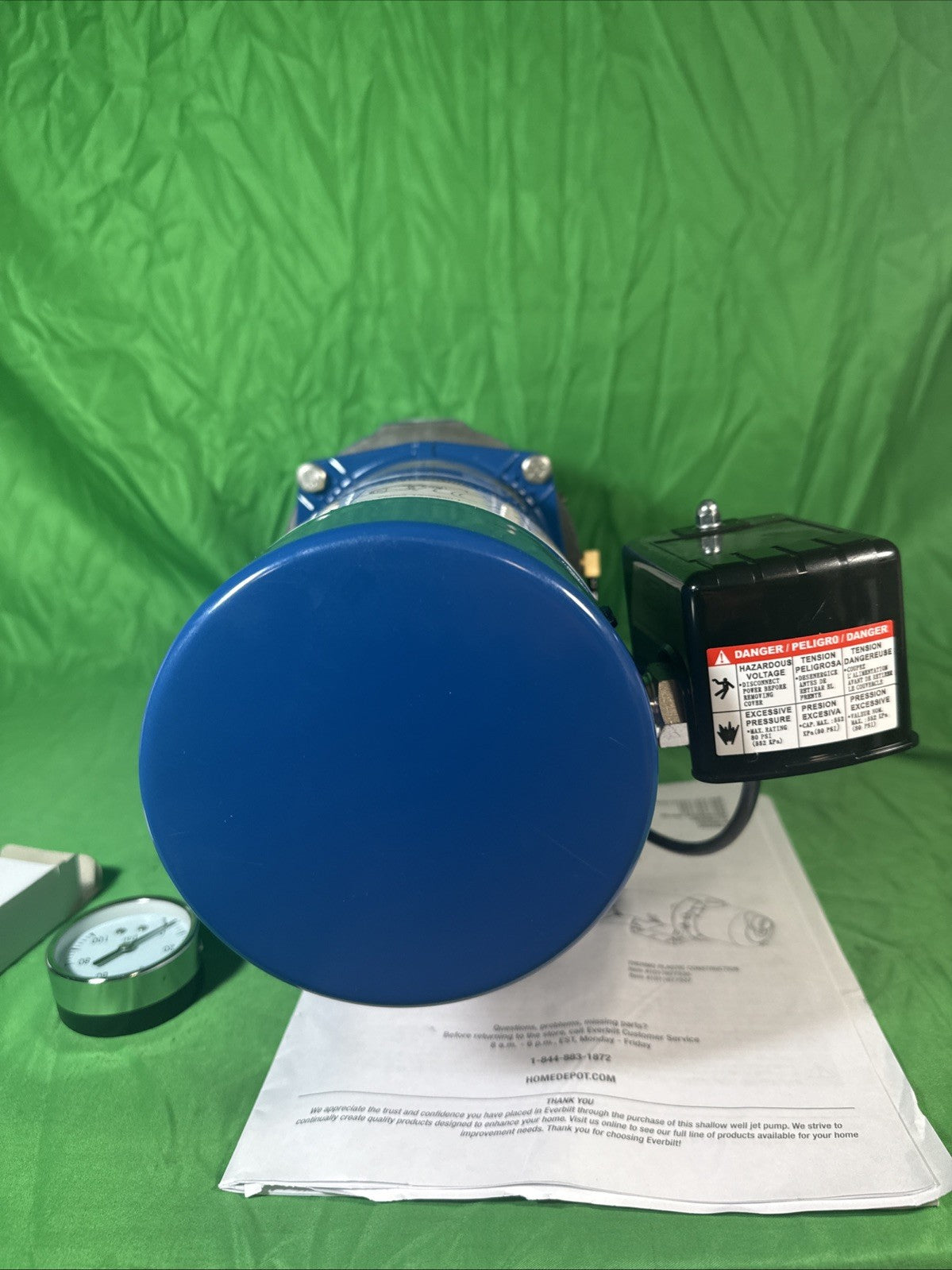

Pre-wired, factory set 30/50-pressure switch

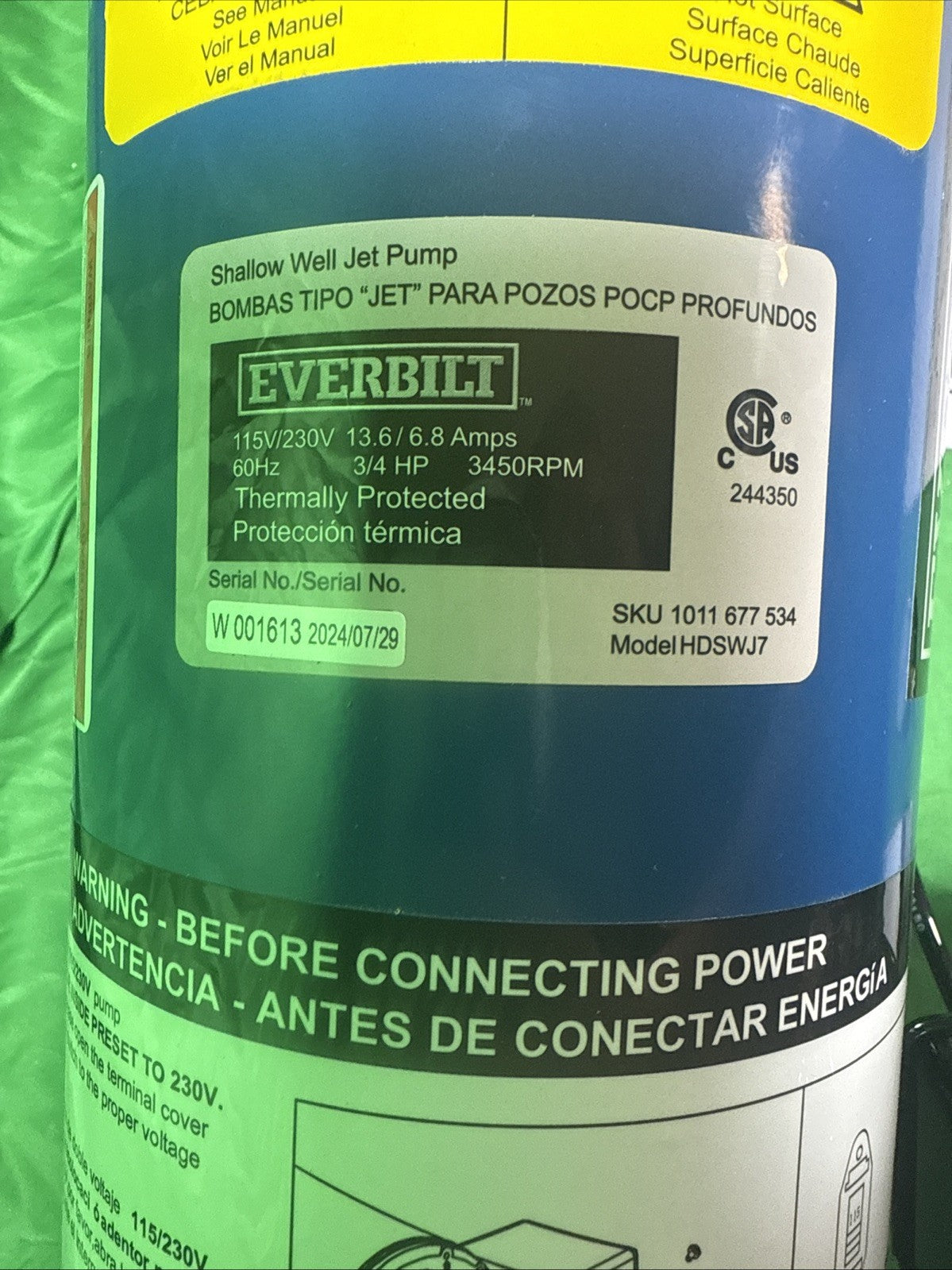

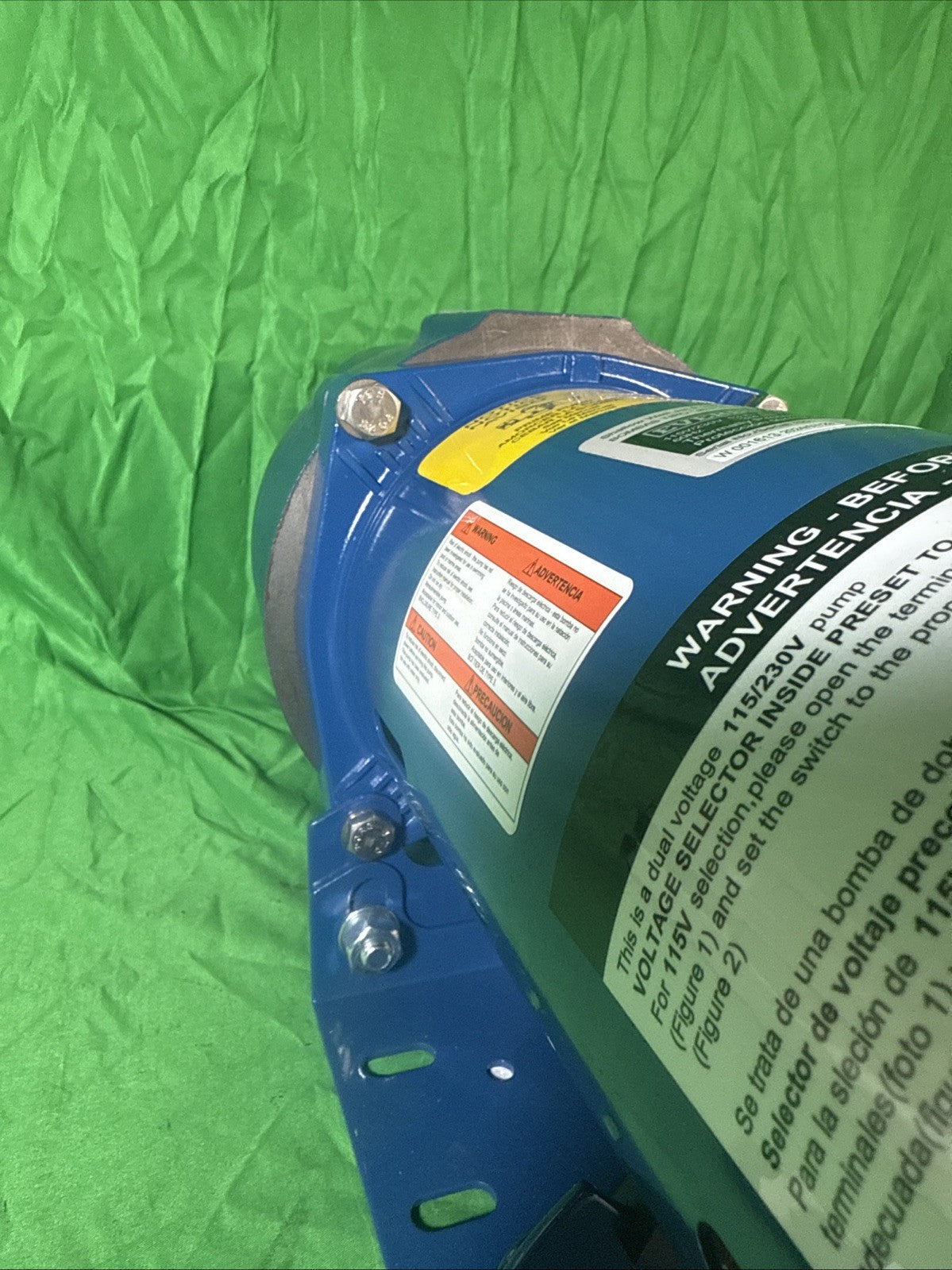

Heavy-duty dual voltage 115-Volt/230-Volt motor, factory preset at 230-Volt

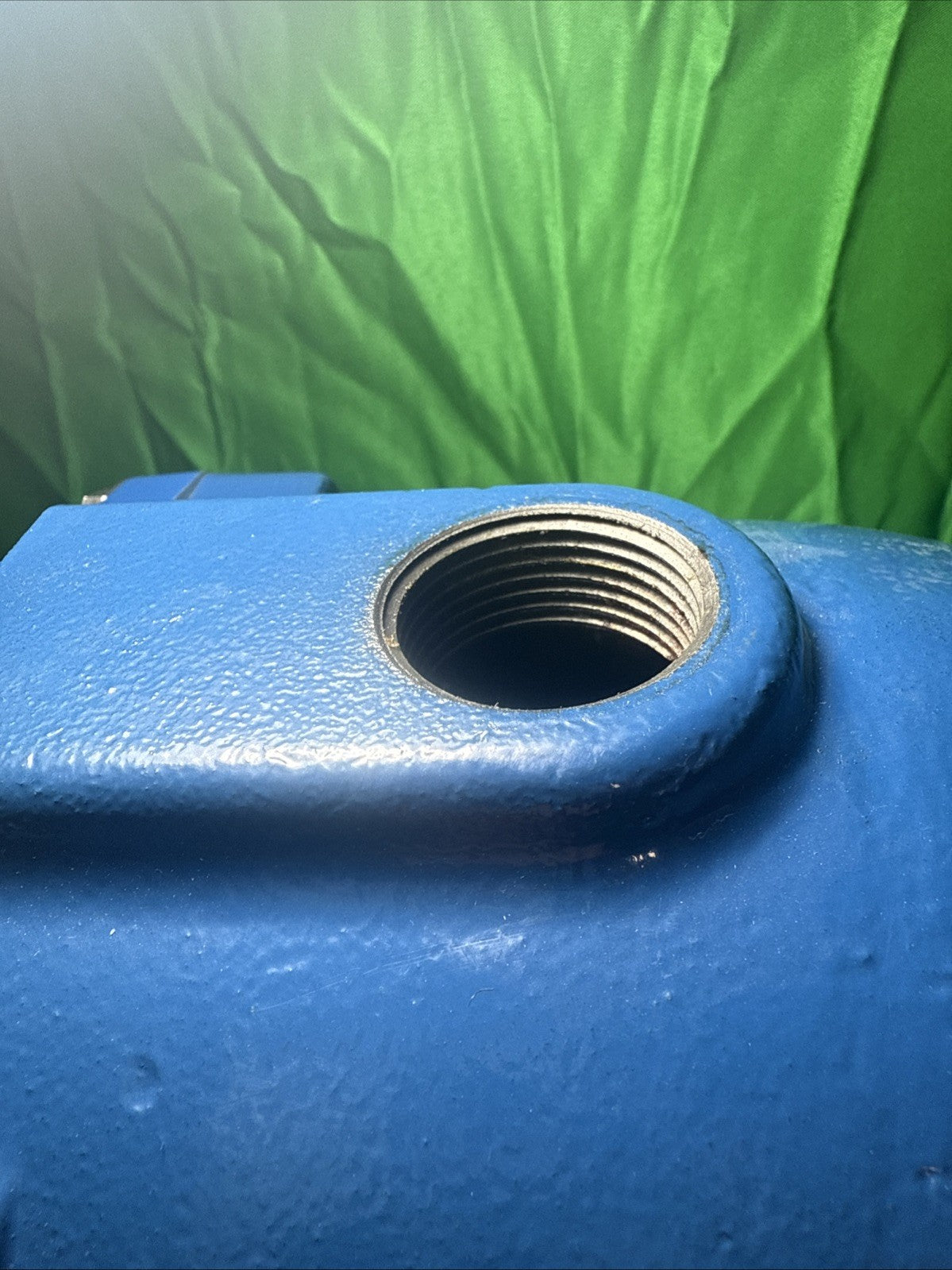

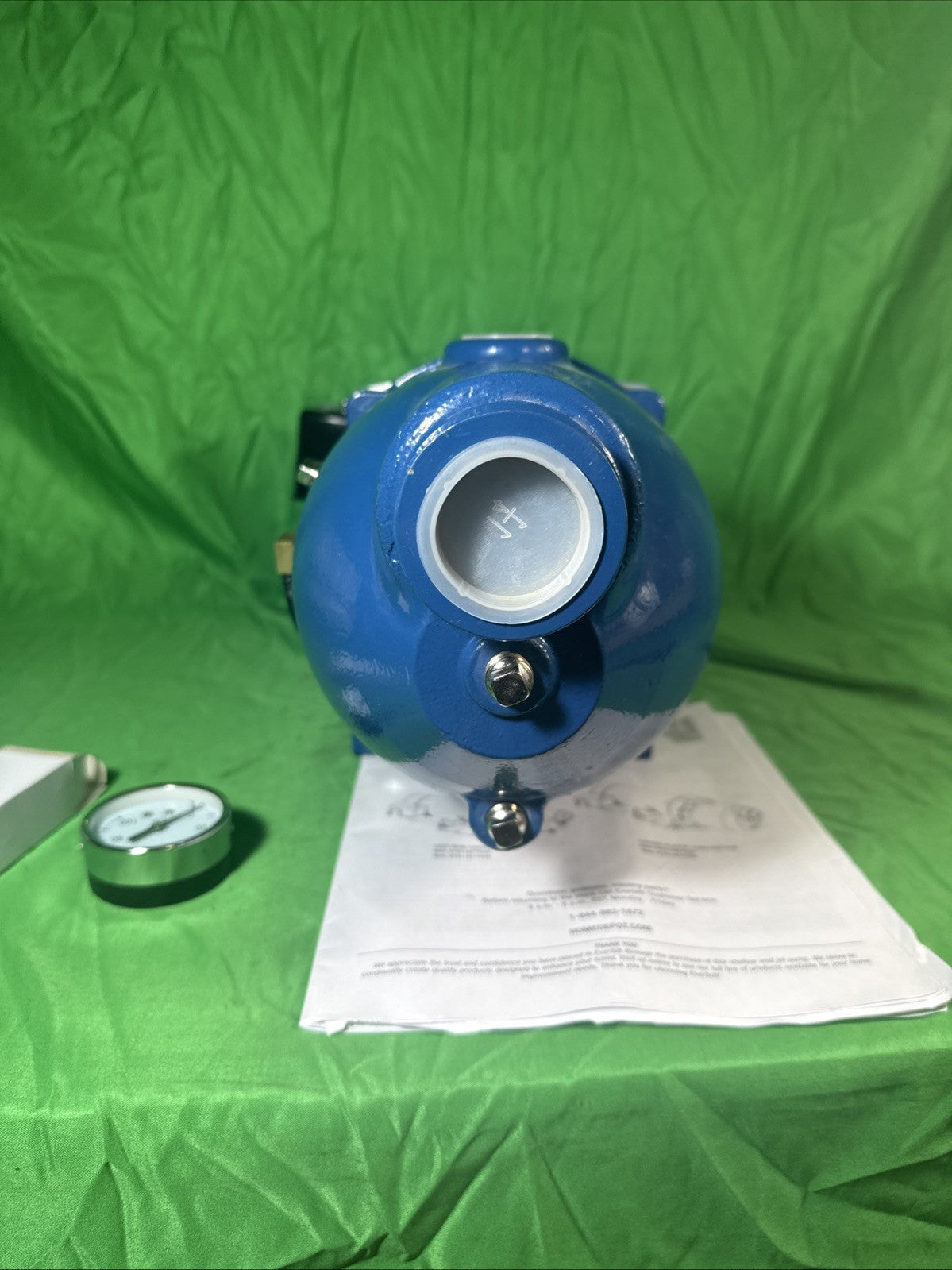

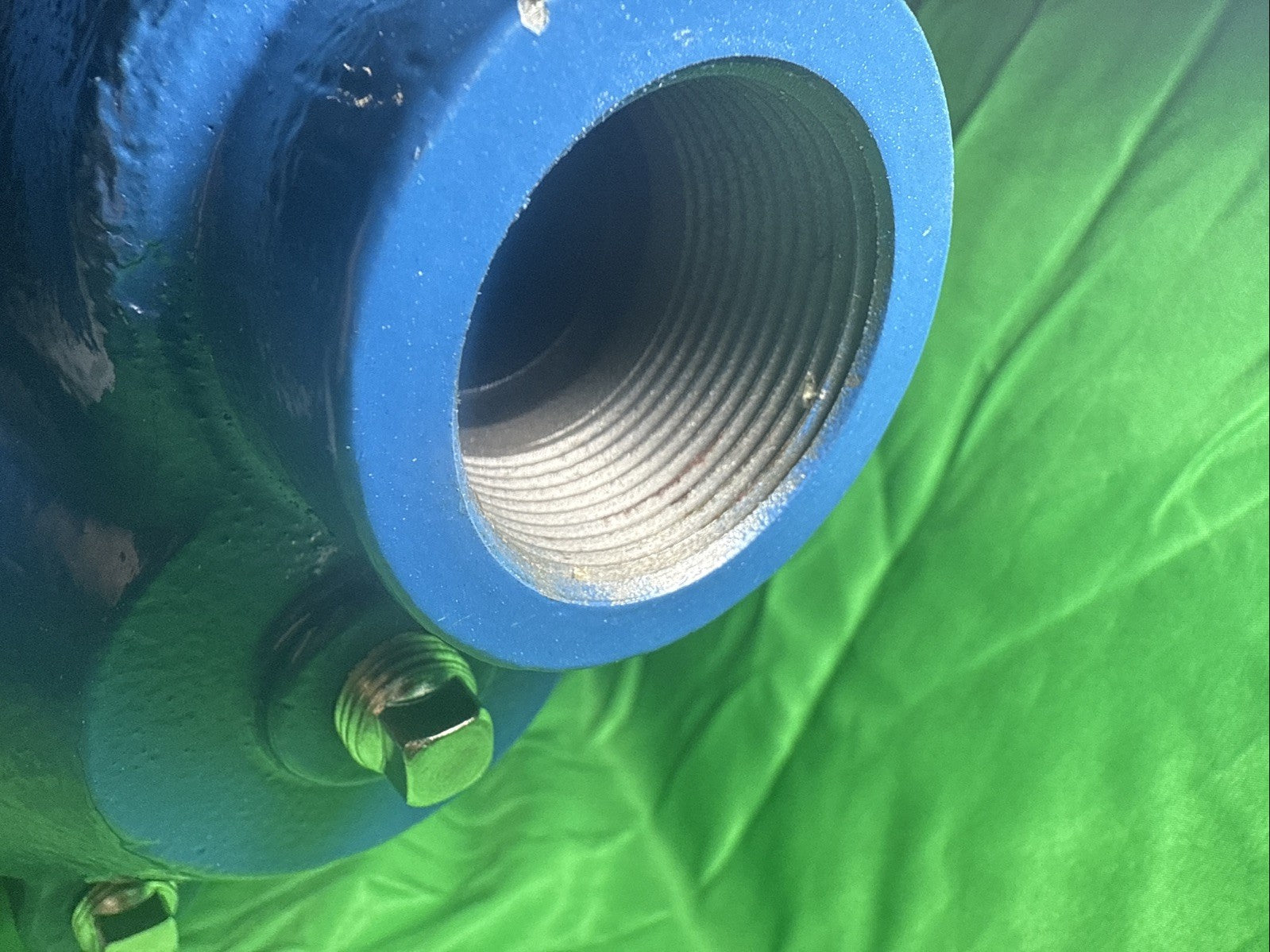

1 in. FNPT Discharge and 1-1/4 in. FNPT Inlet Suction
Product Depth (in.)
9.45 in
Product Height (in.)
8.58 in
Product Width (in.)
21.57 in
Amperage (A)
6.8 A
Cord Length (ft.)
0 ft
Discharge Flow 0 ft. @ 40 PSI (gallons/hour)
1152
Discharge Flow 0 ft. @ 40 PSI (gallons/min)
19
Discharge Flow 25 ft. @ 40 PSI (gallons/hour)
606
Discharge Flow 25 ft. @ 40 PSI (gallons/min)
10
Features
Corrosion Resistant, Self-Priming
Gallons Per Minute (GPM)
17.6
Head Pressure (ft.)
157
Housing Material
Cast-Iron
Impeller Material
Thermoplastic
Included
No Additional Items Included
Inlet Connection
Threaded female
Jet Pump Product Type
Shallow Well
Maximum Horsepower (hp)
3/4
Maximum Pressure (PSI)
68 PSI
Maximum Working Temperature (F)
95
Minimum working temperature (F)
32
Number of Impellers
1
Outlet Connection
Threaded female
Pack Size
1
Power Type Required
AC
Product Weight (lb.)
39.38 lb
