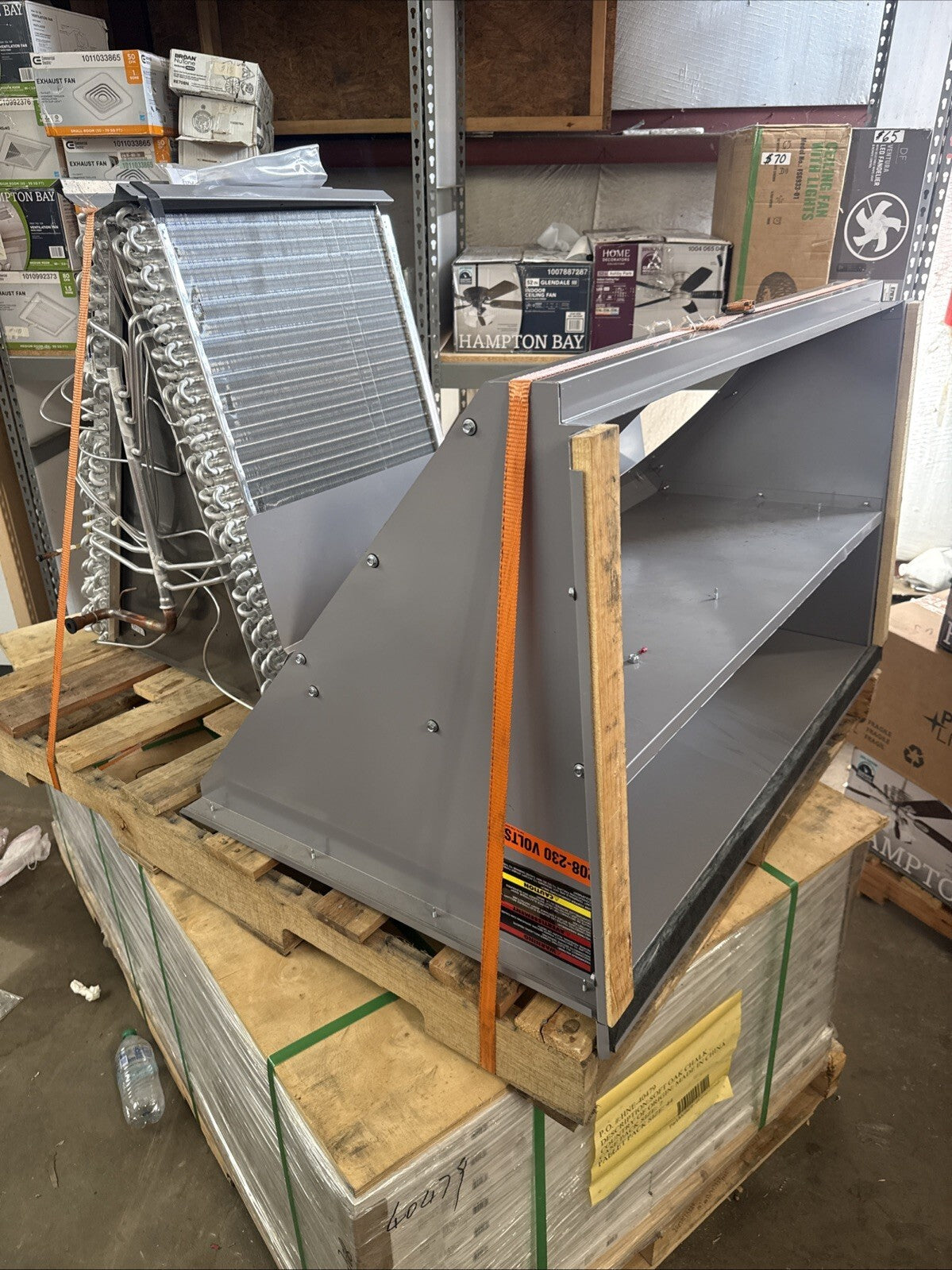

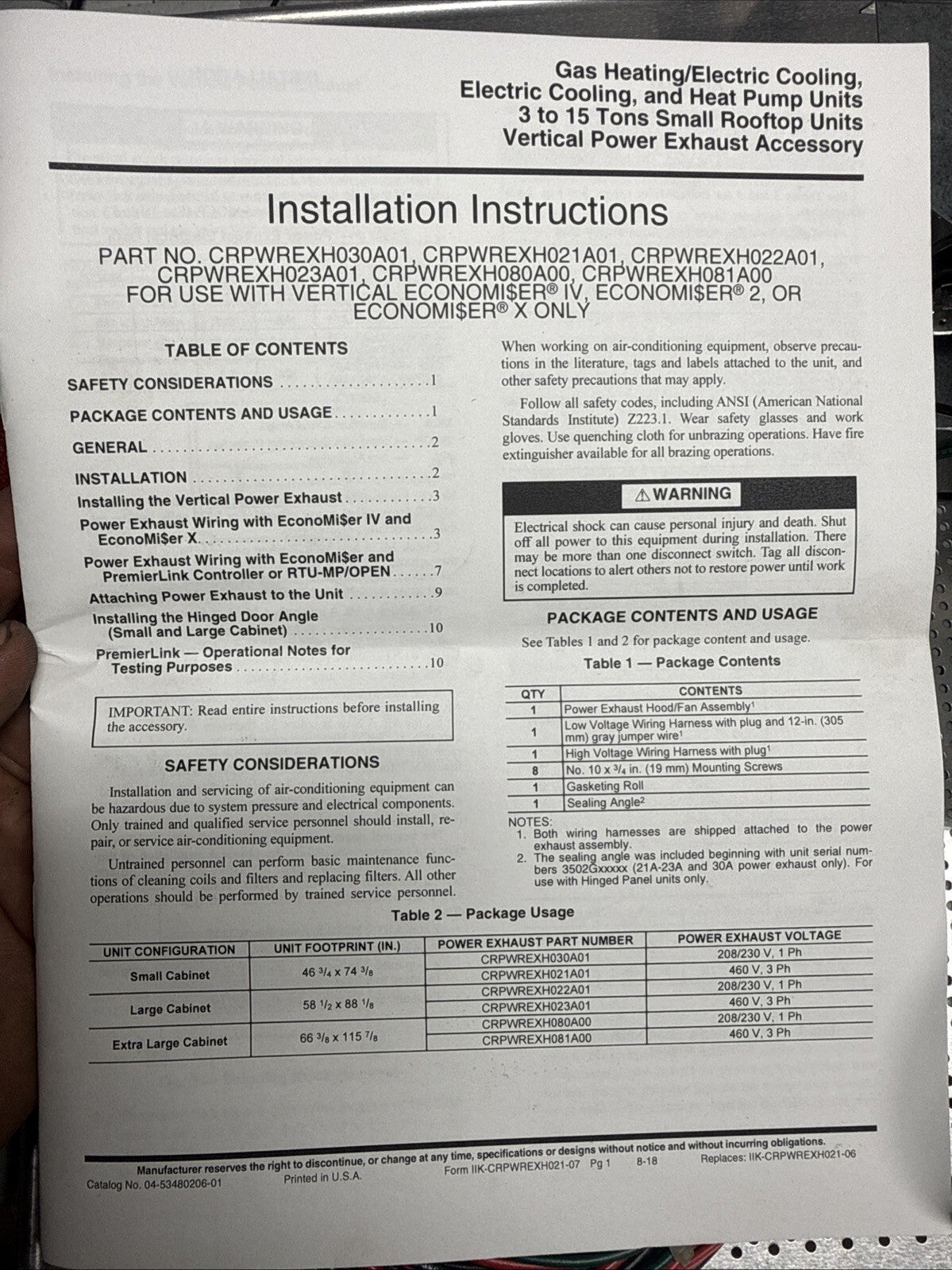

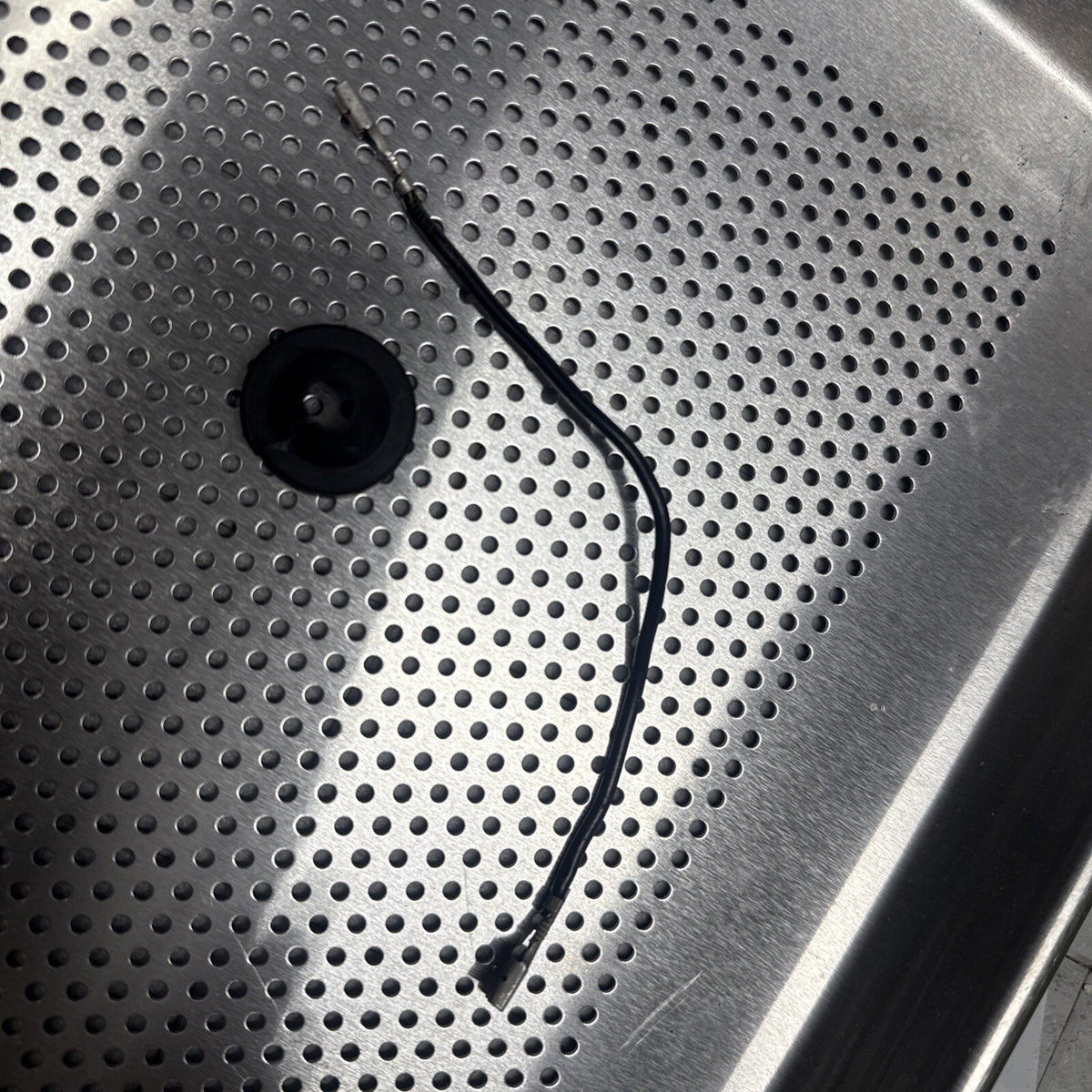

(New Take-Off Condition) please review pictures for exact fitment and condition. THE FINAL PICTURE SHOWS THE UNIT IT WAS PULLED FROM I’m also including the installation instructions from the unit it was pulled from.
Carrier OEM Integrated Relay, Harness, and Dual Capacitor Sub-Assembly

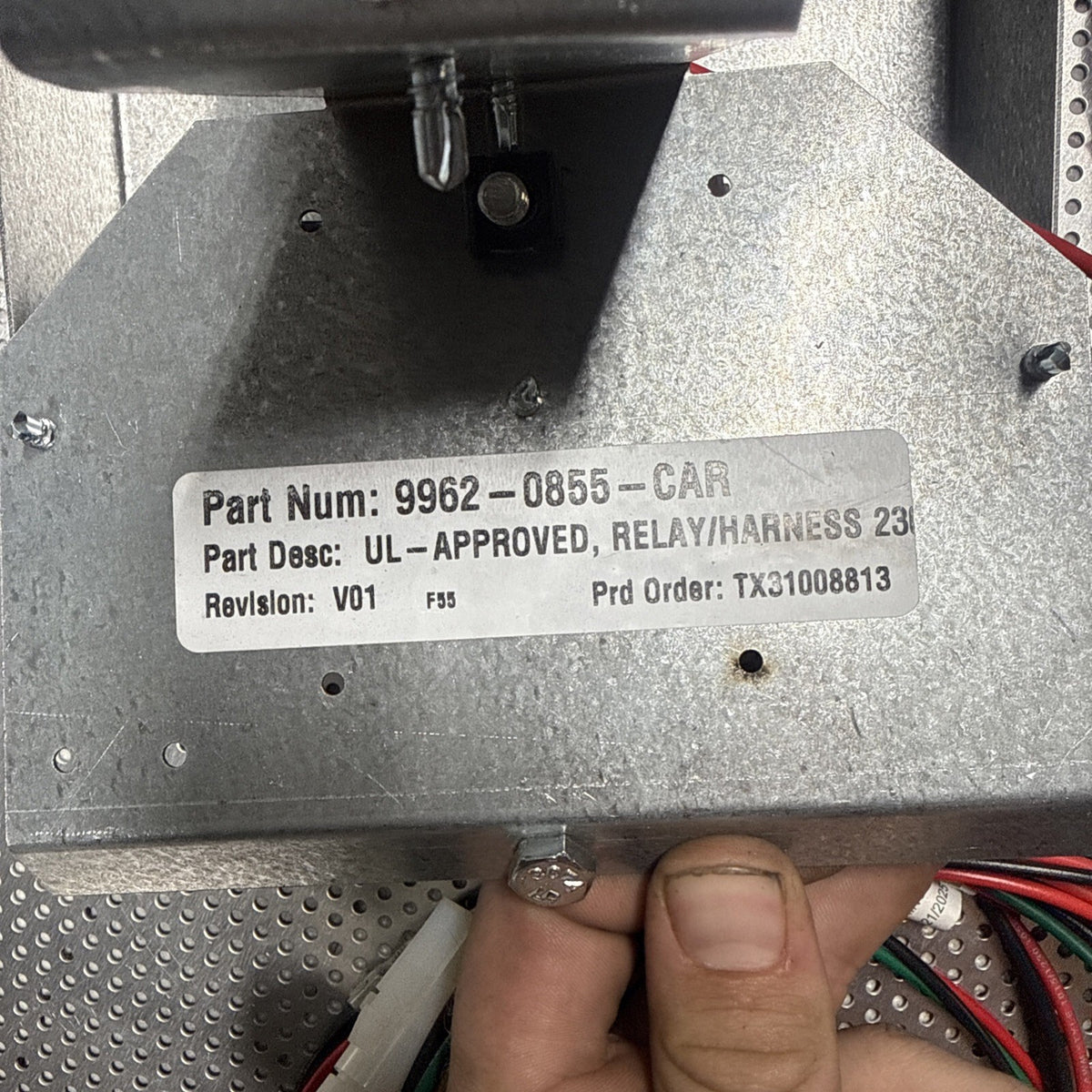

• Base Part Number: 9962-0855-CAR
• Cross-Reference Supplier Part: AllPoints #8605597
This item is in pristine, unused condition. It is a genuine OEM factory "New Take-Off" pulled directly from a brand-new, never-installed commercial Carrier rooftop package unit prior to commission.

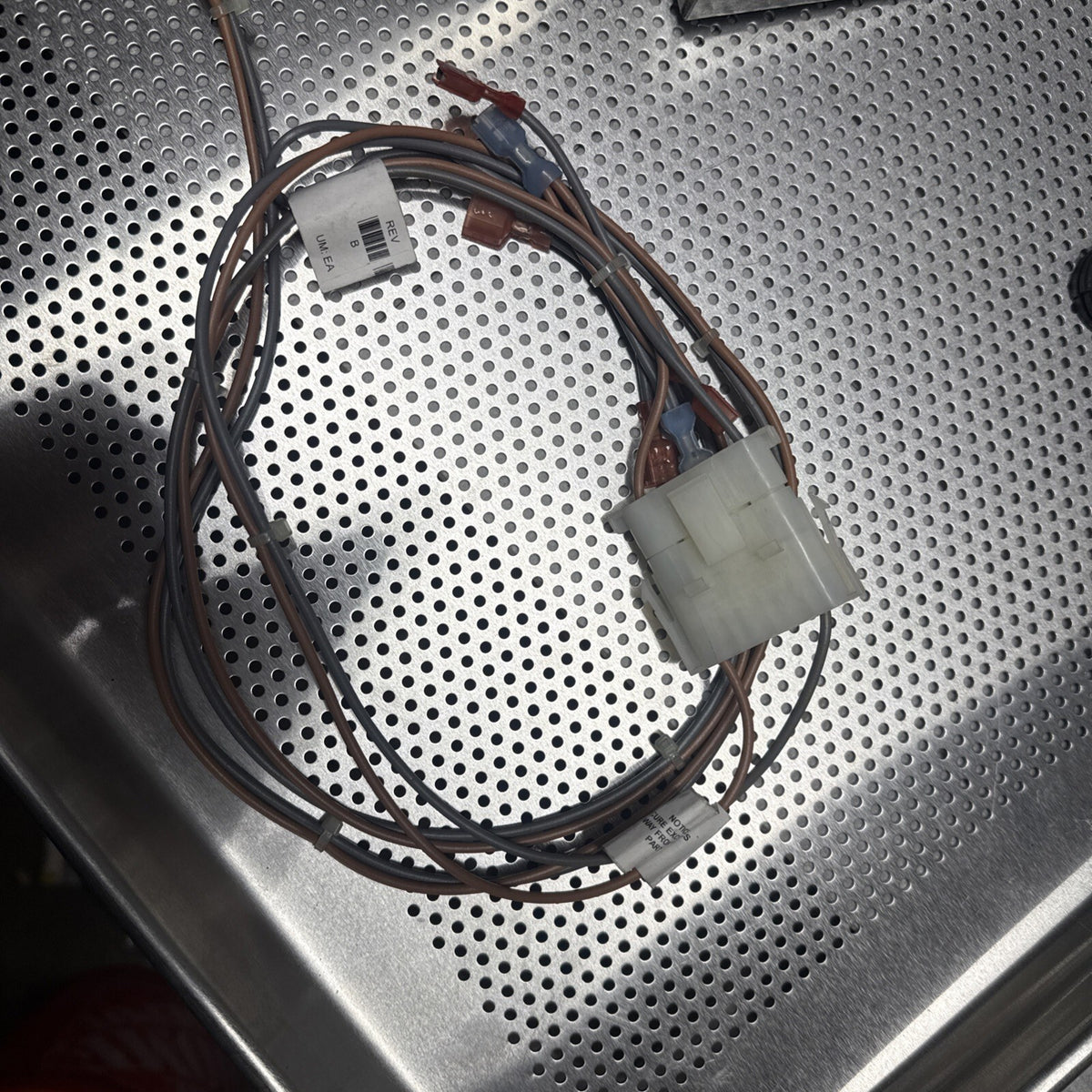

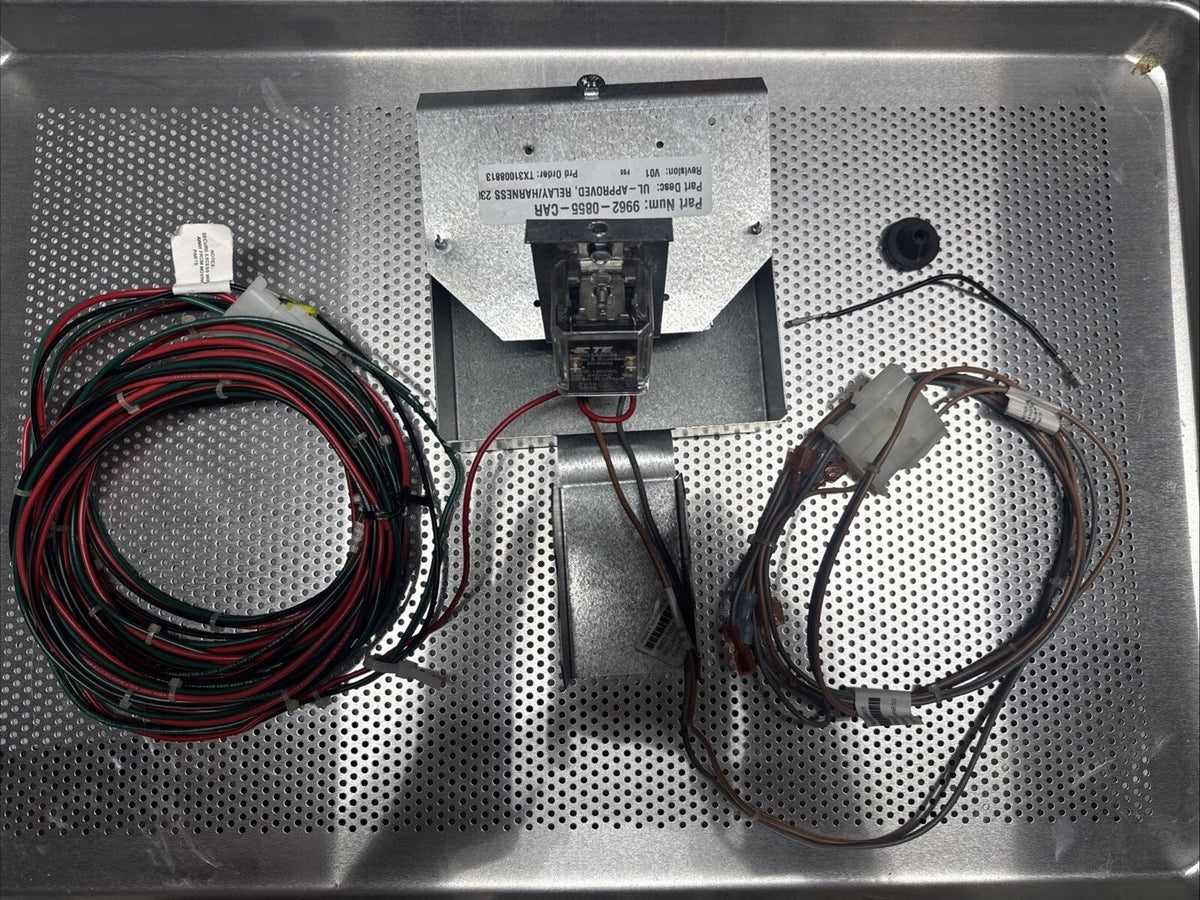

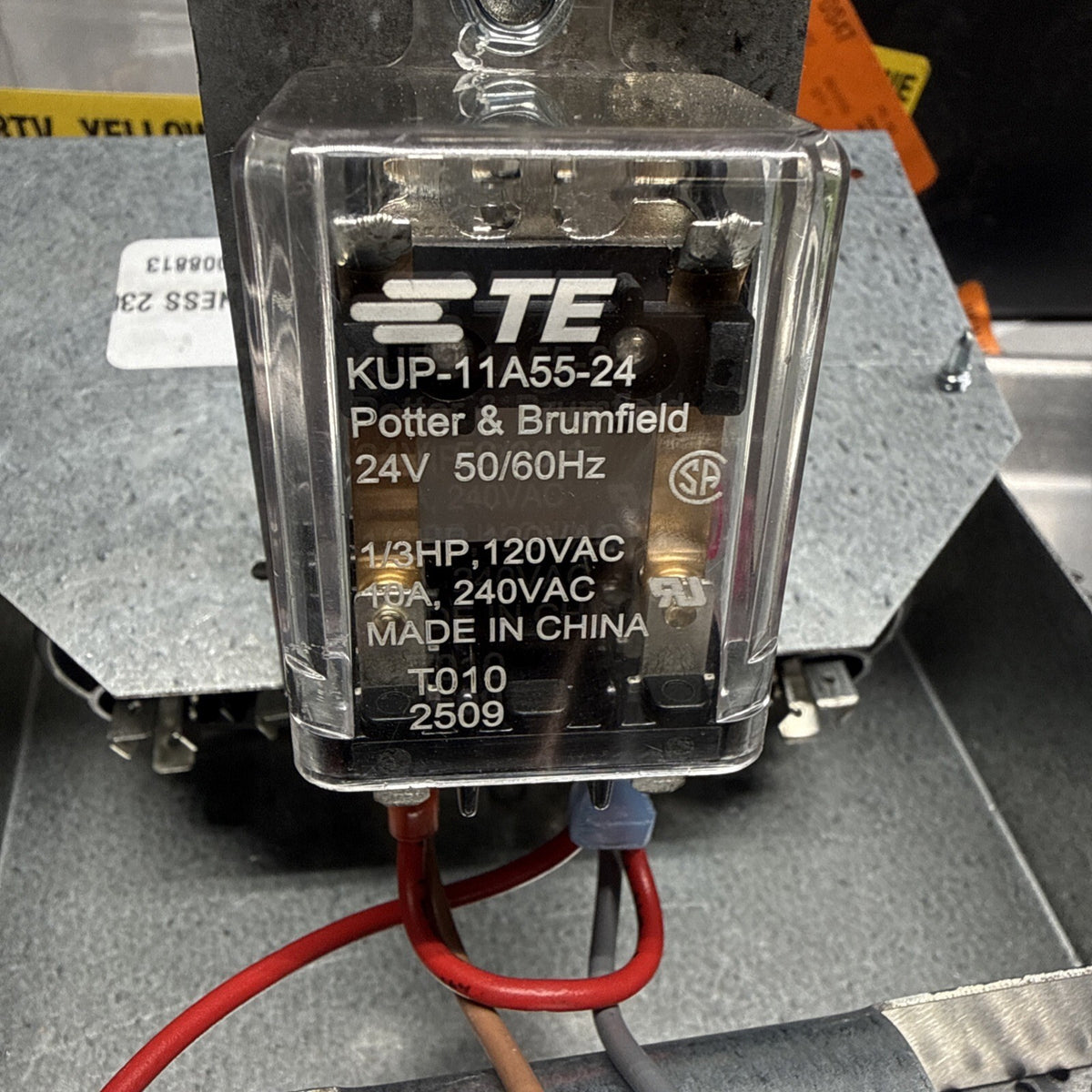

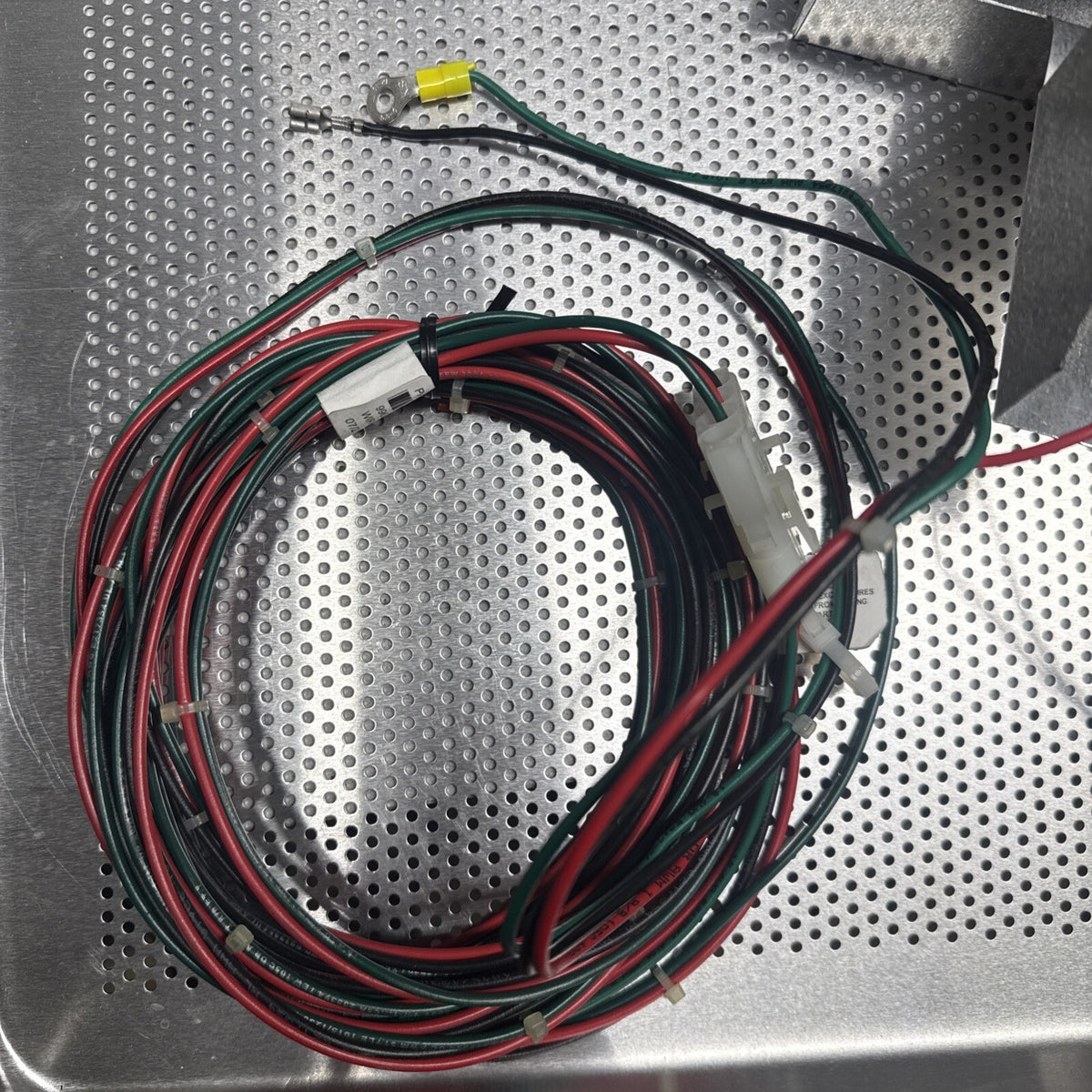

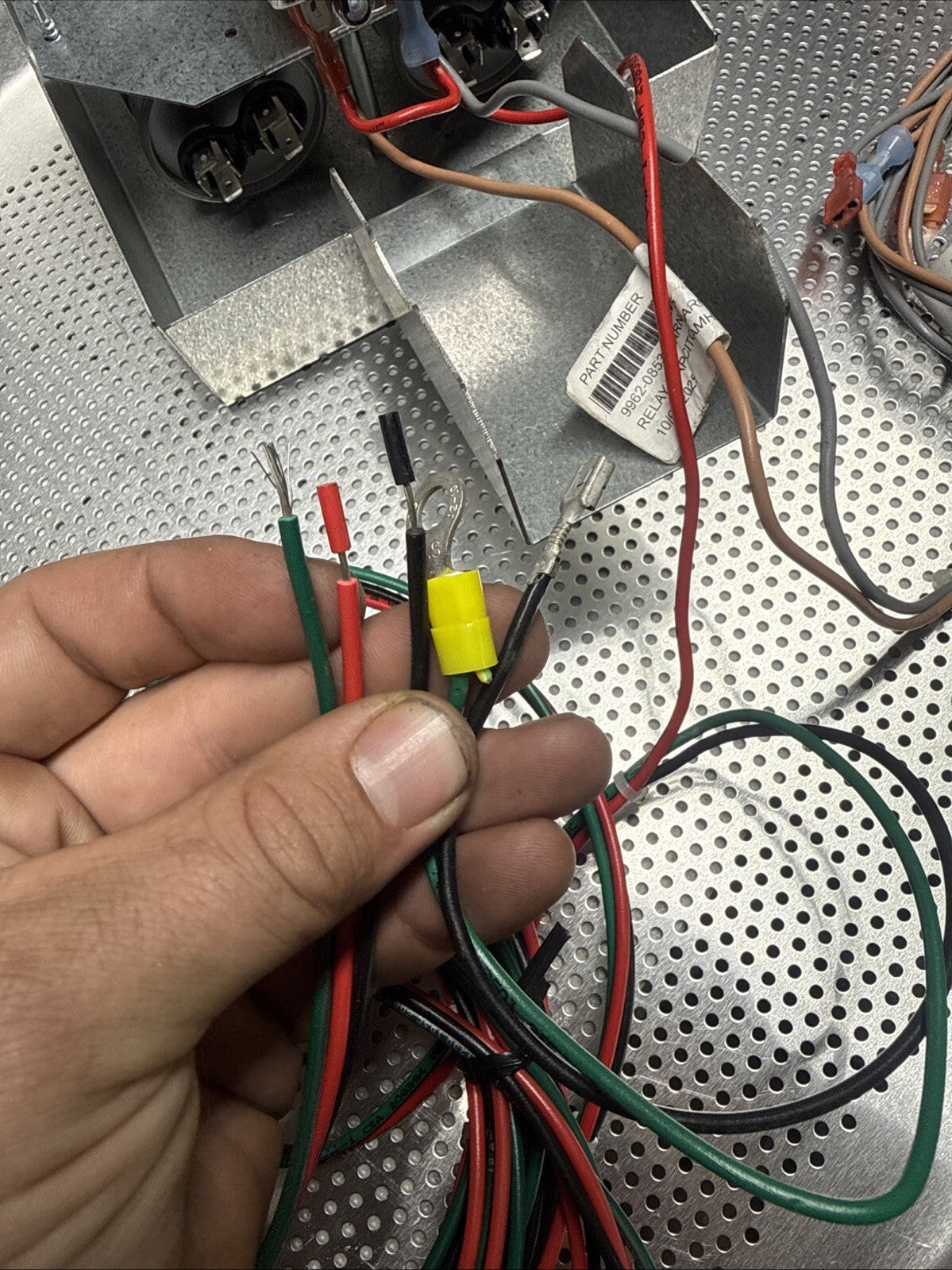

While typical parts catalogs mislabel part number 9962-0855 simply as a "wire harness," this is the complete, factory-integrated 230V modular sub-assembly. It includes the heavy-duty galvanized sheet metal mounting chassis, a premium TE Connectivity electrical power relay, a matching pair of industrial-grade CDE run capacitors, and the multi-pin main wiring harness.
This drop-in assembly eliminates the labor time of tracking down individual capacitors, terminal leads, pigtails, and brackets separately. It arrives ready for a direct swap to completely restore factory circuit paths and fan controls.
Technical & Electrical Specifications
• Main Assembly Voltage: 208 / 230V
• Power Phase: 1 Phase (Single Phase)
• Frequency: 50 / 60 Hz
• System Electrical Ratings: Fits systems rated for 1.5A to 3.3A MCA (Maximum Circuit Amps)
• Max Circuit Protection: 15A MOCP (Maximum Overcurrent Protection)

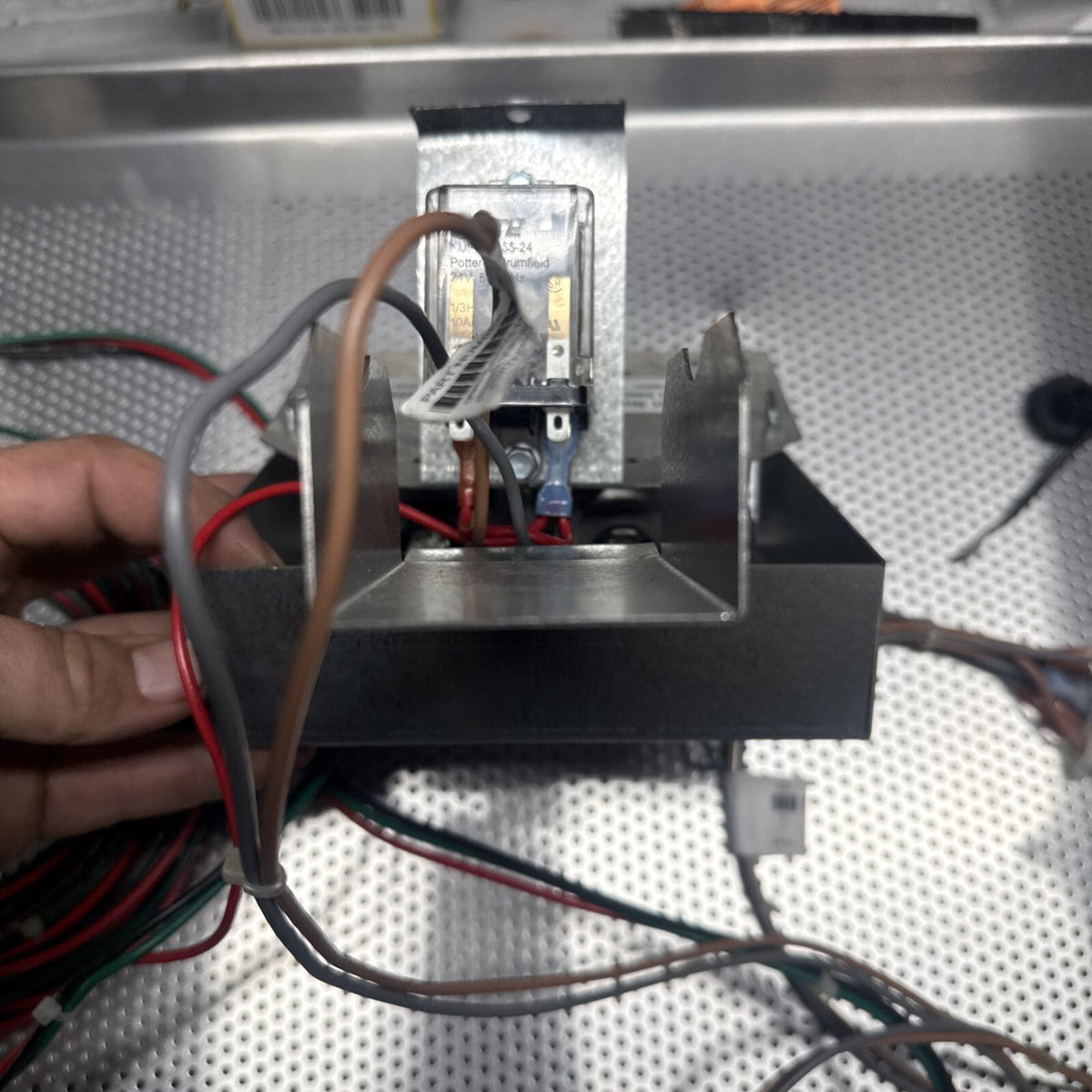

• Relay Component Capacity: 30 Amp Heavy-Duty Series

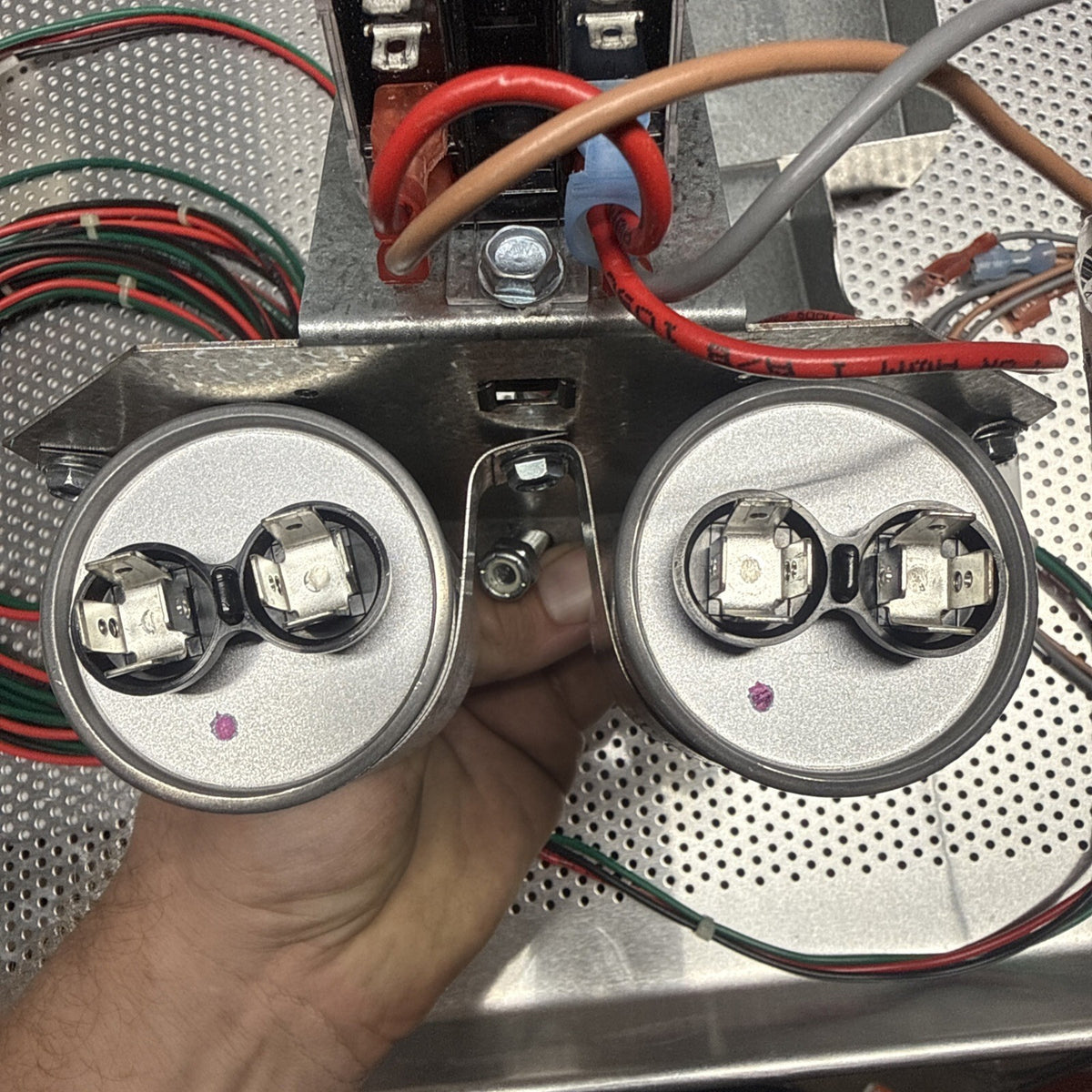

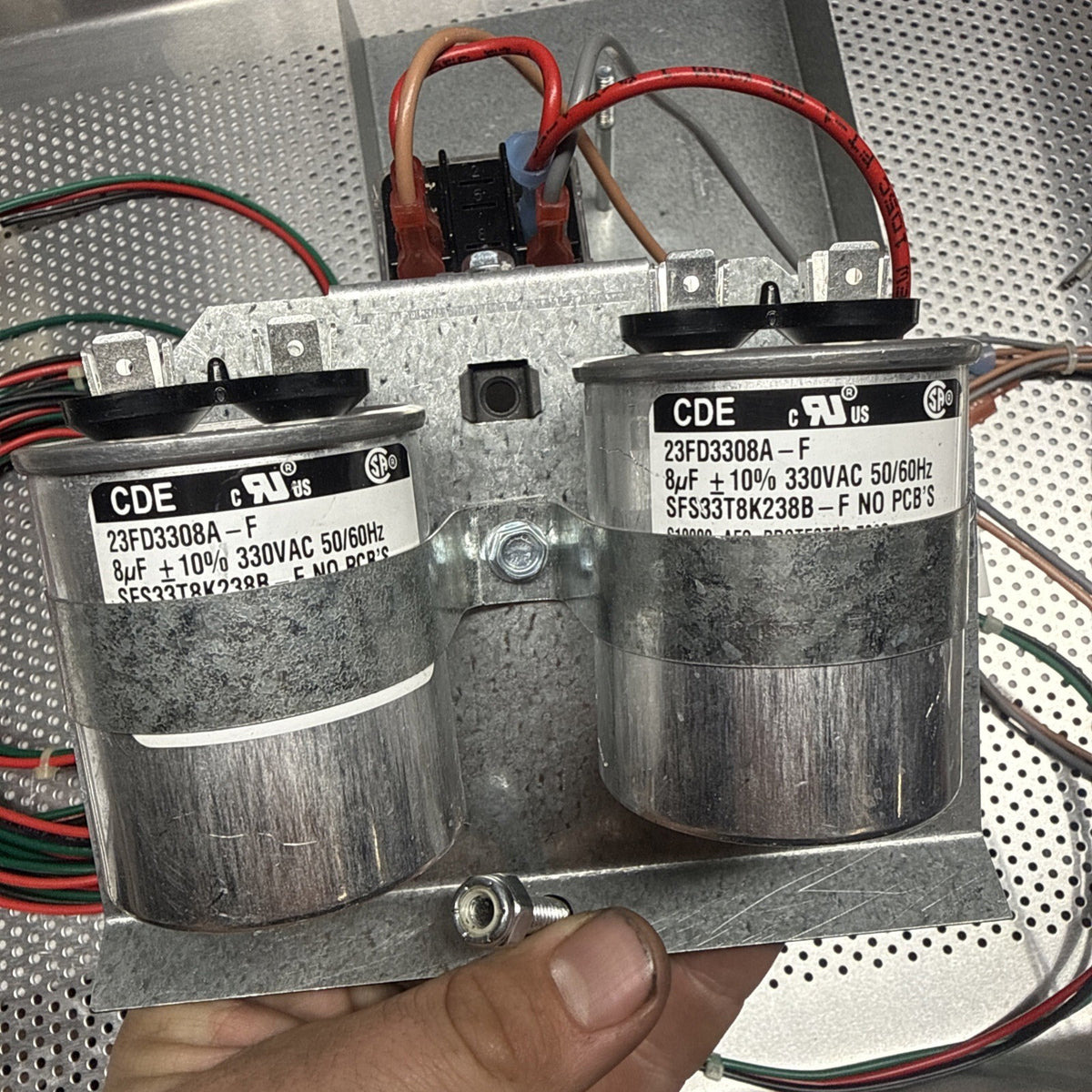

• Capacitor Configuration: Dual 8 MFD (8µF) ±10% Run Capacitors
• Capacitor Brand/Model: CDE (Cornell Dubilier) | 233D3308A-F / SFS33T8K238B-F (330VAC, No PCBs)
• Assembly Revision: V01
Verified Fitment & Compatibility
Per factory installation manuals, this assembly is a direct fit for Carrier, Bryant, and Payne 3-to-15 Ton Small Rooftop Commercial Package Units equipped with a vertical power exhaust ventilation accessory.
• Direct Accessory Kit Compatibility: Engineered for Power Exhaust model numbers CRPWREXH030A01 and CRPWREXH080A00.
• Cabinet Sizes: Fits Small Cabinet and Extra Large Cabinet unit footprints.
• Economizer Integration: Fully compatible with units utilizing EconoMier IV (with W7212 Controller), EconoMier X (with W7220 Controller), and EconoMier 2 (without controller/field-supplied building management systems).
Condition, Packaging, & Shipping Notes

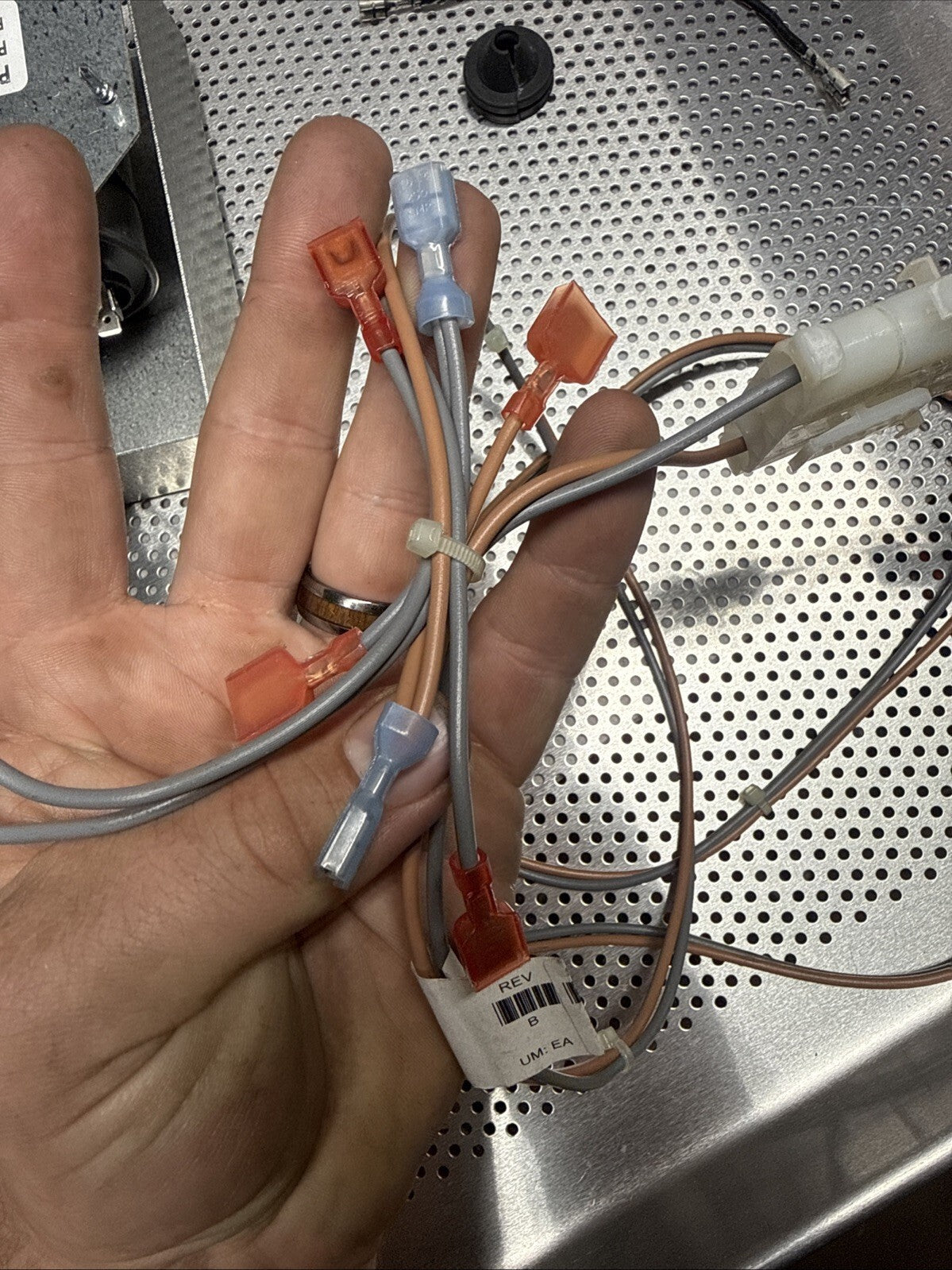

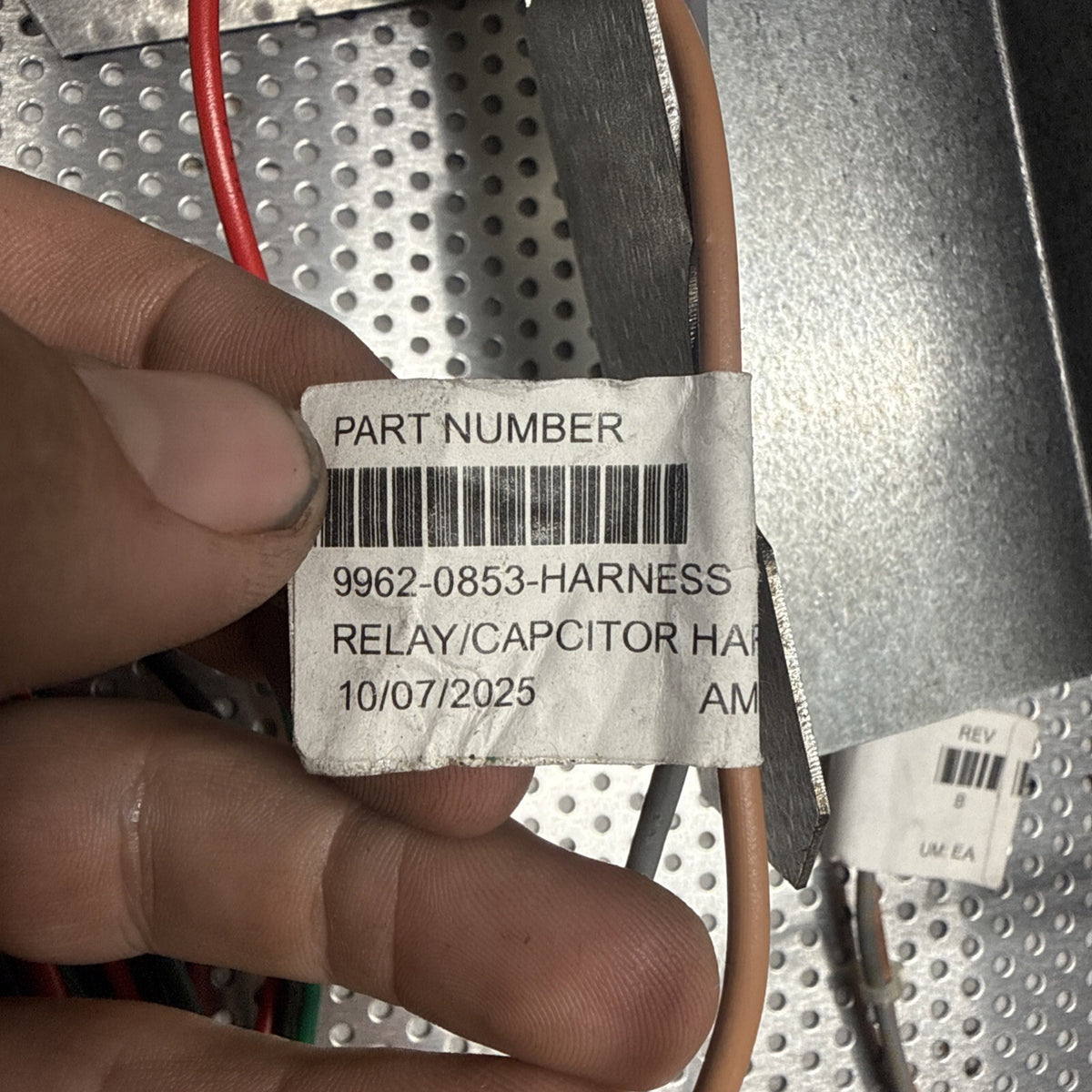

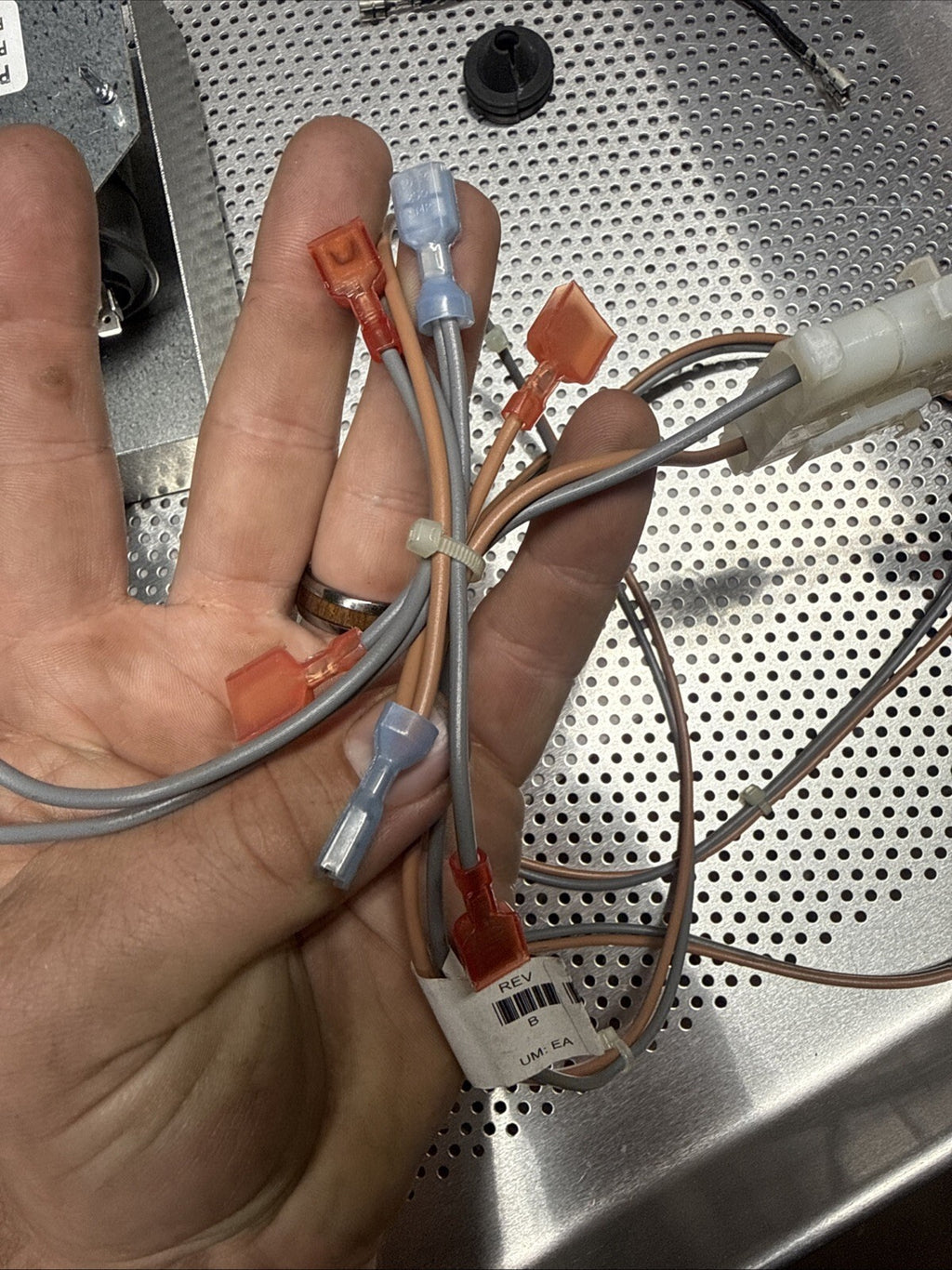

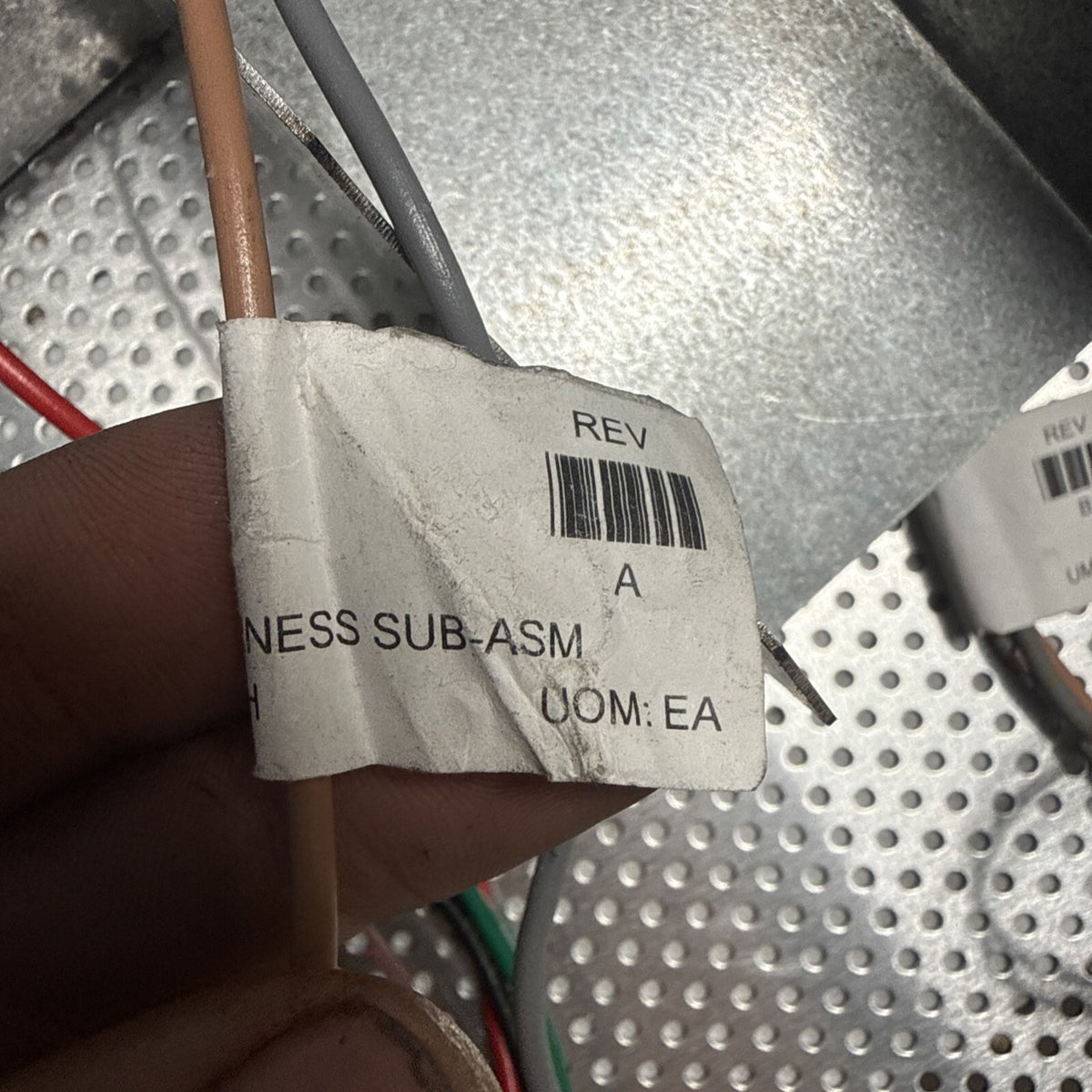

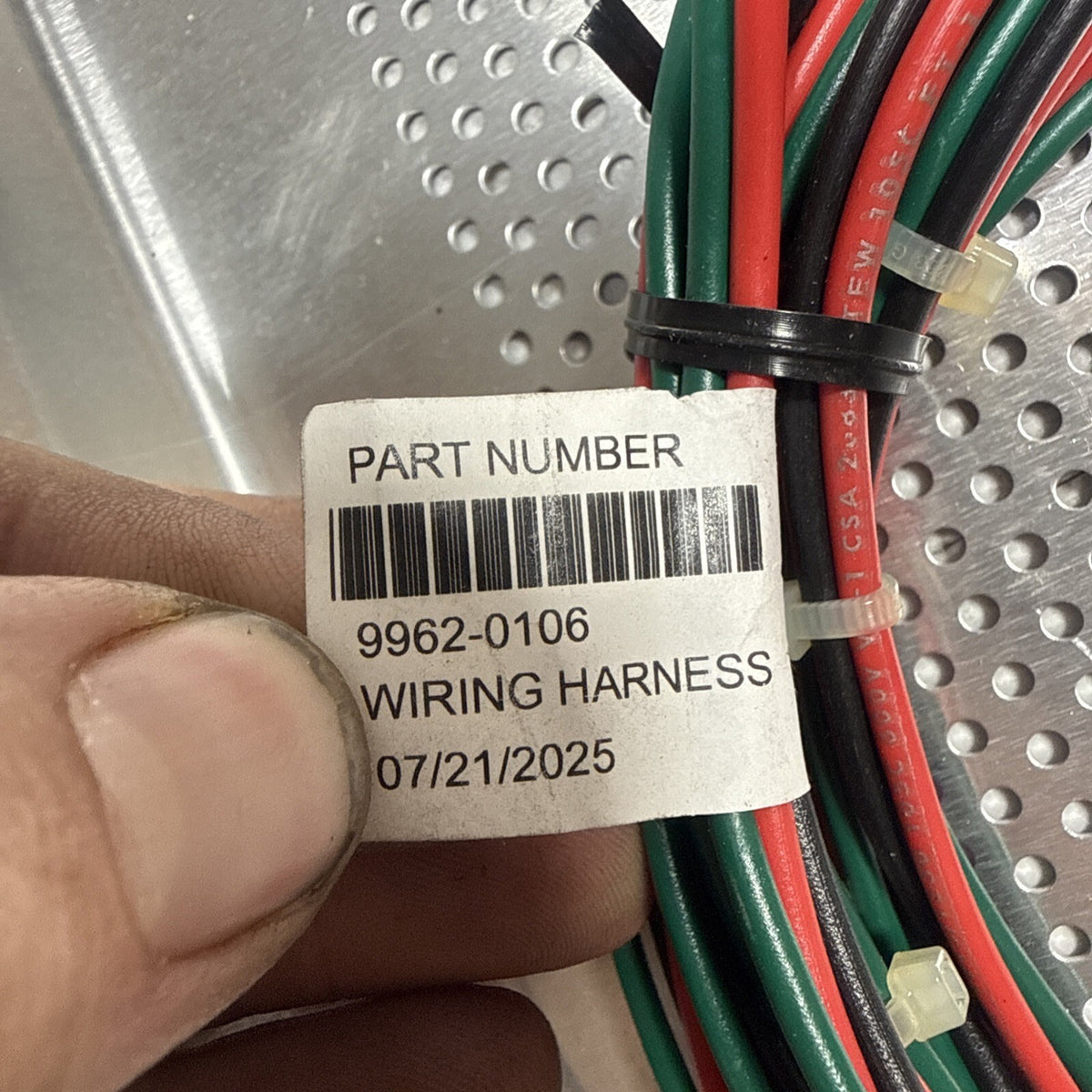

• Condition: New (Other / Surplus Open Box). Pristine terminal clips, clean pins, and untouched wire insulation with zero pinch marks. Factory tracking labels are fully legible.
• Shipping Care: Will be securely packed with ample bubble wrap inside a rigid corrugated box to ensure the capacitor casings, terminal blocks, and sheet metal bracket do not take any structural or transit damage.
Please verify your commercial HVAC unit's accessory model number matches CRPWREXH030A01, CRPWREXH080A00, or base assembly 9962-0855 before purchasing.
$308.74
