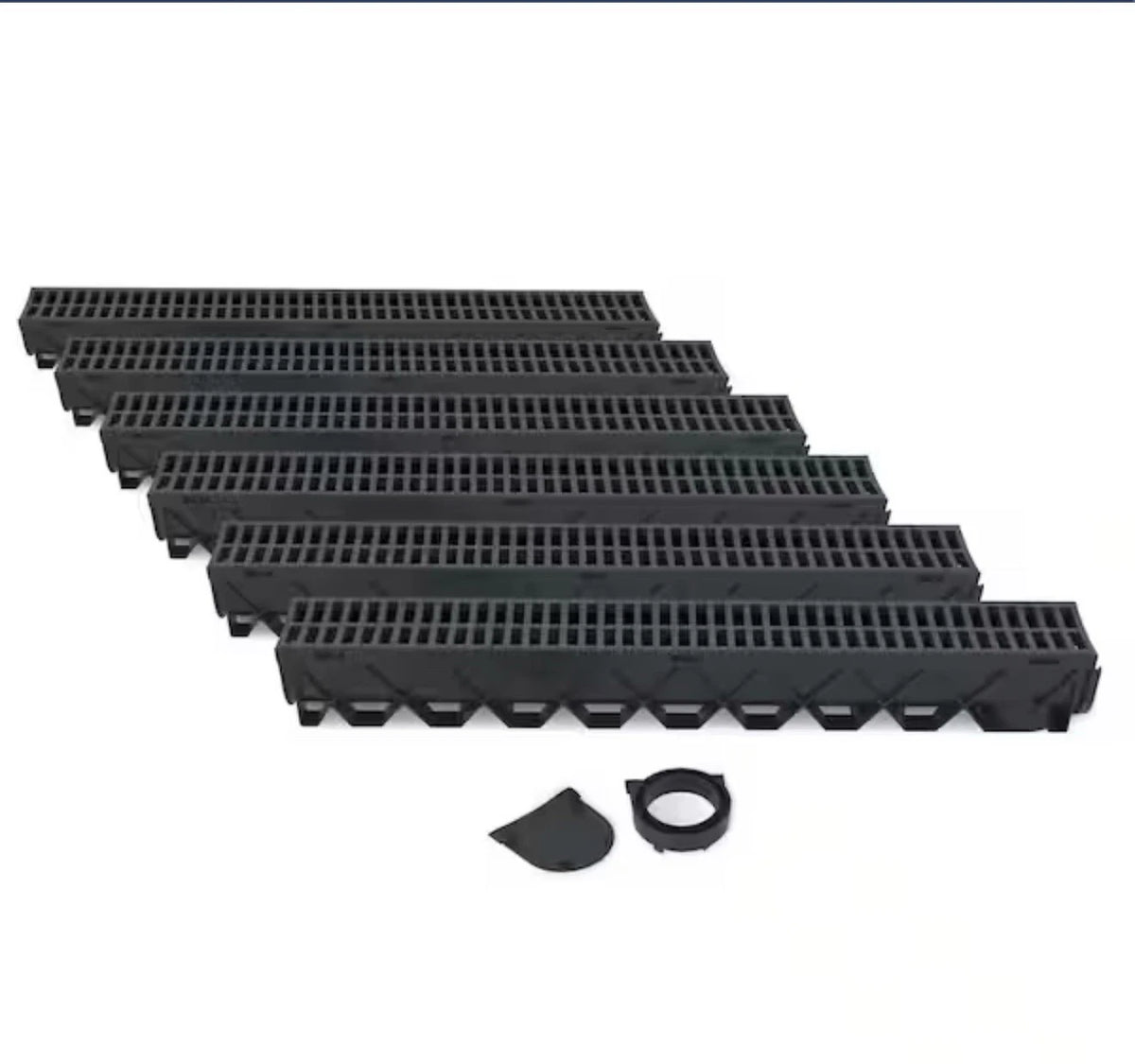

6-PACK RELN 003118 Storm Drain 5"x39.4" Channel Drain Kit w/ Black Grate
Typical uses include driveways, pools and walkways wherever excess water and erosion are a problem. The systems design allows maximum flexibility in length of channels, corners and intersections. You can connect Storm Drain Channel to 4 in. sewer pipe with bottom or end outlet connection. The tough durable and lightweight UV stabilized plastic channel includes concave black grate to suit domestic pedestrian and vehicle traffic.
Channel lengths are interlocking, no clips required
Recommended for medium duty pneumatic tire traffic, autos and light trucks at speeds less than 20-mph
Manufactured from 100% recycled plastic (polypropylene)

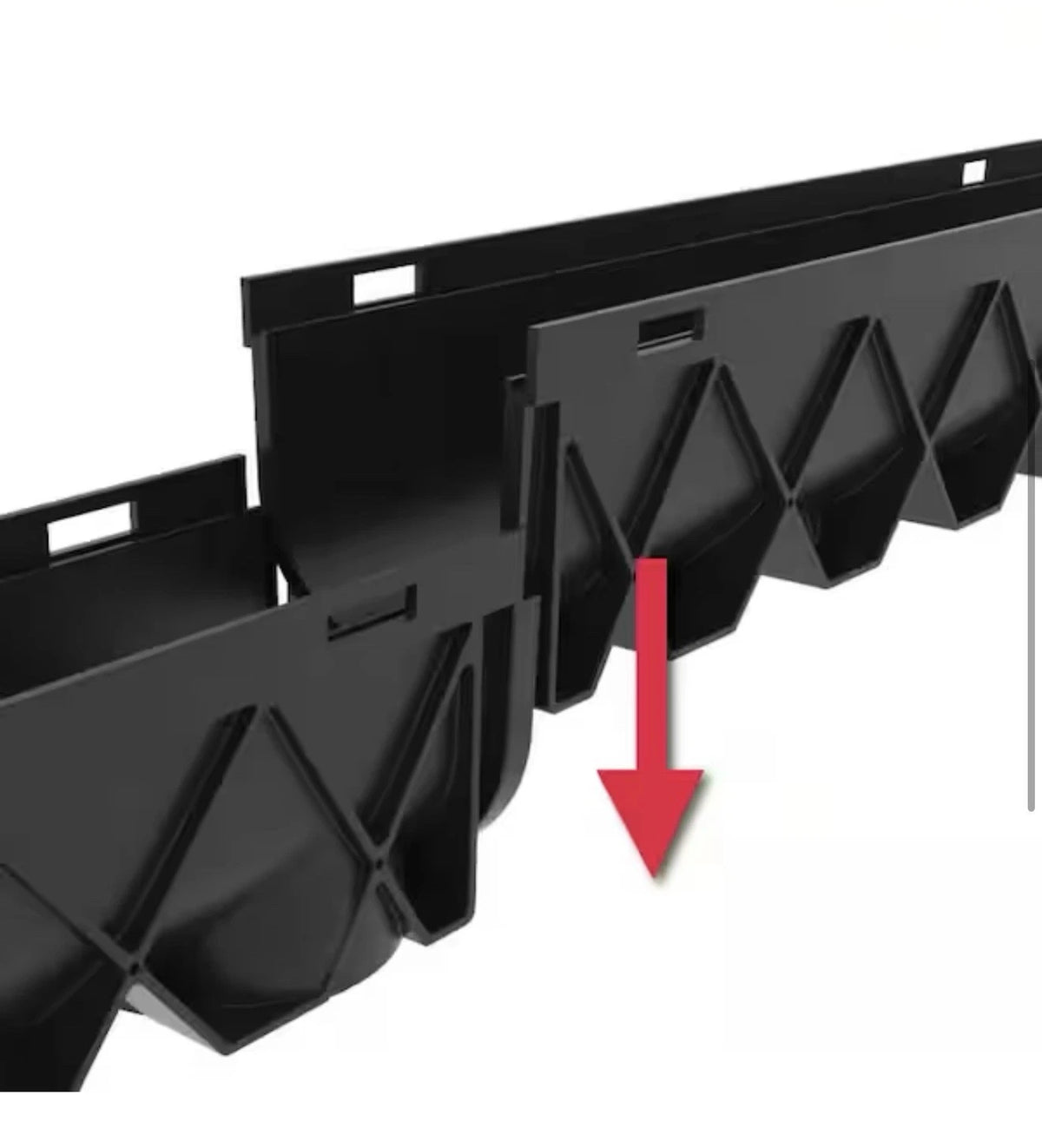

Anti-floatation channel feet prevent floating when encased in fill material
U shaped channel, corners and tees are designed to prevent water pooling
Cross braced ribs are designed into the body for strength and rigidity

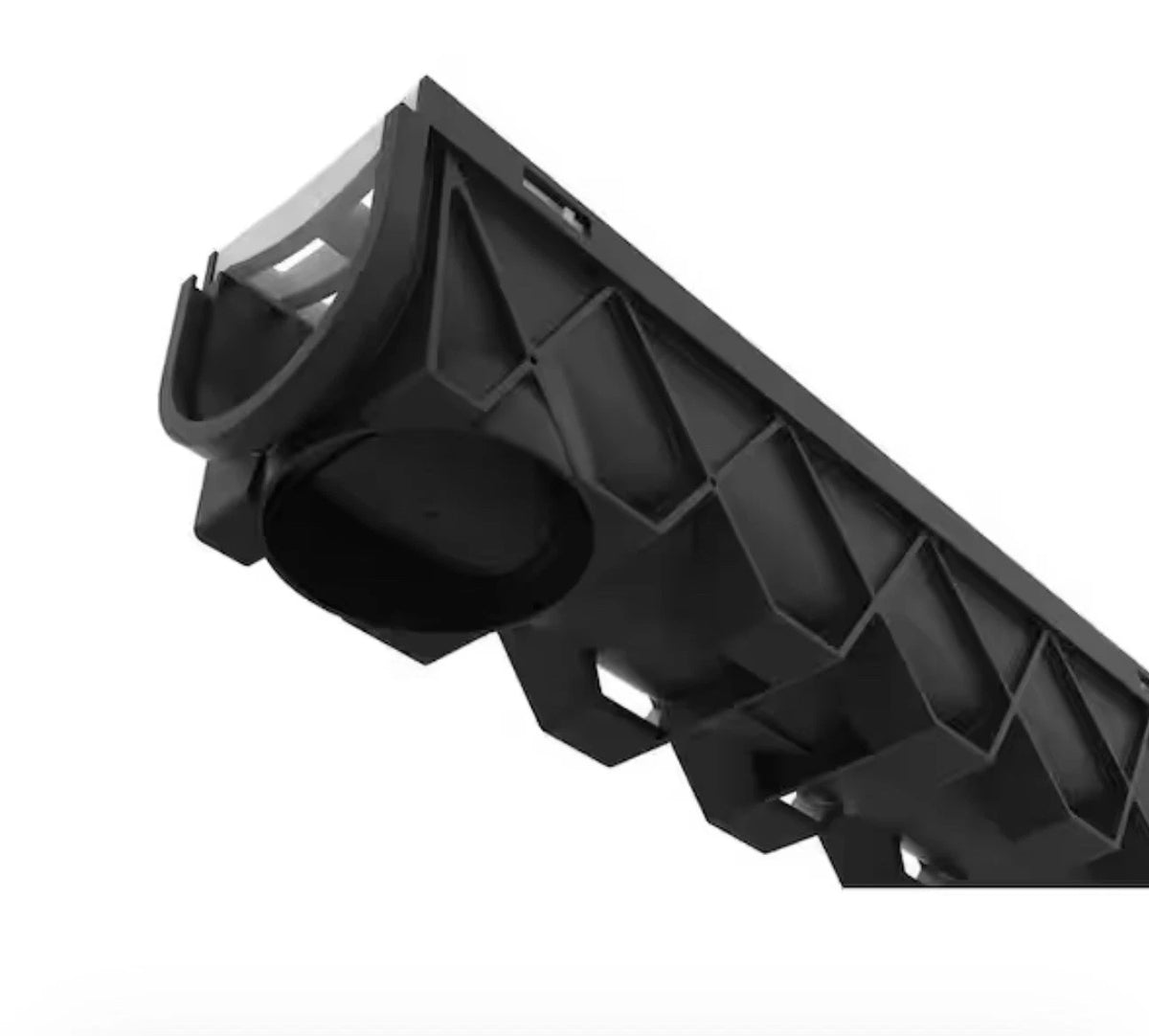

End outlet accommodates 4 in. sewer pipe or 4 in. corrugated pipe and/or Sch. 40 pipe with adaptor
Grates clip in and out, no screws required

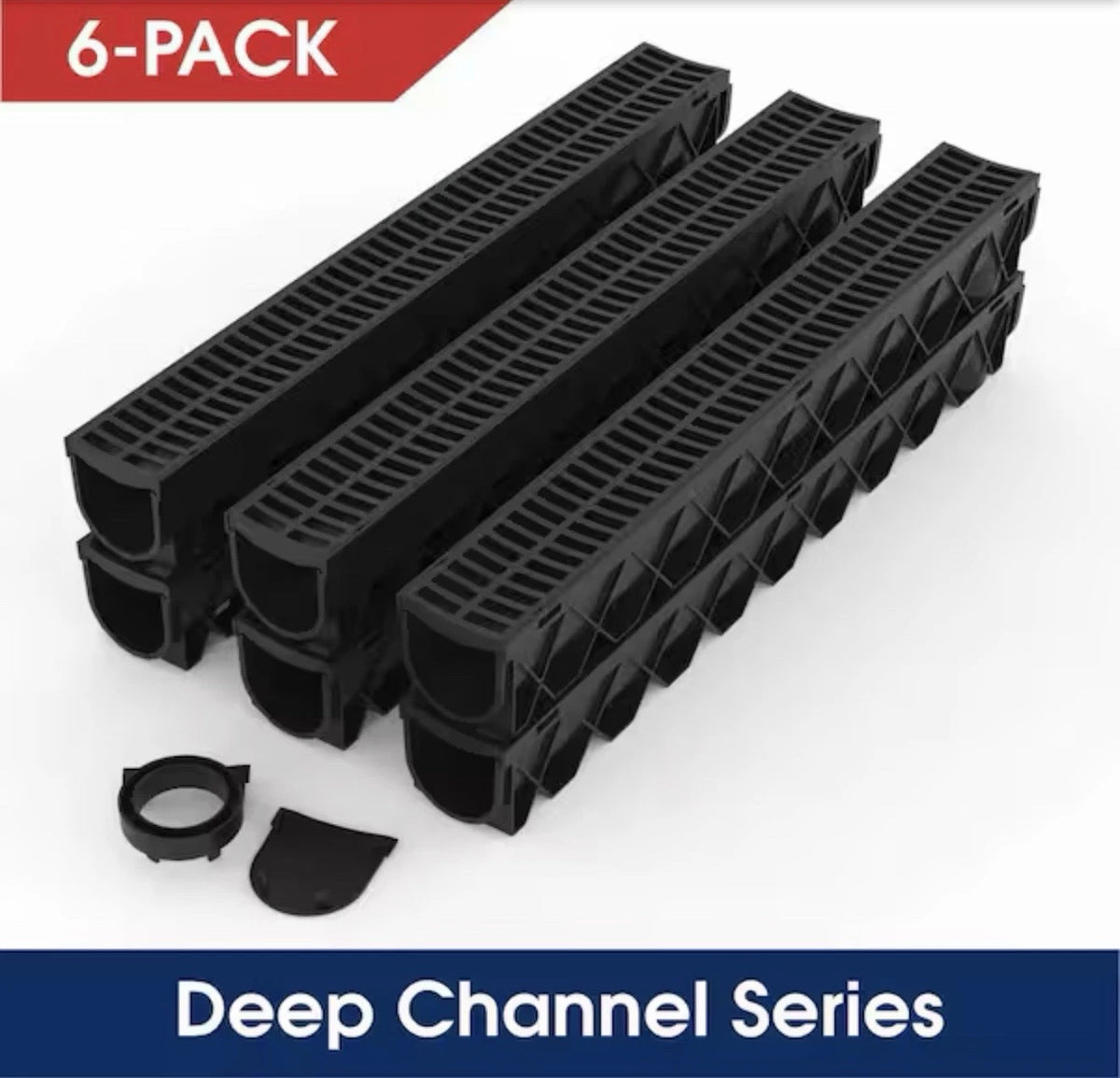

Kit includes 6 in. x 40 in. channels, 1 x end cap and 1 x end outlet
To create a water-tight connection, or to seal the Storm Drain End Cap to channel drain length, purchase RELN Part 000309 - Silicone 2.8 oz. Black Superior Watertight Drainage Sealant

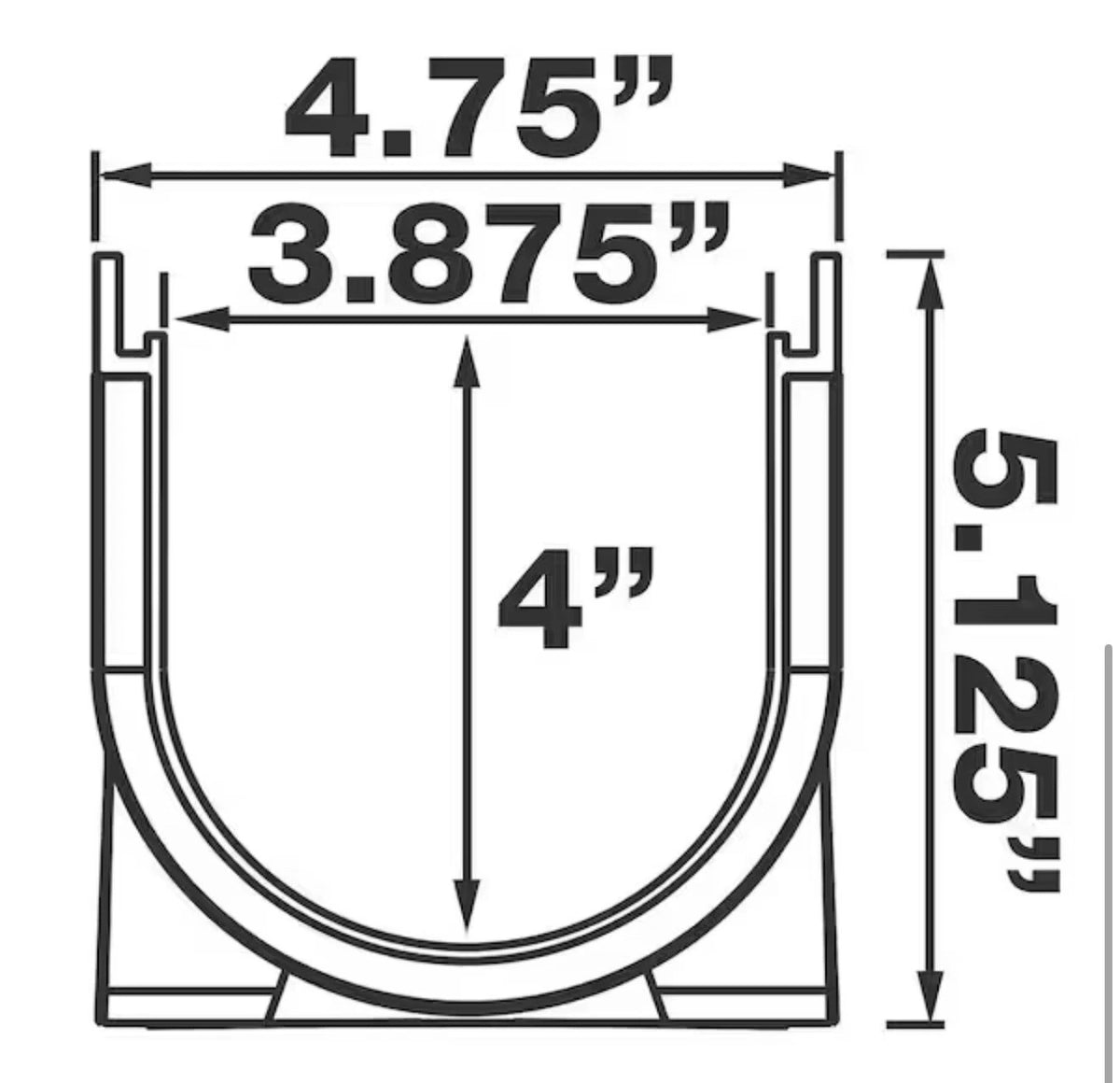

Dimensions
Max. Compatible Pipe Size (In.)
4"
Min. Compatible Pipe Size (In.)
4"
Product Depth (in.)
5.4 in
Product Length (in.)
240 in
Product Width (in.)
4.75 in
Details
Color/Finish
Black
Compatible Area of Use
Downspout Runoff, Driveway, Neighbor Runoff, Patio, Pool Deck, Walkways
Material
Polypropylene
Pack size:
6
$104.49
