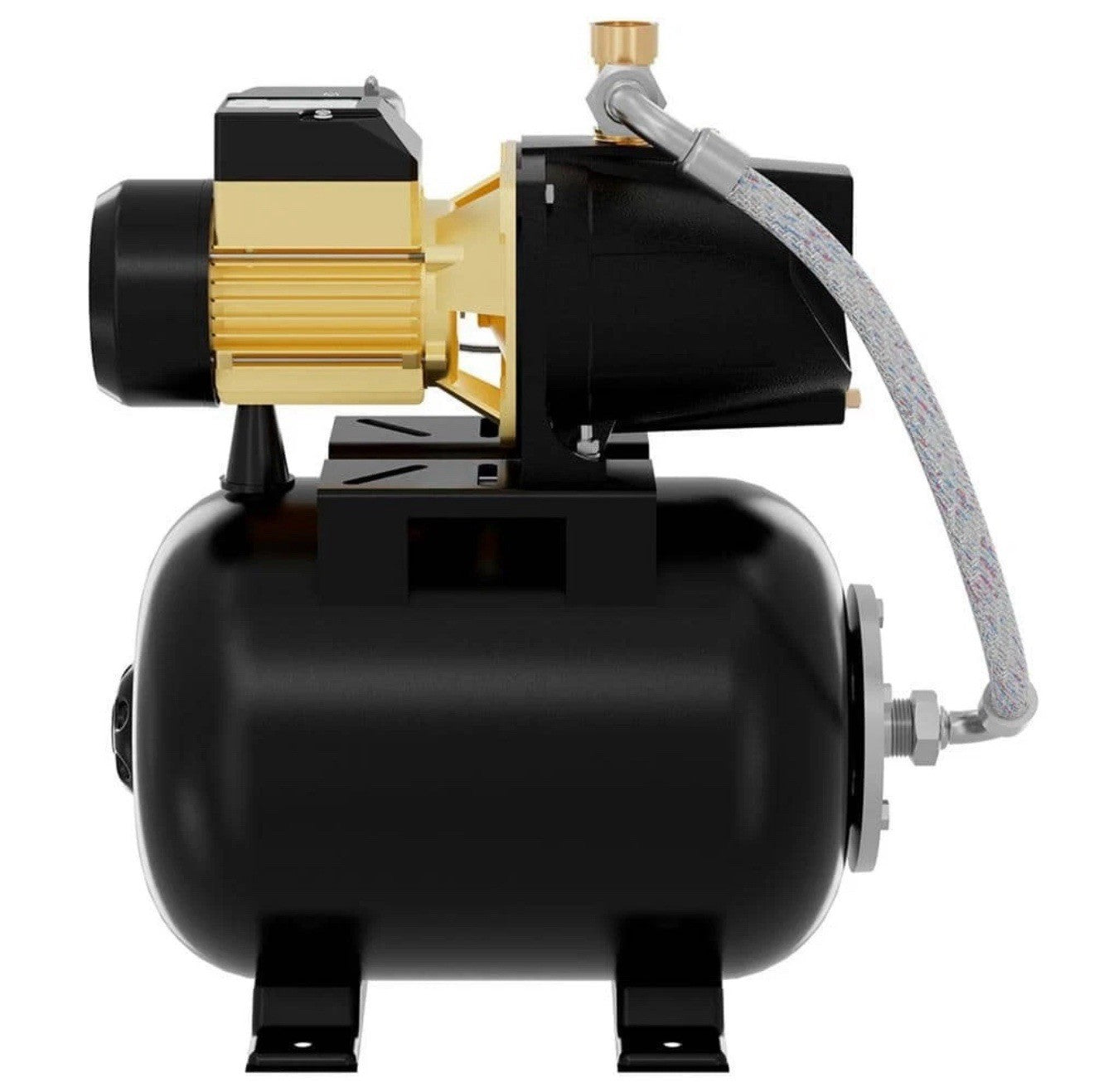

1/2 HP Shallow Well Jet Pump w/6 gal. Tank
Complete pump and tank system for water depths to 25 feet Totally enclosed fan cooled motor protects the internals Pumps up to 7.2 GPM at 40 PSI with a max pressure of 66 PSI

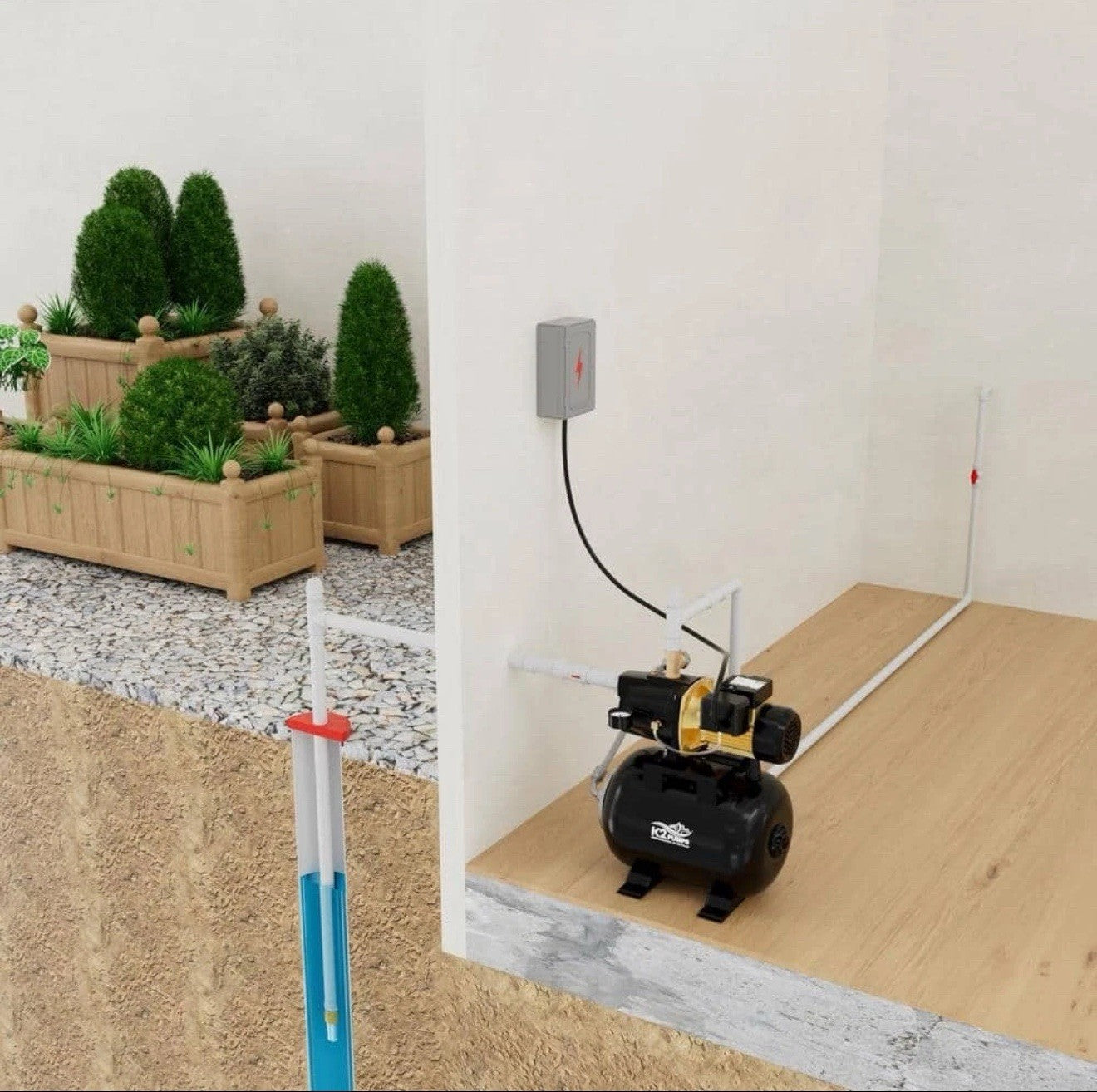

The K2 Jet/Tank system includes a 1/2 HP cast iron shallow well jet pump, 6 gallon precharged tank and stainless steel braided hose and fittings to connect the pump to the tank. The system may be used for water depths to 25 ft. which includes drilled wells, driven wells, bored wells, creeks, lakes, ponds, and other water sources when the distance to the water is 25 ft. or less. Typical applications would be water supply for small homes, cabins, farms, low-flow sprinkler systems, and utility water. The pump includes a 30-50 pressure switch for automatic operation. 1 in. NPT suction and 1 in. NPT discharge.
Dual voltage, 115/230V motor is preset at 230 volts and has a built-in voltage switch for easy conversion to 115 volts; see instructions Totally Enclosed Fan Cooled (TEFC) motor protects motor internals from the elements, energy efficient PSC design reduces operating cost Self-priming after pump housing is initially filled and foot valve or check valve is installed Pre-mounted 30-50 pressure switch for automated operation, also includes 100 PSI gauge for monitoring pressure 1 in. NPT suction and 1 in. NPT discharge Certified to both NSF/ANSI CAN 61 standard for safe drinking water and NSF/ANSI 372 lead-free standard 3 year warranty
Amperage (A):6.6 A|Cord Length (ft.):0 ft|Discharge Flow 0 ft. @ 40 PSI (gallons/hour):432|Discharge Flow 0 ft. @ 40 PSI (gallons/min):7|Discharge Flow 25 ft. @ 40 PSI (gallons/hour):270|Discharge Flow 25 ft. @ 40 PSI (gallons/min):5|Features:No Additional Features|Head Pressure (ft.):150|Housing Material:Steel|Impeller Material:Thermoplastic|Included:With Tank|Inlet Connection:Threaded female|Jet Pump Product Type:Shallow Well|Maximum Horsepower (hp):1/2|Maximum Pressure (PSI):66|Maximum Working Temperature (F):95|Minimum working temperature (F):32|Number of Impellers:1|Outlet Connection:Threaded female|Pack Size:1|Power Type Required:AC|Product Weight (lb.):31.7 lb|Pump Switch Type:Pressure|Vertical Lift (ft.):25|Voltage:115v,230v|Certifications and Listings:CSA Listed|Manufacturer Warranty:3 Years|Product Depth (in.):12 in|Product Height (in.):20.3 in|Product Width (in.):18.9 in
Item Specifics
UPC6948217090190
MPNWPS05002TK
BrandK2
TypeShallow Well Pumps
Item Length12 in
Item Width18.9 in
Item Height20.3 in
Manufacturer warranty may not apply on liquidation items.
$284.05
Complete pump and tank system for water depths to 25 feet Totally enclosed fan cooled motor protects the internals Pumps up to 7.2 GPM at 40 PSI with a max pressure of 66 PSI
The K2 Jet/Tank system includes a 1/2 HP cast iron shallow well jet pump, 6 gallon precharged tank and stainless steel braided hose and fittings to connect the pump to the tank. The system may be used for water depths to 25 ft. which includes drilled wells, driven wells, bored wells, creeks, lakes, ponds, and other water sources when the distance to the water is 25 ft. or less. Typical applications would be water supply for small homes, cabins, farms, low-flow sprinkler systems, and utility water. The pump includes a 30-50 pressure switch for automatic operation. 1 in. NPT suction and 1 in. NPT discharge.
Dual voltage, 115/230V motor is preset at 230 volts and has a built-in voltage switch for easy conversion to 115 volts; see instructions Totally Enclosed Fan Cooled (TEFC) motor protects motor internals from the elements, energy efficient PSC design reduces operating cost Self-priming after pump housing is initially filled and foot valve or check valve is installed Pre-mounted 30-50 pressure switch for automated operation, also includes 100 PSI gauge for monitoring pressure 1 in. NPT suction and 1 in. NPT discharge Certified to both NSF/ANSI CAN 61 standard for safe drinking water and NSF/ANSI 372 lead-free standard 3 year warranty
Amperage (A):6.6 A|Cord Length (ft.):0 ft|Discharge Flow 0 ft. @ 40 PSI (gallons/hour):432|Discharge Flow 0 ft. @ 40 PSI (gallons/min):7|Discharge Flow 25 ft. @ 40 PSI (gallons/hour):270|Discharge Flow 25 ft. @ 40 PSI (gallons/min):5|Features:No Additional Features|Head Pressure (ft.):150|Housing Material:Steel|Impeller Material:Thermoplastic|Included:With Tank|Inlet Connection:Threaded female|Jet Pump Product Type:Shallow Well|Maximum Horsepower (hp):1/2|Maximum Pressure (PSI):66|Maximum Working Temperature (F):95|Minimum working temperature (F):32|Number of Impellers:1|Outlet Connection:Threaded female|Pack Size:1|Power Type Required:AC|Product Weight (lb.):31.7 lb|Pump Switch Type:Pressure|Vertical Lift (ft.):25|Voltage:115v,230v|Certifications and Listings:CSA Listed|Manufacturer Warranty:3 Years|Product Depth (in.):12 in|Product Height (in.):20.3 in|Product Width (in.):18.9 in
Item Specifics
UPC6948217090190
MPNWPS05002TK
BrandK2
TypeShallow Well Pumps
Item Length12 in
Item Width18.9 in
Item Height20.3 in
Manufacturer warranty may not apply on liquidation items.
