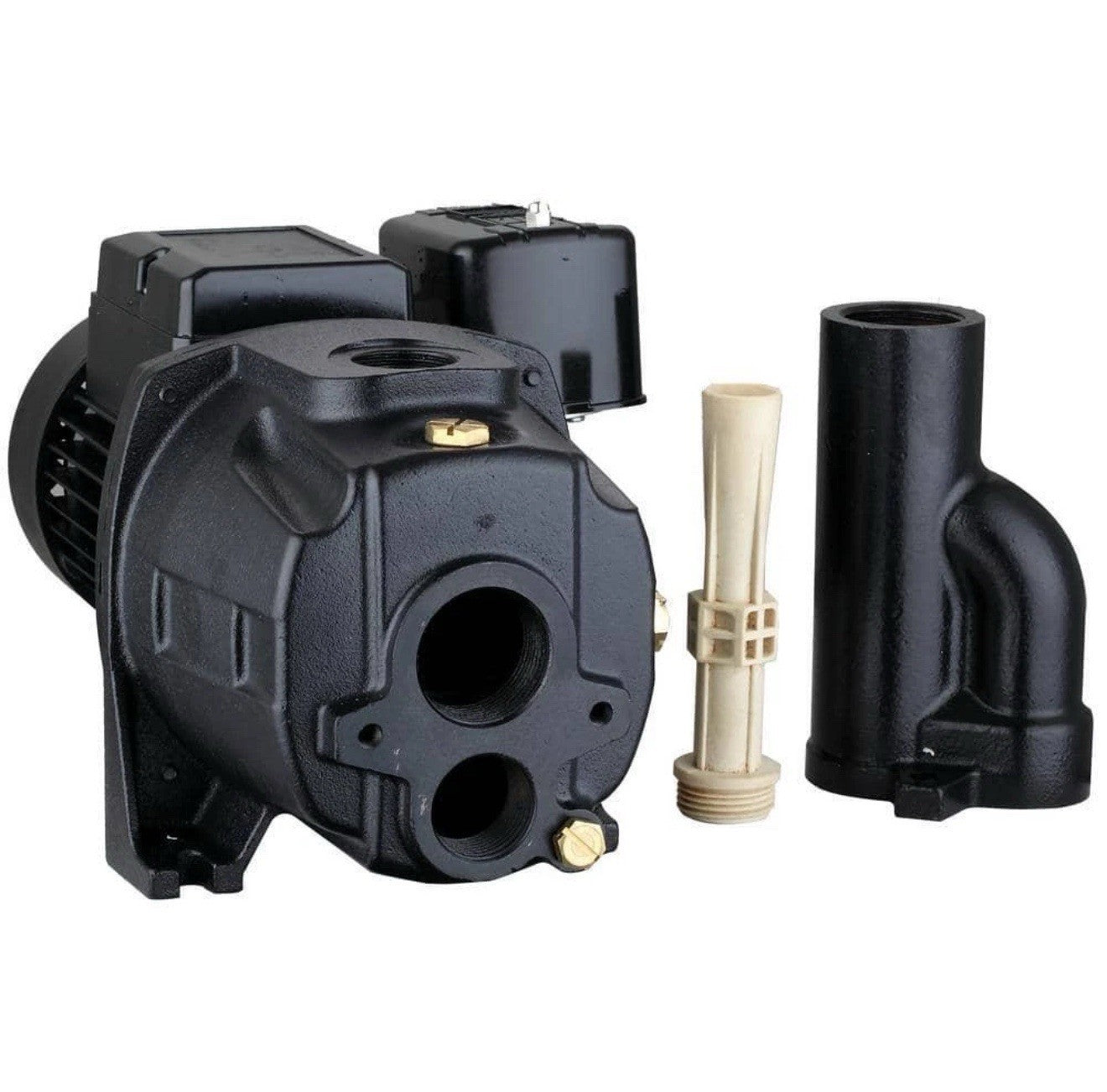

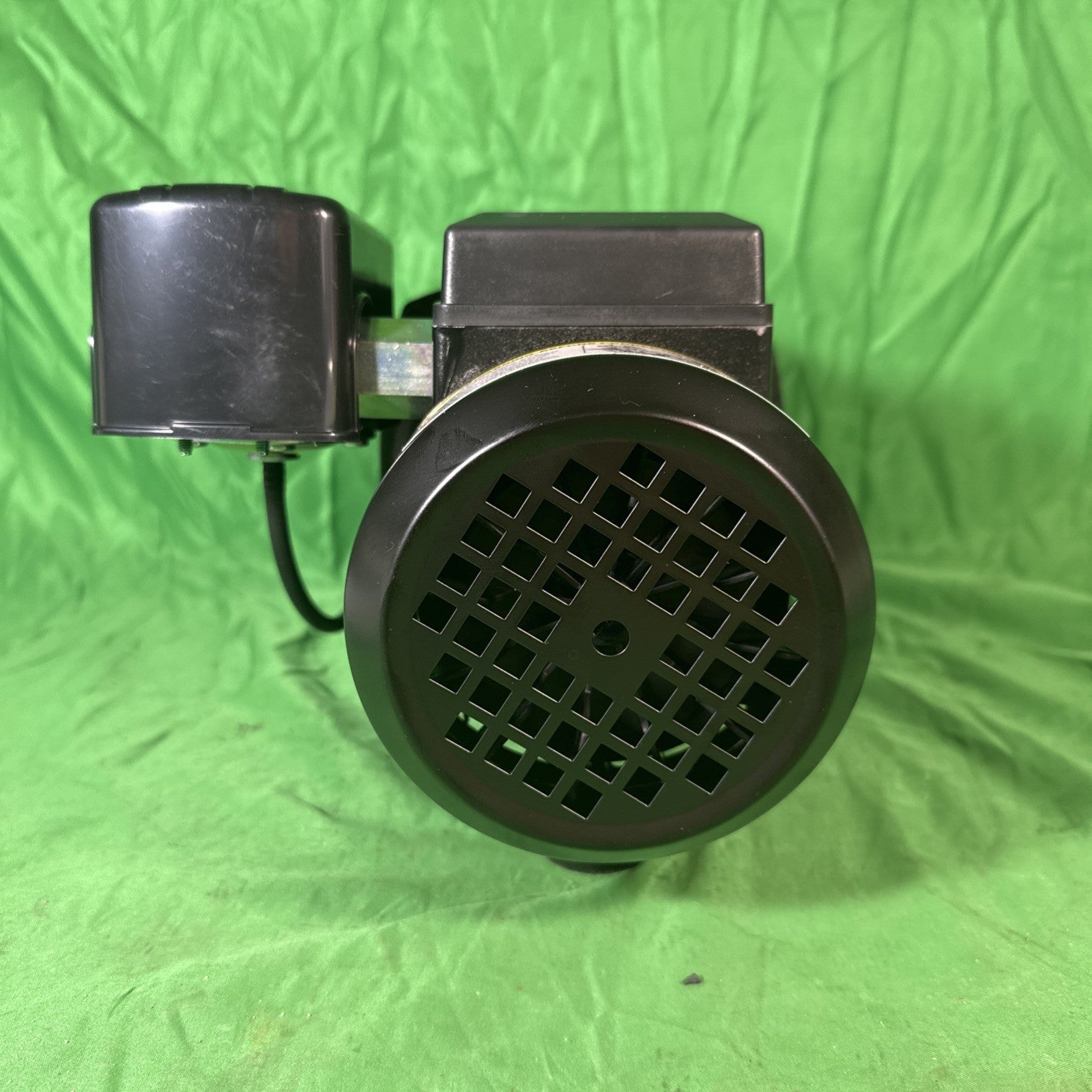

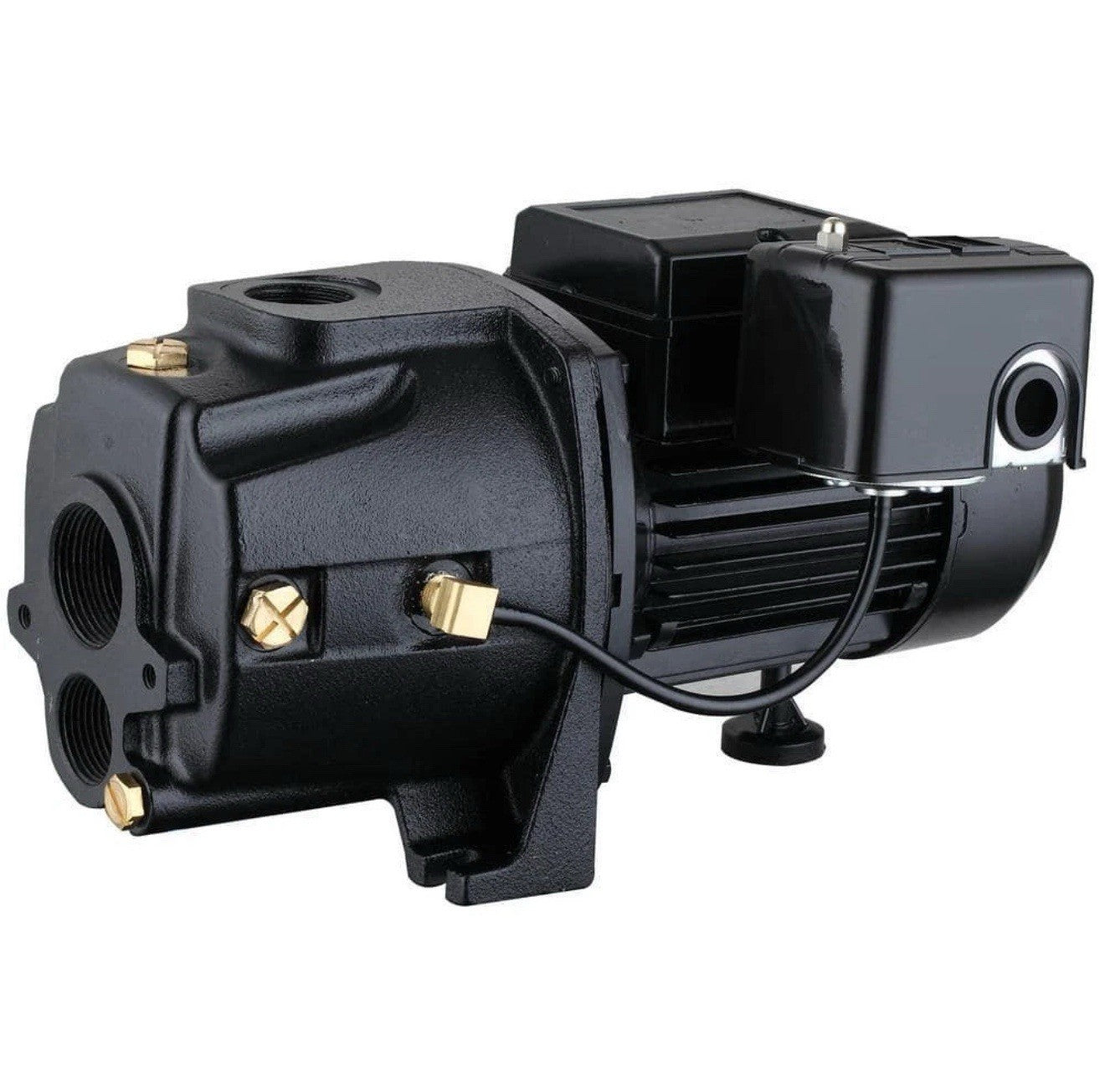

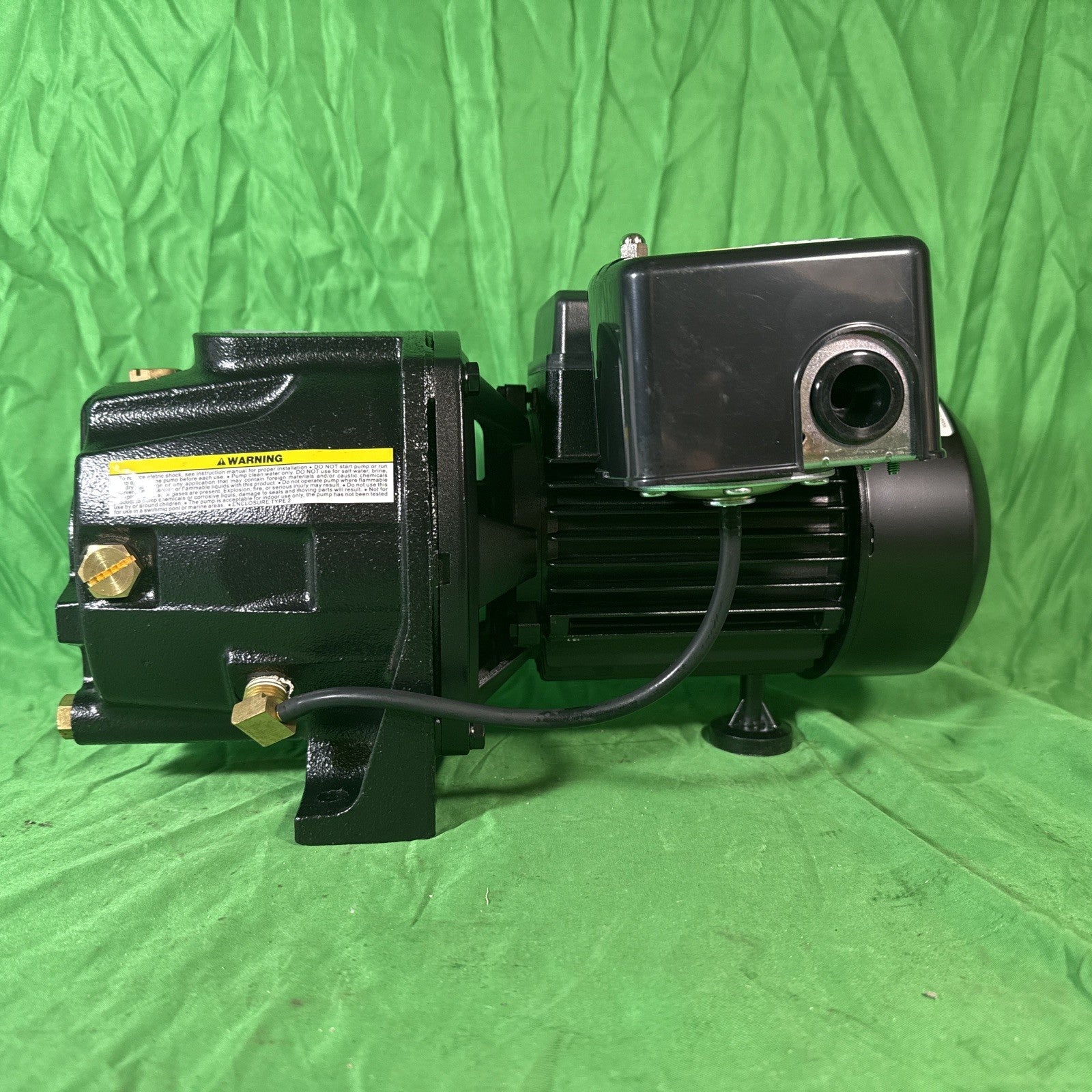

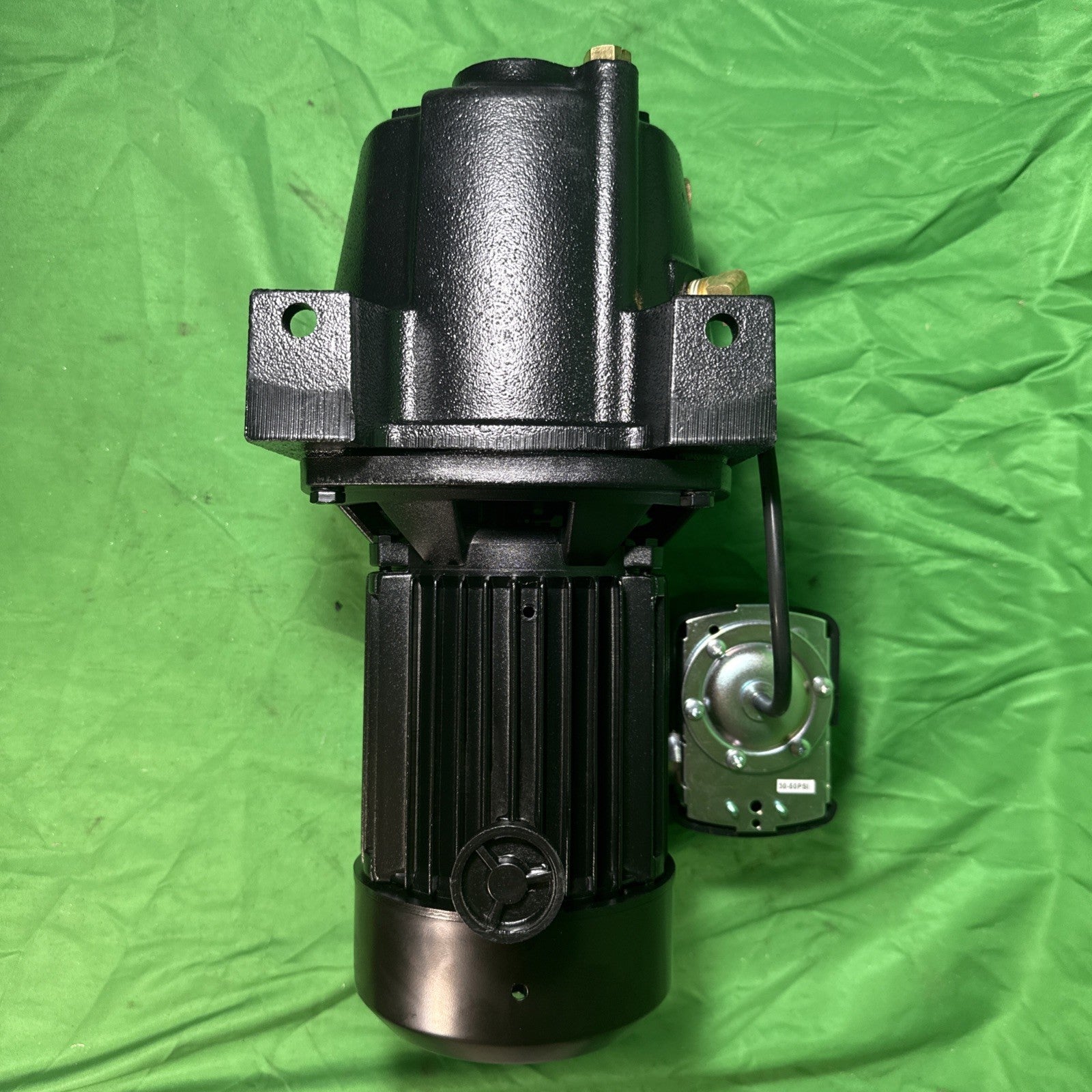

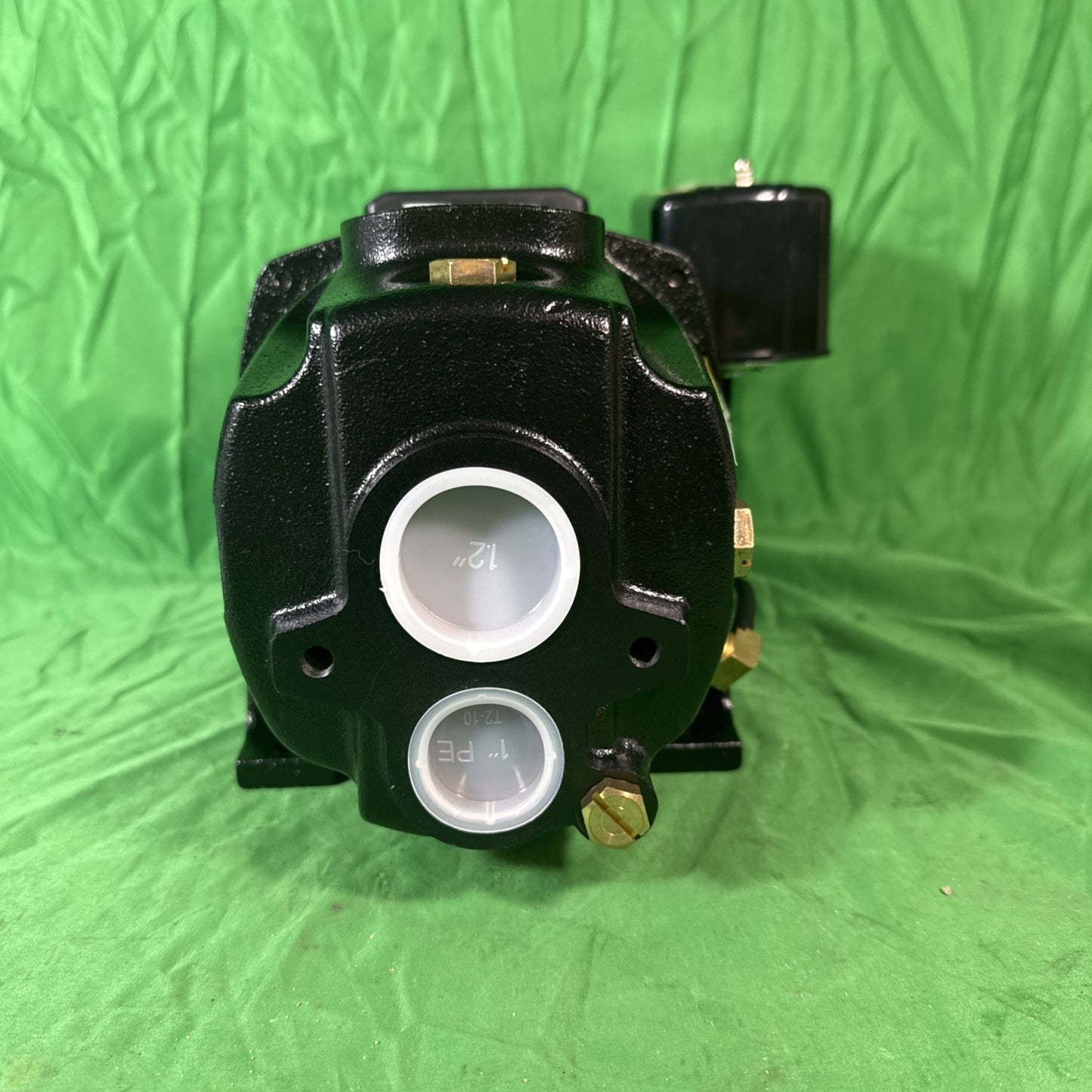

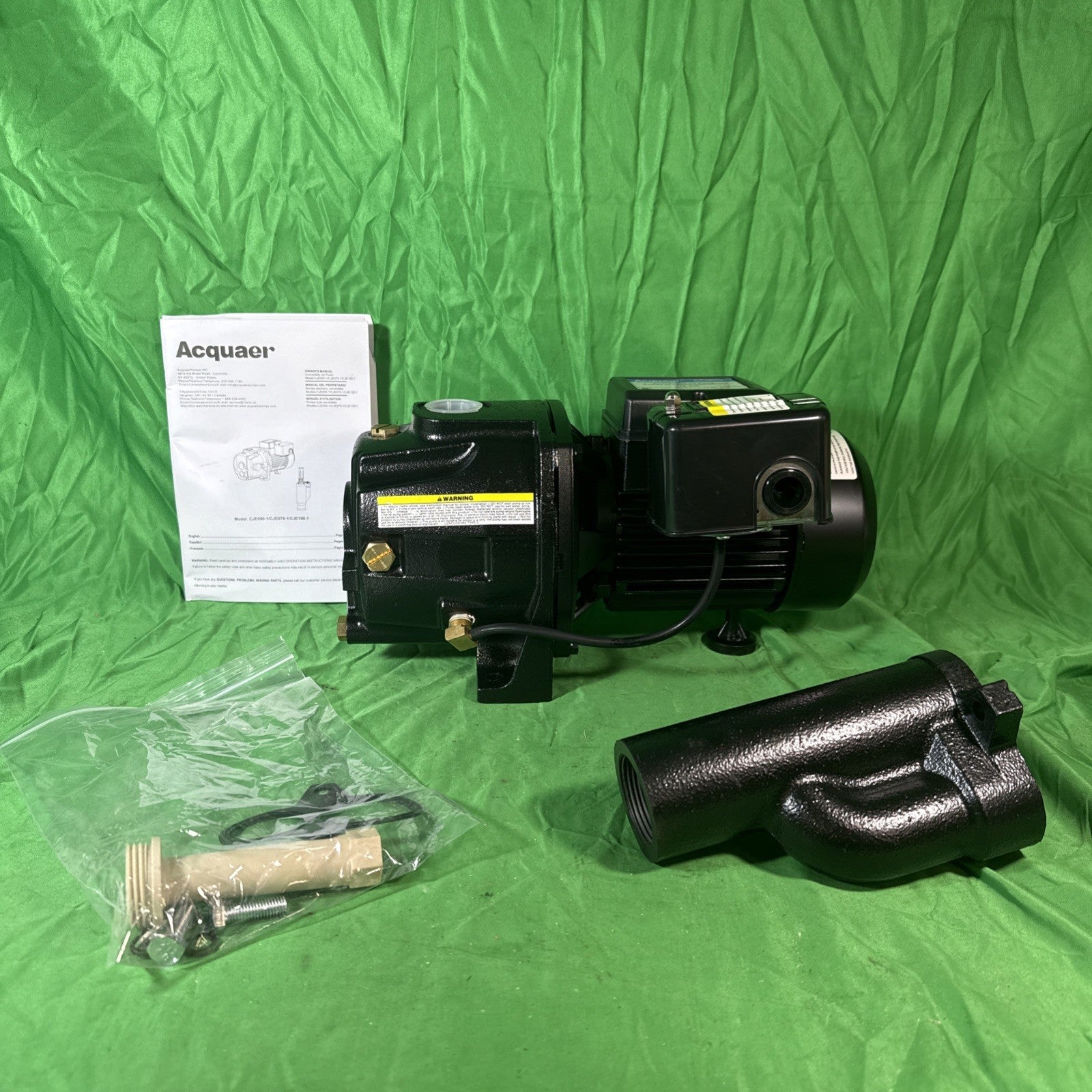

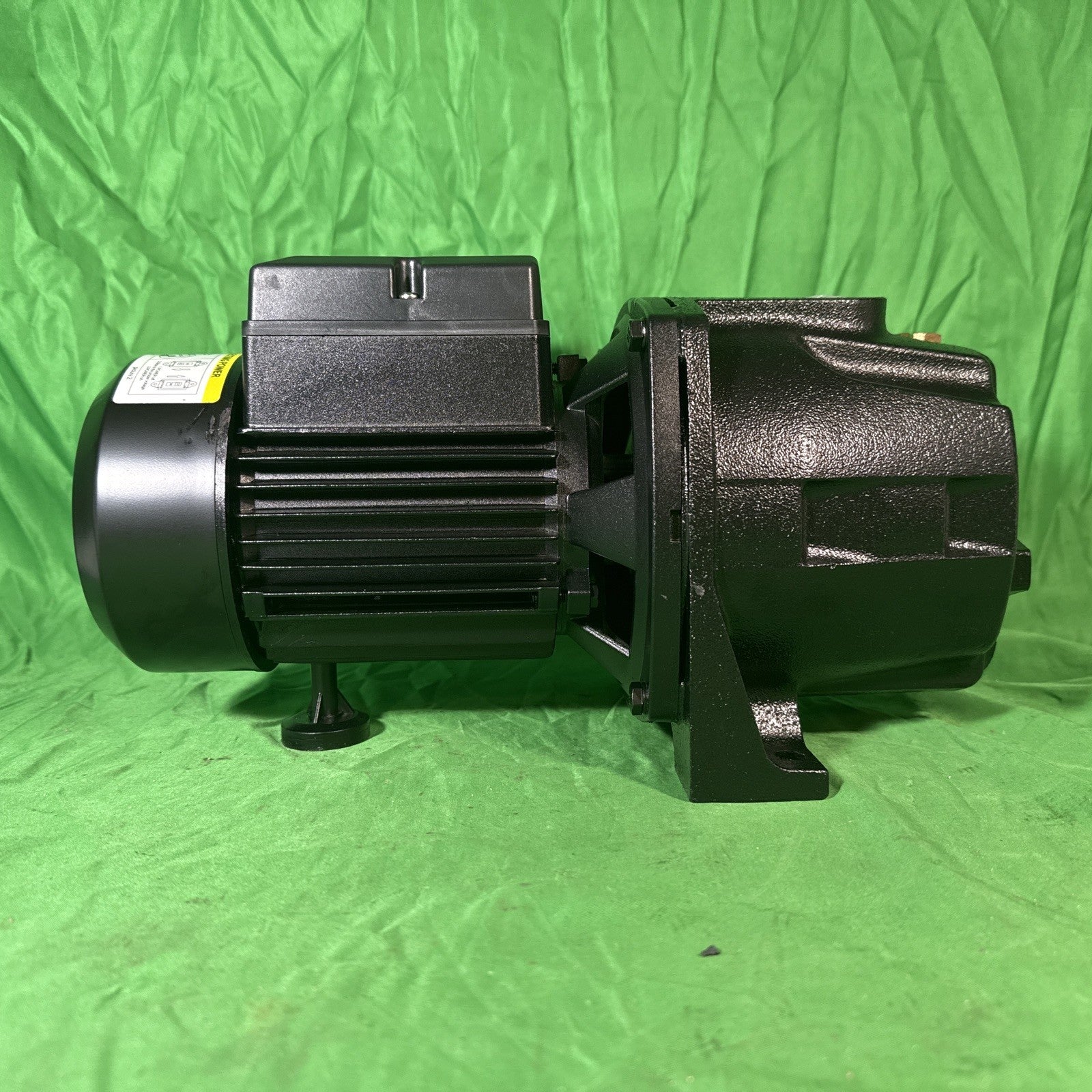

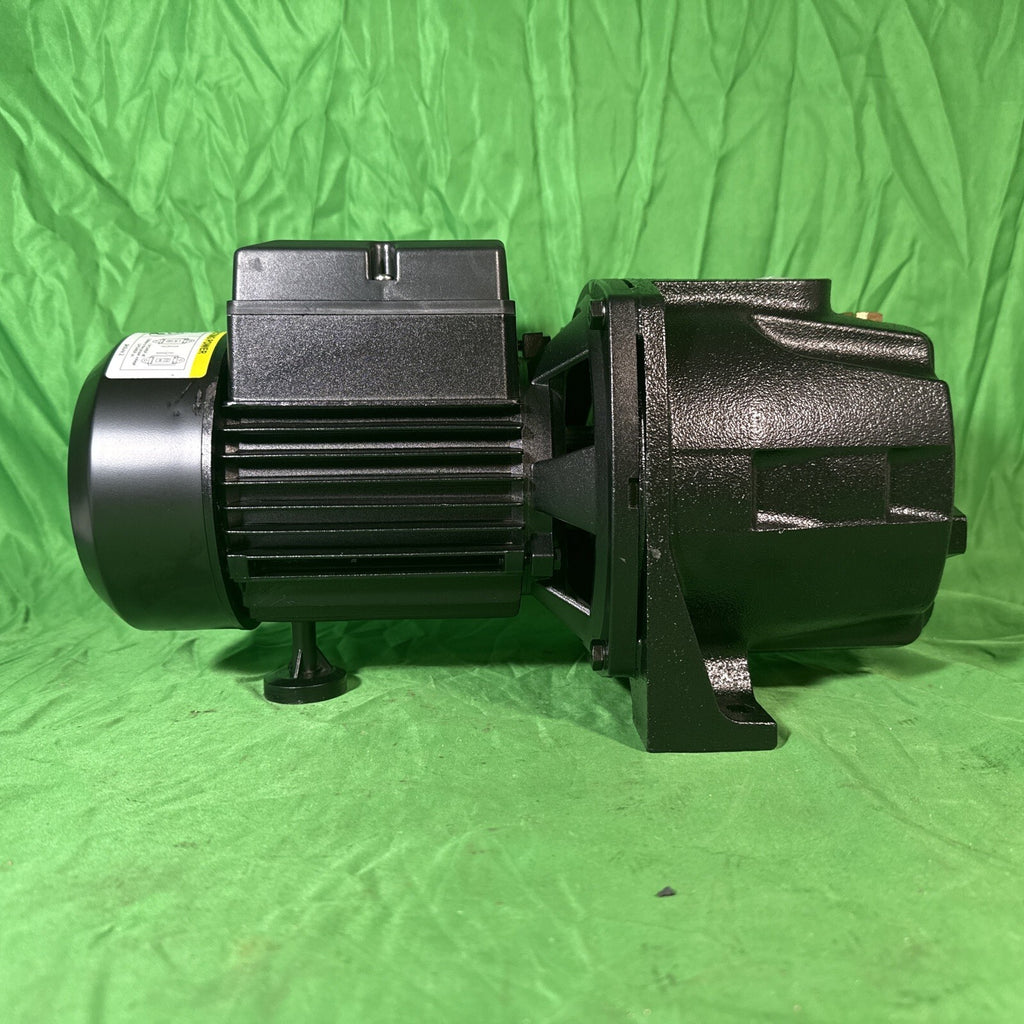

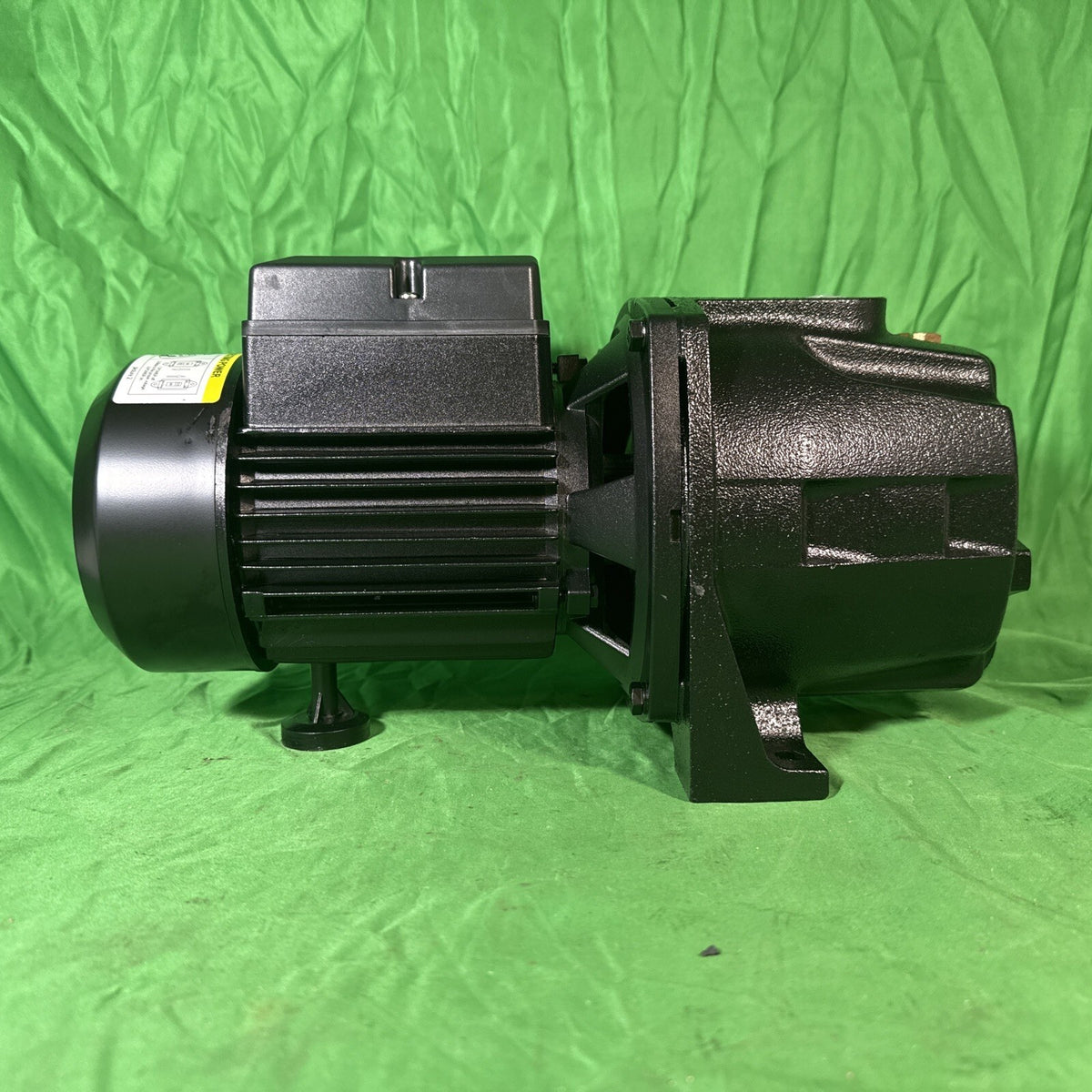

1/2 HP 115/230-VOLT CAST IRON CONVERTIBLE JET PUMP
FEATURES
Used to pump water from a groundwater well into your house
Can operate pump automatically when used with a tank
Jet well pump used for wells up to 100 ft. deep
DESCRIPTION
Acquaer well pumps are used to pump water from a groundwater well into your house. There are three types of well pumps: shallow well jet pump, deep well jet pump and convertible jet pumps. Choice of pump is based on the different depths of the well. You can also operate the pump automatically when used with a tank.
Amperage (A): 8.8 A
Cord Length (ft.): 0
Discharge Flow 0 ft. @ 40 PSI (gallons/hour): 1100
Discharge Flow 0 ft. @ 40 PSI (gallons/min): 18
Discharge Flow 25 ft. @ 40 PSI (gallons/hour): 981
Discharge Flow 25 ft. @ 40 PSI (gallons/min): 16.35
Features: Corrosion Resistant,Thermal Overload Protection
Head Pressure (ft.): 128
Housing Material: Cast-Iron
Impeller Material: THERMOPLASTIC
Included: No Additional Items Included

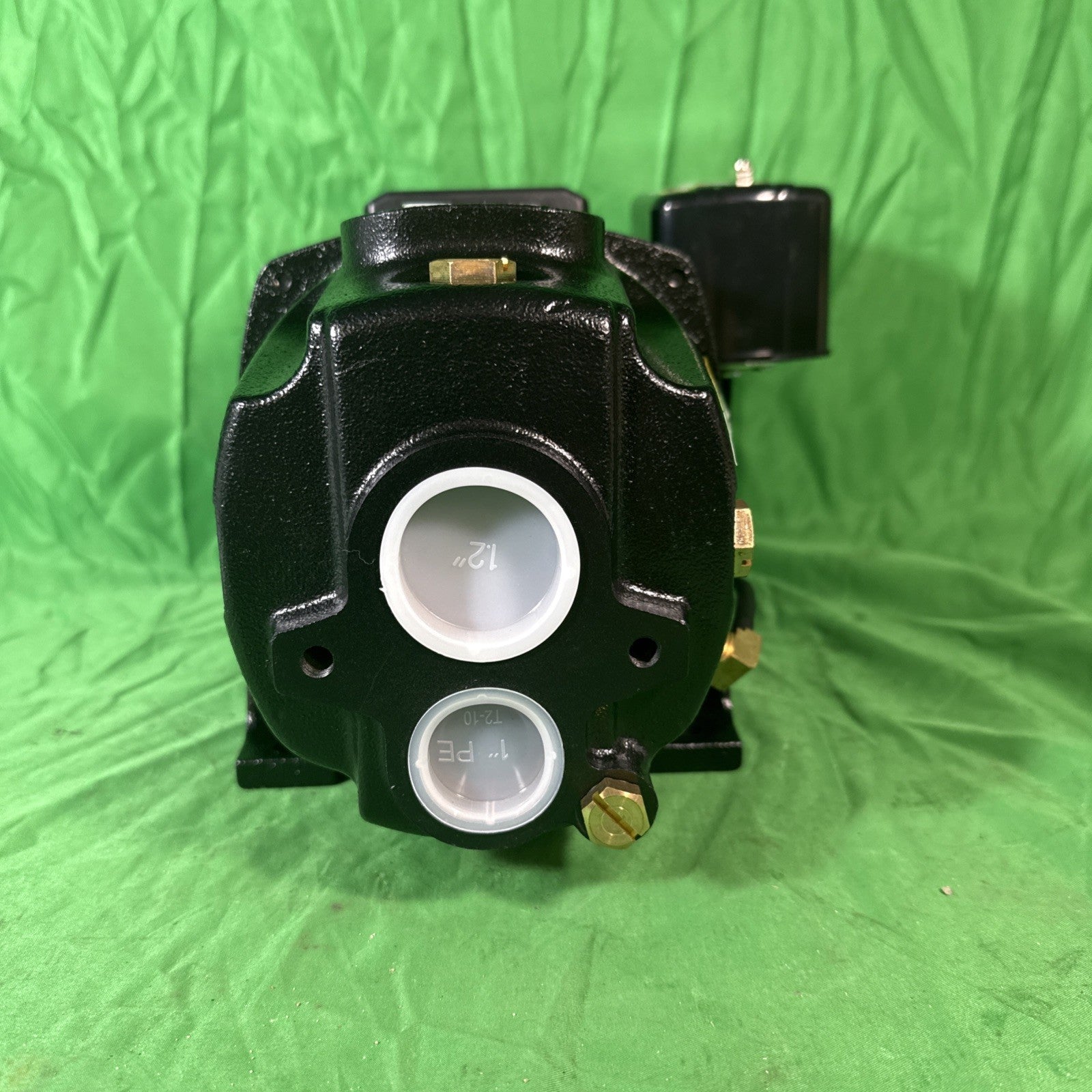

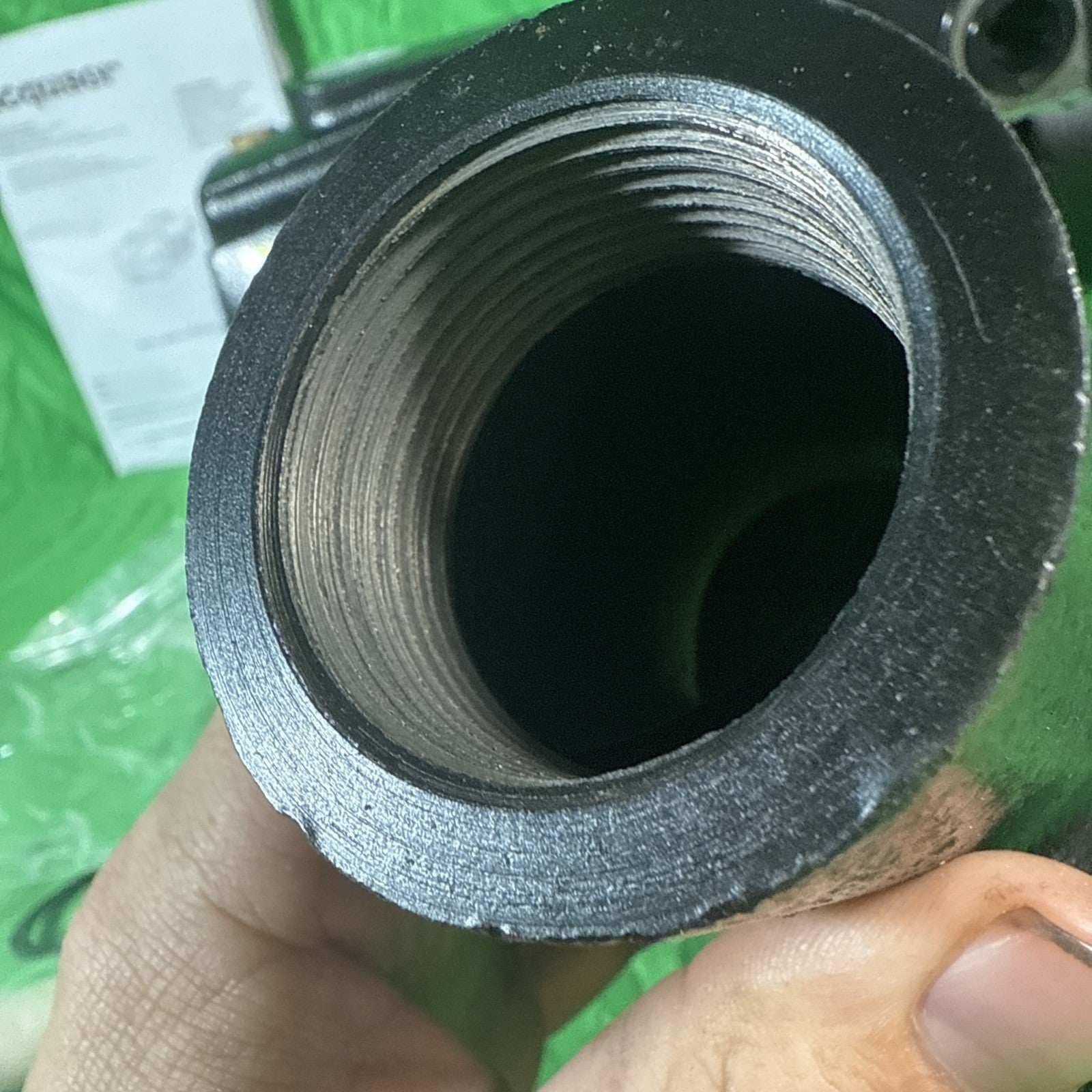

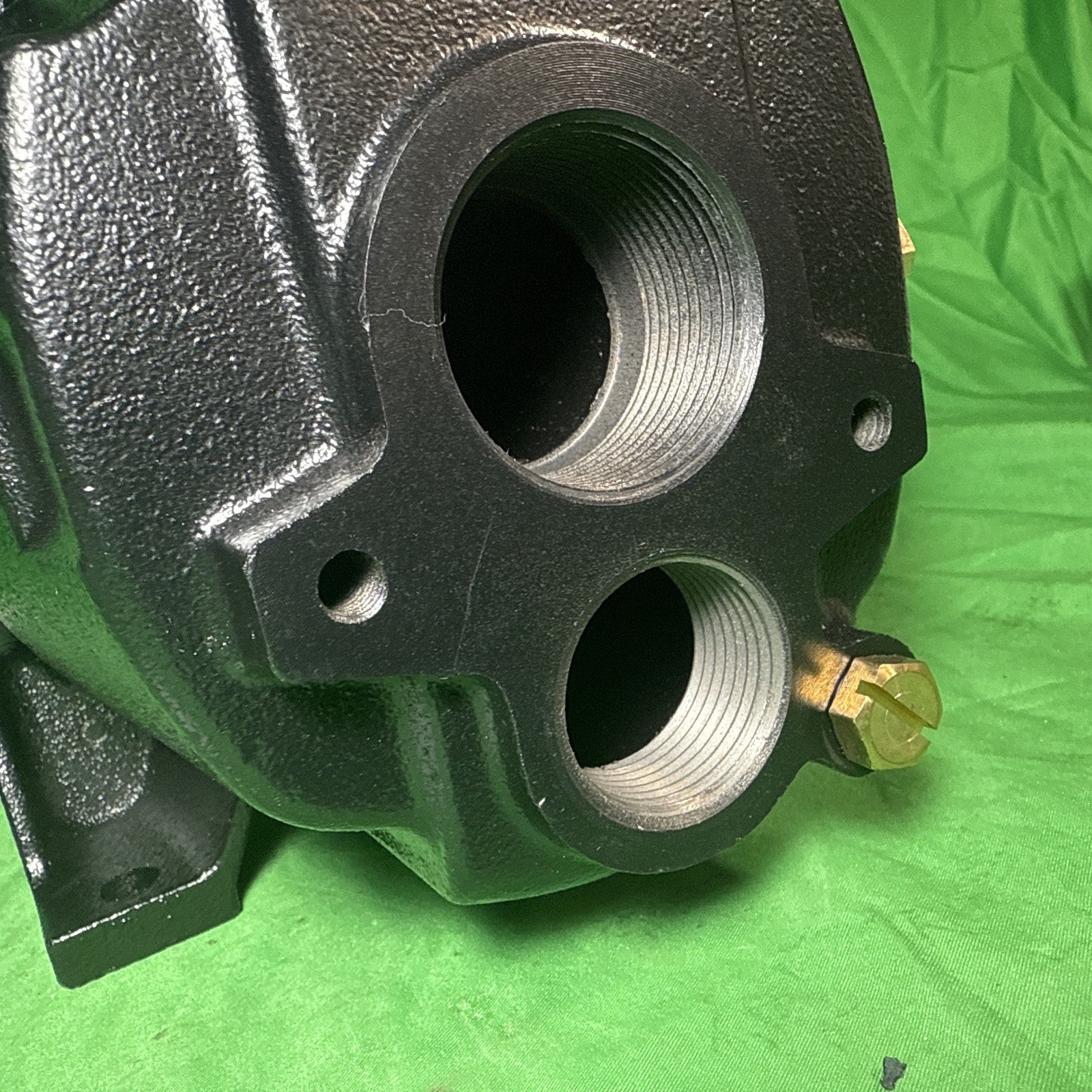

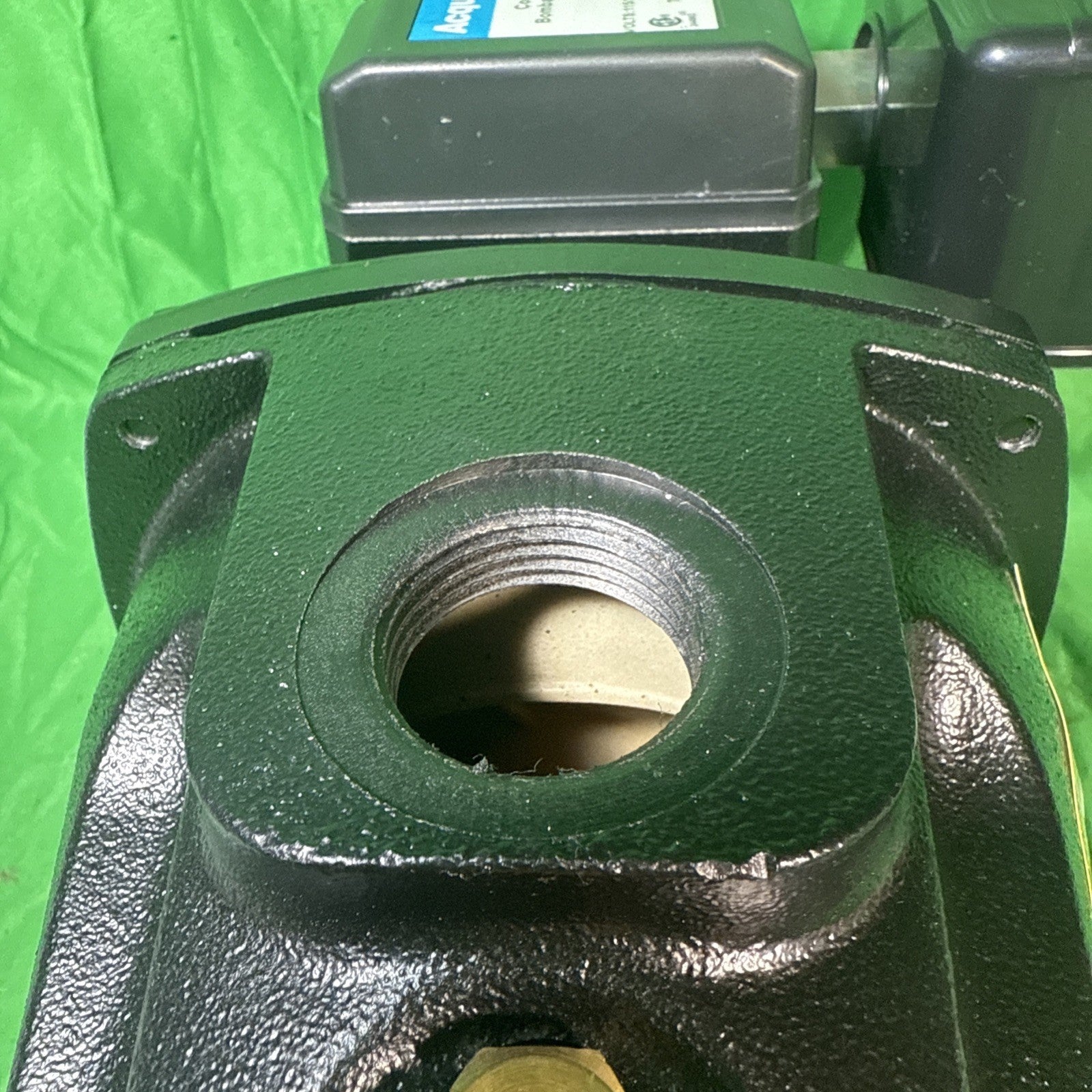

Inlet Connection: Threaded female 1 1/4”

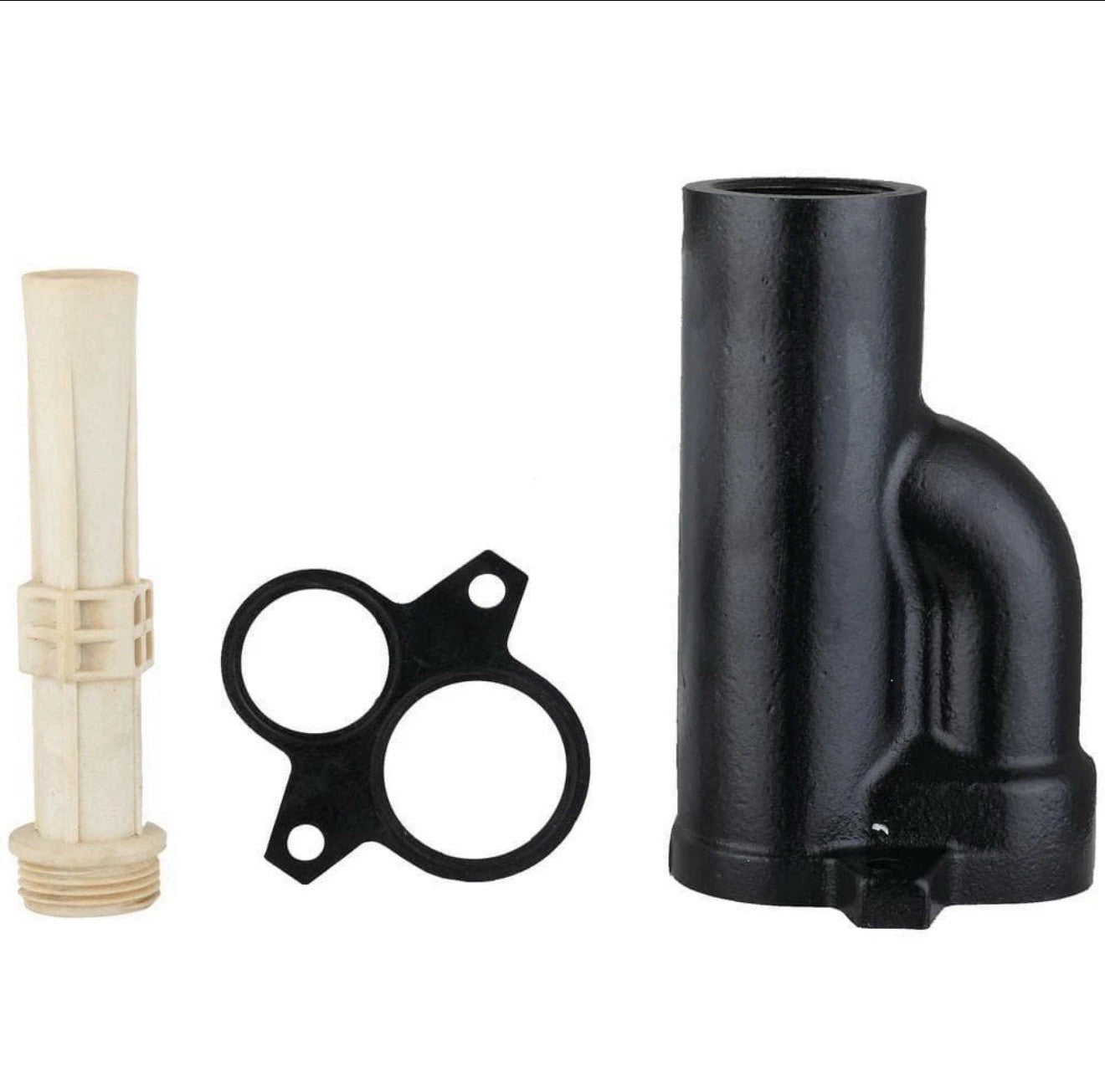

Jet Pump Product Type: Convertible
Maximum Horsepower (hp): 1/2
Maximum Pressure (PSI): 50 PSI
Maximum Working Temperature (F): 100
Minimum working temperature (F): 32
Number of Impellers: 1
Outlet Connection: Threaded female 1”
Pack Size: 1
Power Type Required: AC
Product Weight (lb.): 26 lb

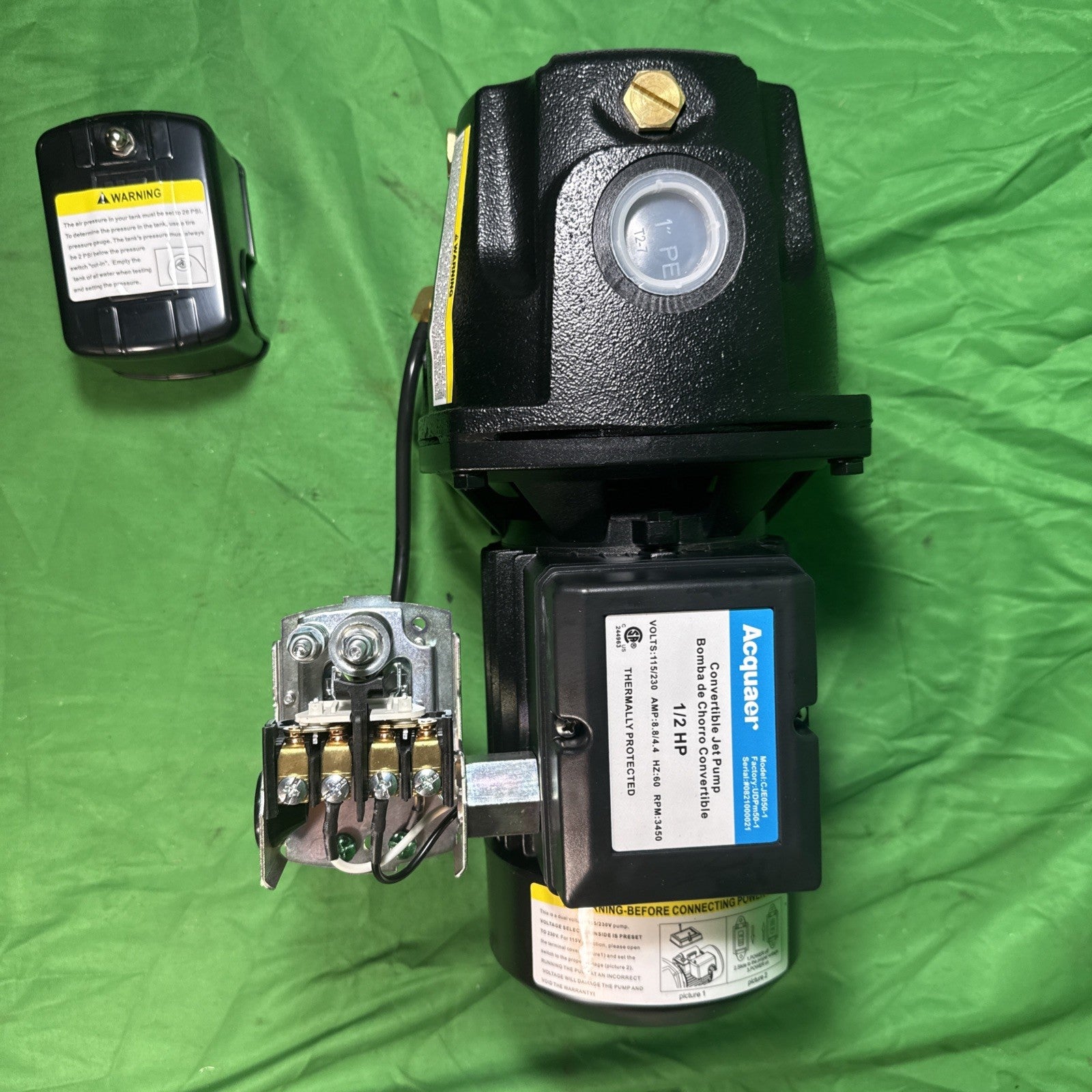

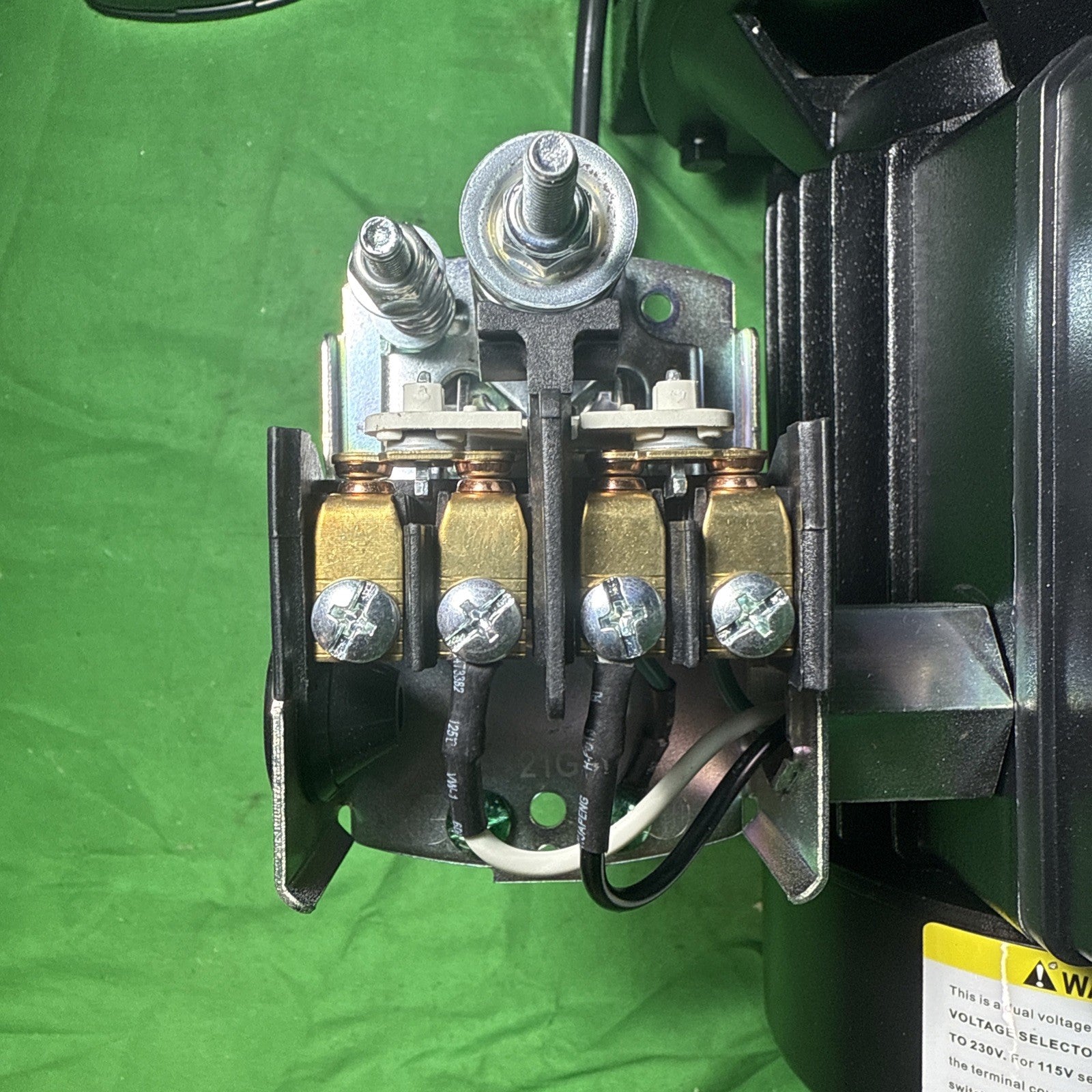

Pump Switch Type: Pressure
Vertical Lift (ft.): 25

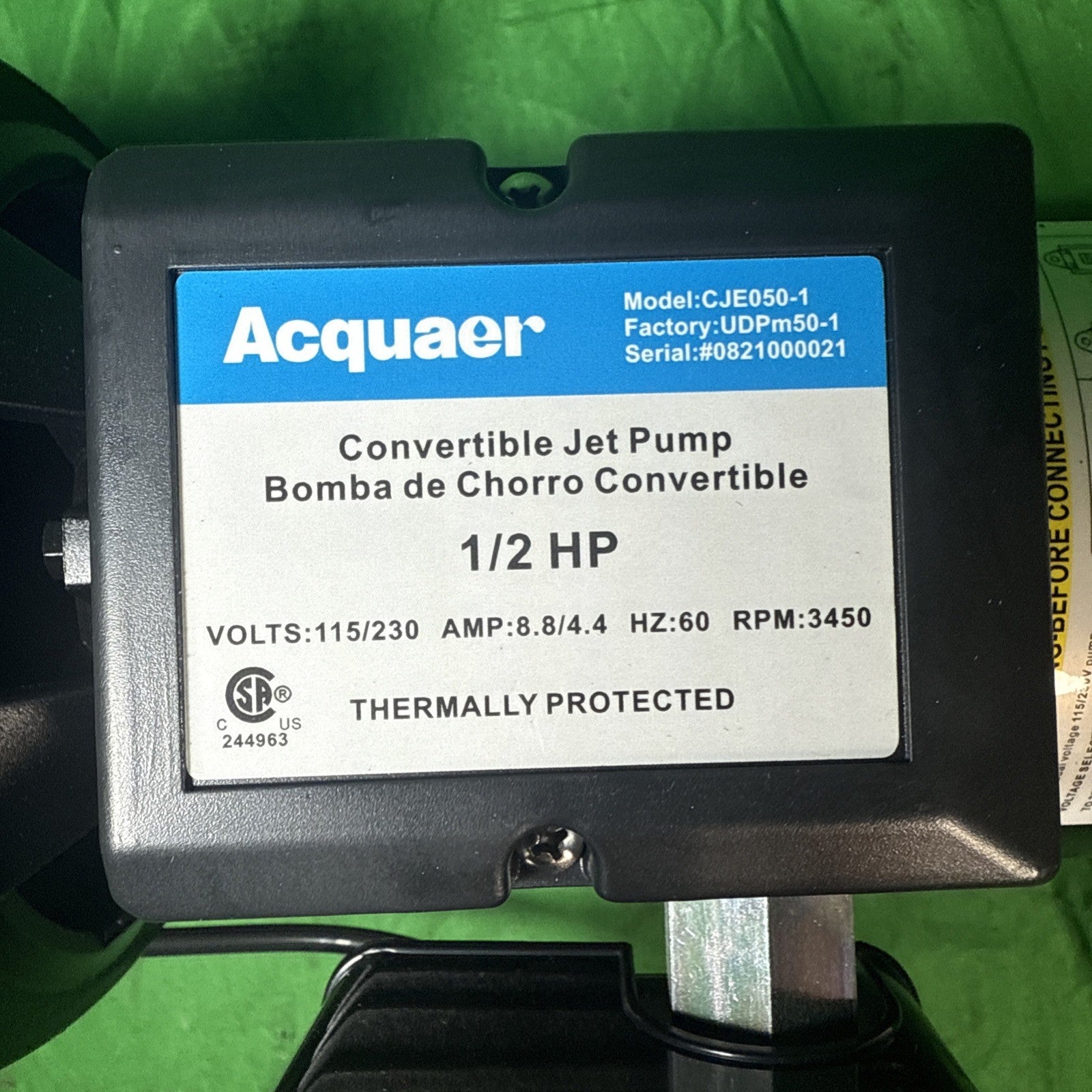

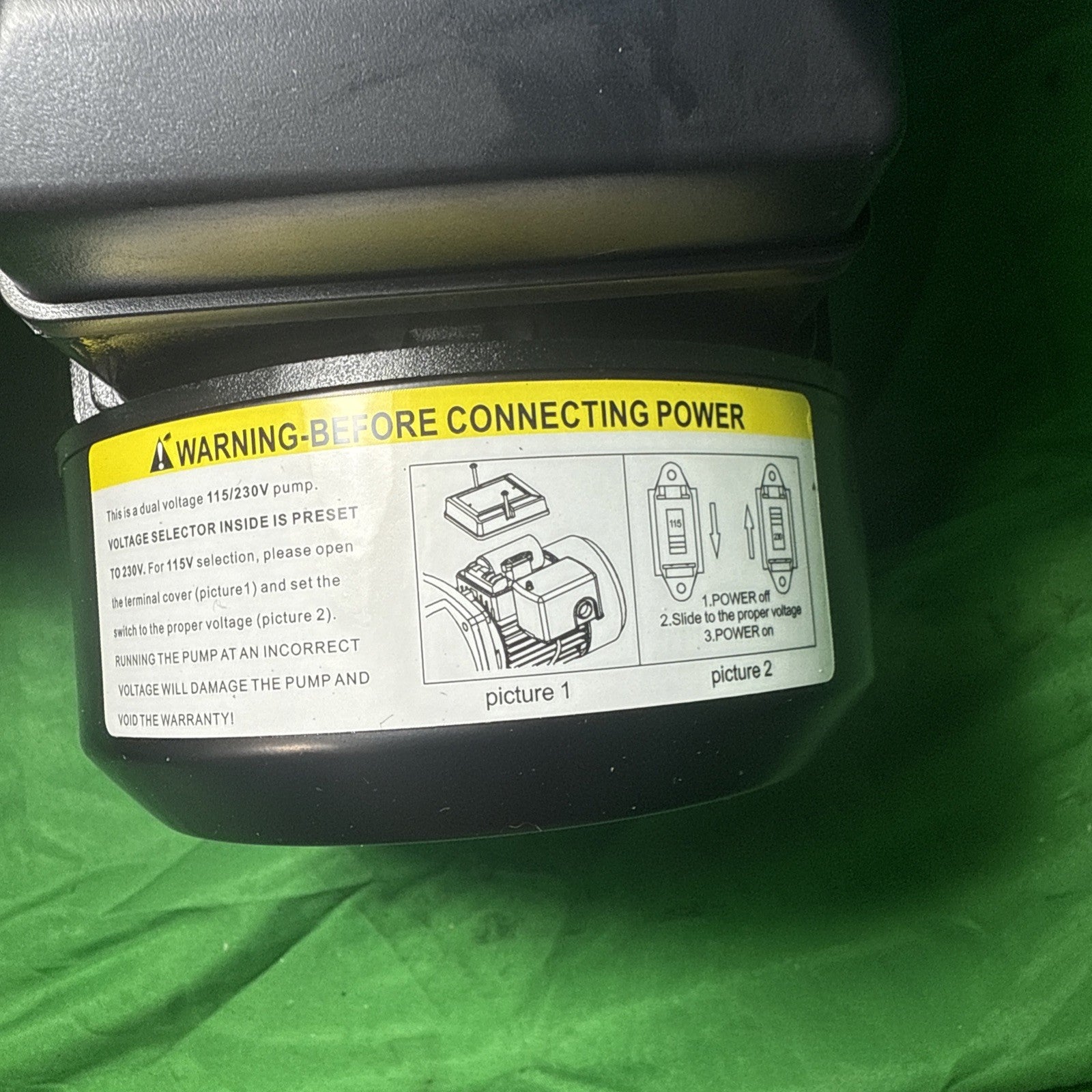

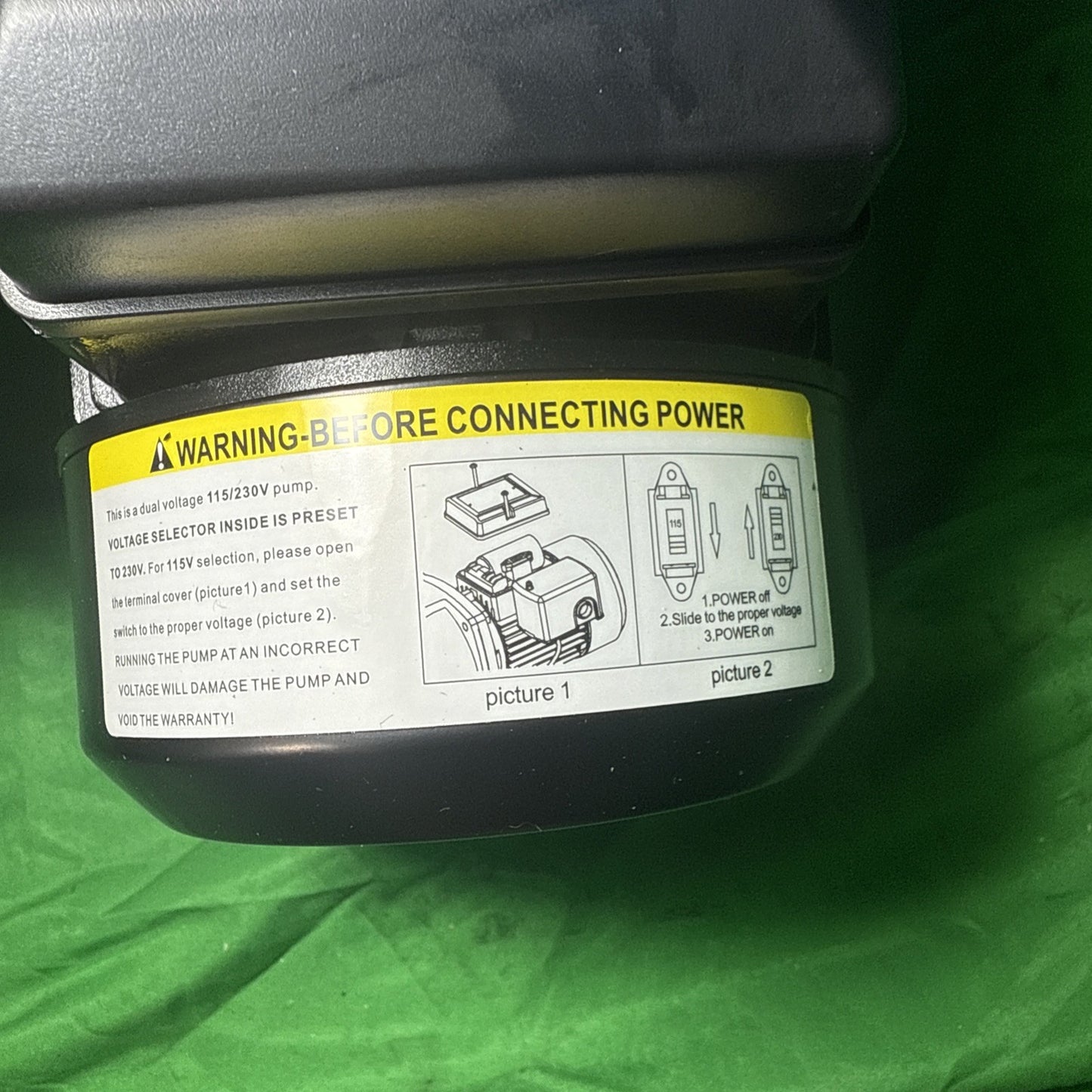

Voltage: 115v 230v
Certifications and Listings: CSA Certified
Manufacturer Warranty: 2-Years Warranty
Product Depth (in.): 15 in
Product Height (in.): 10 in
Product Width (in.): 9 in
